Help other Suncity Motorcycles users shop smarter by writing reviews for products you have purchased.

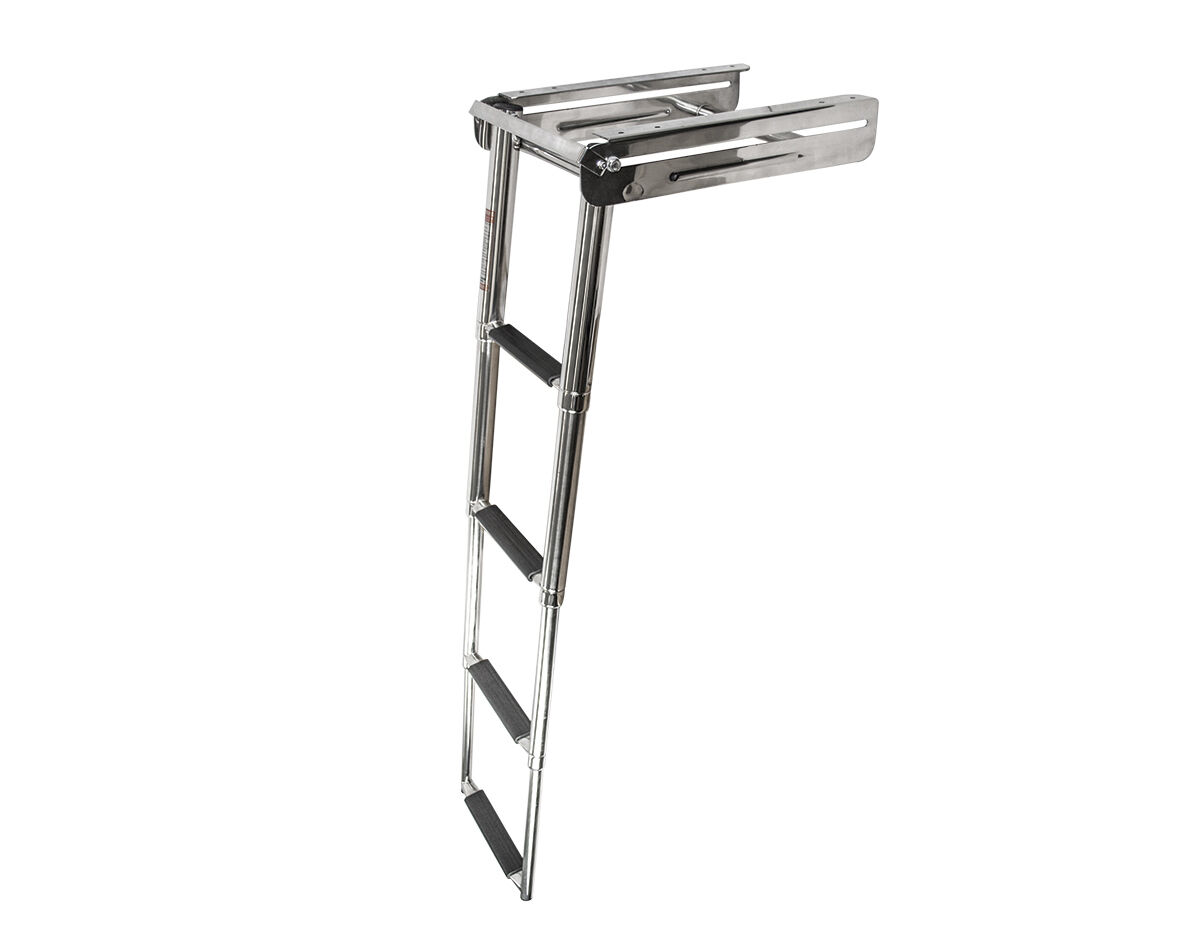

Write A ReviewThis space-saving retractable ladder is designed to be permanently mounted under a swim platform or in a recess. It is ideal if you want your swim/dive ladder to be tucked away & out of sight when not in use.

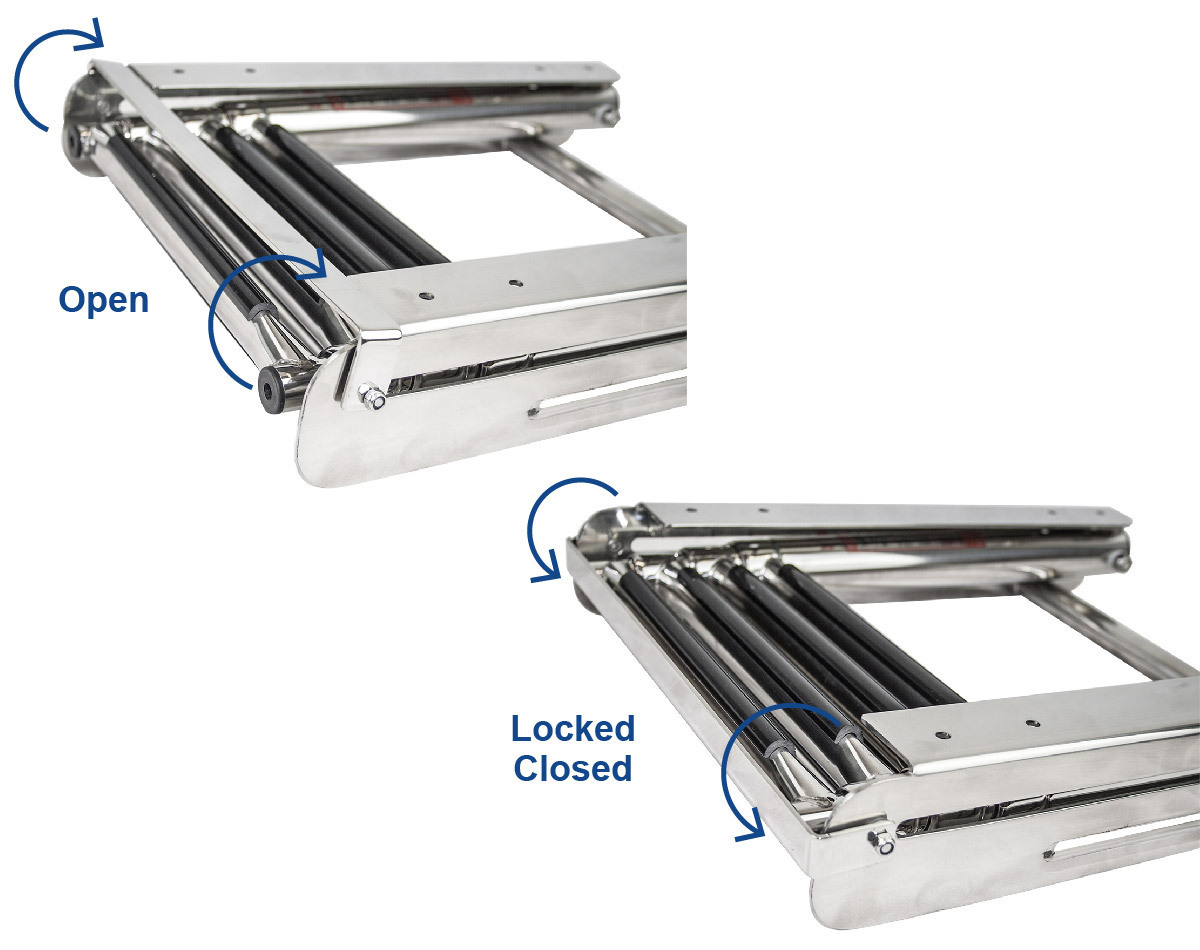

It features a moveable bracket at the front which can be flipped up and down. This allows you to secure the steps into place when not in use, preventing them from accidentally sliding out.
Features:
Replacement moulded ribbed nylon treads for rungs are available (see related products).

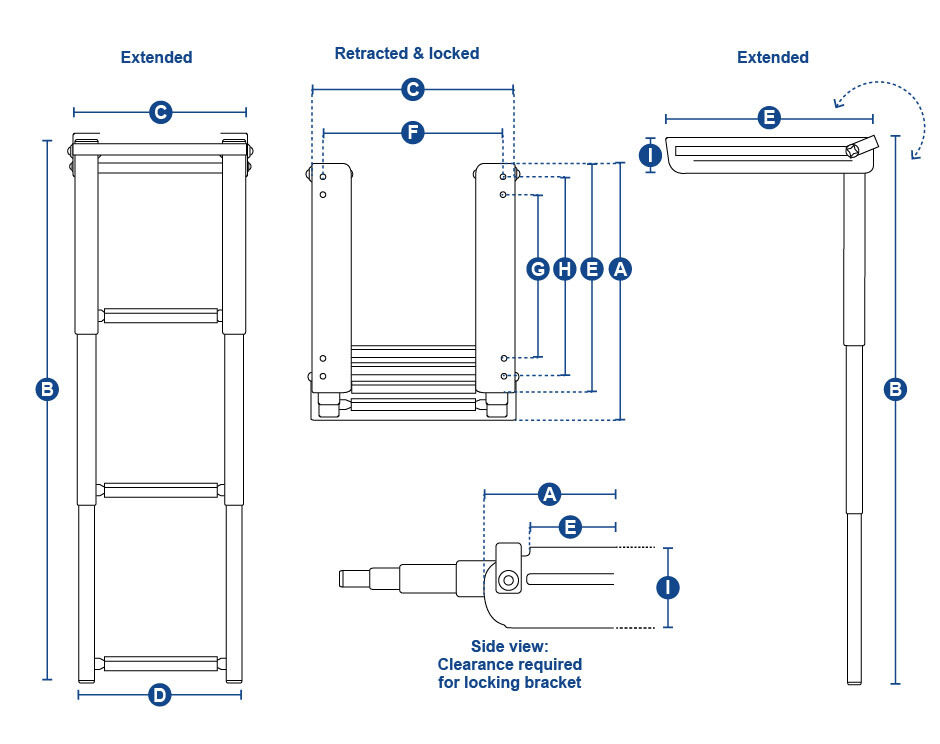

*Please note: Clearance must be made for the locking bracket to move freely. We recommend installing this ladder with the mounting bracket flush up to the edge of the platform. This means the ladder will stick out slightly from the platform, but will give plenty of room to move the locking bracket into place. See diagram for measurements.
| Type | Dimensions (mm) see diagram within images | ||||||||
| A | B | C | D | E | F | G | H | I | |
| 2-Step | 360 | 600 | 290 | 270 | 305 | 248 | 138 | 203 | 65 |
| 3-Step | 380 | 880 | 300 | 270 | 340 | 257 | 175 | 251 | 65 |
| 4-Step | 400 | 1160 | 300 | 270 | 370 | 260 | 225 | 317 | 75 |
| SKU | JPW-P-JPW6145 |
| Brand | JPW Marine |
