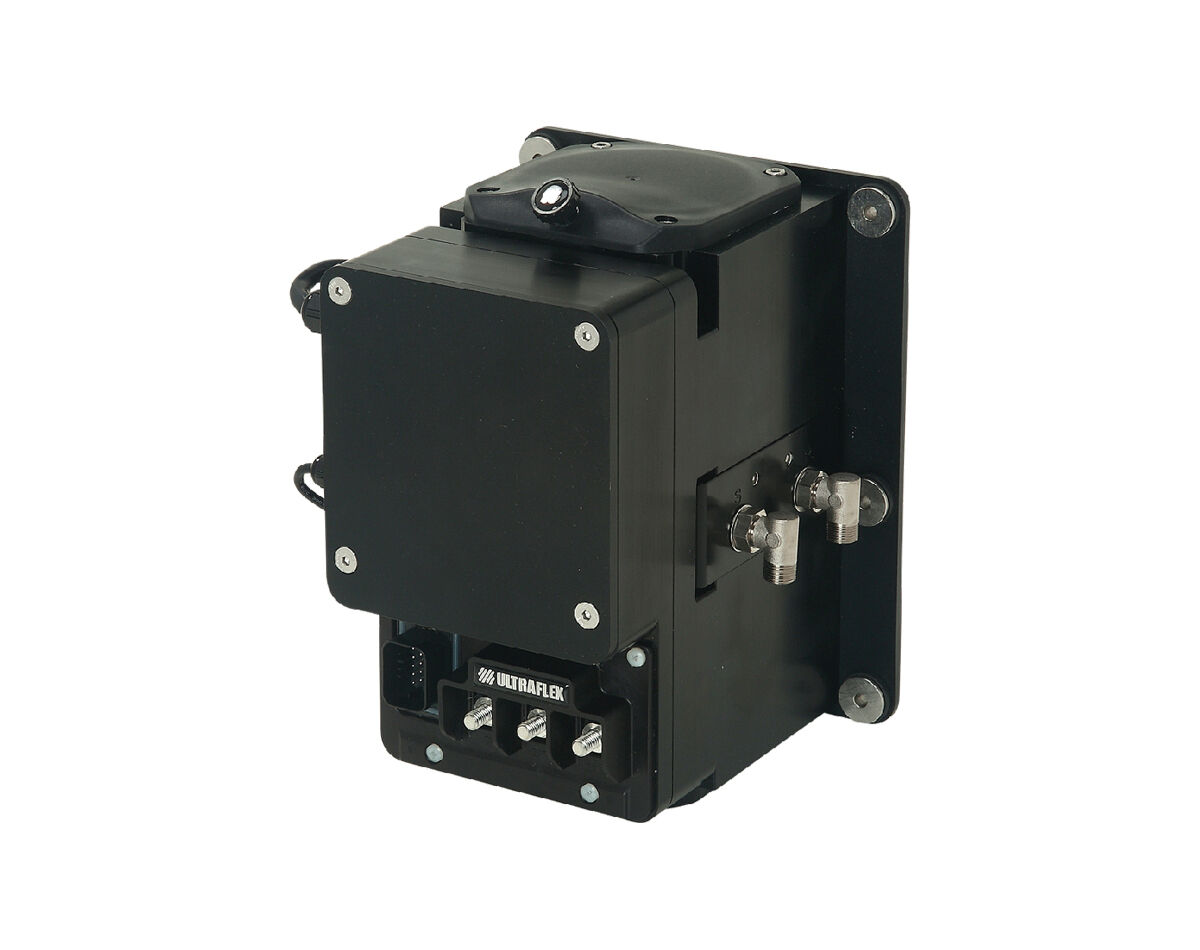

Compact Power Unit UIPC for Integra Electronic Power Steering Systems. 12 VDC brushless motor, high power with very short lead times for maximum reactivity.
Help other Suncity Motorcycles users shop smarter by writing reviews for products you have purchased.
Write A ReviewCompact Power Unit UIPC for Integra Electronic Power Steering Systems.
Features:
• 12 VDC brushless motor
• High power: very short lead times for maximum reactivity
• Embedded automatic power selector to manage the power supply from 2 batteries
• Can be installed anywhere on the boat
• 90° swiveling fittings for easy hose connection
• Tank: 0,3 litres (0.08 gal)
• Vented cap
• Marine anodized aluminum body
• Include the main connector with 1m communication cables
• Ignition Protected SAE J1171
| Operating Voltage | 10.8V - 14.4V |
|---|---|
| Average Current Draw | 2A |
| Temperature range | -25°C to +77°C |
| Nominal Voltage | 12VDC |
| Max Flow | 4.0L/min @ 50bar |
| Relief Valve | 105 bar / 1500 PSI |
| Pump Unit Motor | Brushless |
| Outboard Installations | single, dual, triple, quad |
| No. of Engines per Motor Pump Unit | up to 2 |
| Autopilot Direct Interface | Garmin & Raymarine |
| Nomative Conformities | ISO 25197, ISO 10592, ABYC P21, P24, P27 |
| Ignition Protected | SAE J1171 |
| SKU | JPW-JPW15642 |
| Brand | Ultraflex |
