Description

Suitable for outboard engines up to 250HP
Balanced: the number of turns lock-to-lock is equal port to starboard and vice versa
The UC128 cylinder is built to last with heavy duty stainless steel cylinder rod, seals and link assemblies
Constructed of top grade materials, this cylinder is simple to install and fits almost every 2 and 4 stroke outboard engine in the market
The UC128 cylinders are recommended for use with UP25-SVS, UP28-SVS, UP33-SVS and UP39-SVS series helms and pre-assembled hoses
Adjustable boss style fittings for easy installation
High resistance stainless steel connection bolt
In dual cylinder applications, it is necessary to order both Starboard and Port Side Cylinders

Volume	Output Force	Inside Diameter	Stroke	9.9mm Fittings	Bleed Fittings
120cc - 7.3 cubic inch	450kg	35mm	185mm	For high pressure flex hose	DN5 Quick Connect

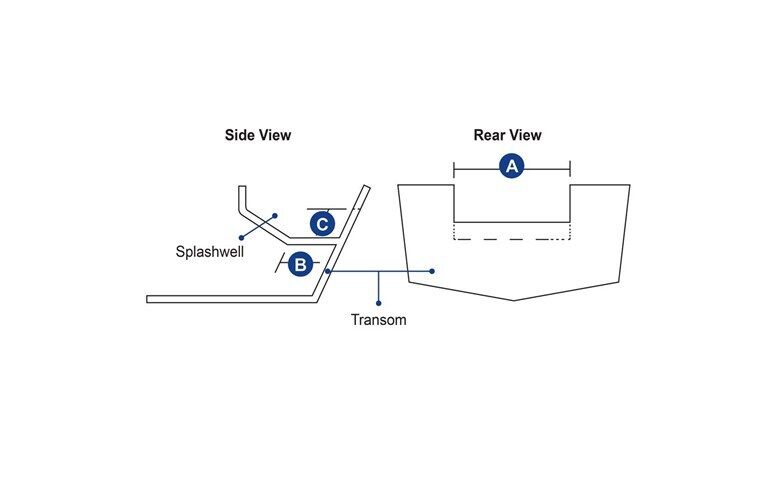

Splashwell Dimension Requirements
No. Of Engines	A (mm)	B (mm)	C (mm)
1	560	152	152
2 *	1110	152	152

* Note: For twin engine applications, the minimum distance between the two engine centres is 550mm.
