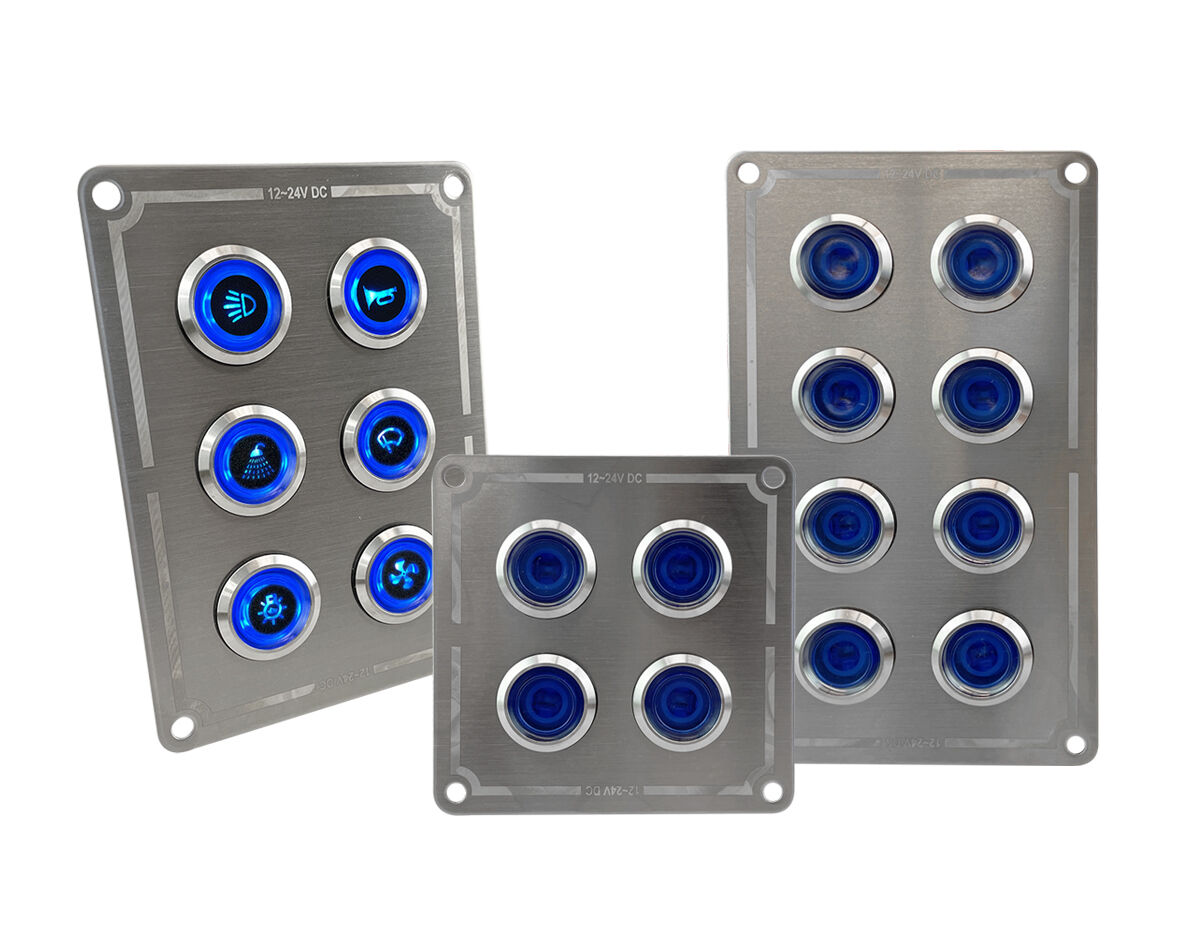

Write A ReviewThese sleek stainless steel switch panels feature pre-wired removable blue LED On/Off actuation push button switches.
The faceplates are made from 316-grade stainless steel and are highly polished to a mirror finish. The switches are rated at 10A 12-24V standard ON/OFF actuation, with a female non-terminated plug supplied for each switch and fuse holder/s.
These panels can be mounted horizontally or vertically with the 4 screws supplied, and include 100 various icon labels to clearly identify the switch function.
Additional LED switches can be purchased separately and swapped over to create panels with switches with red LEDs or Momentory ON/OFF actuation (see related products).
Features:
Note: These switches are not waterproof (see related products for water-resistant versions).

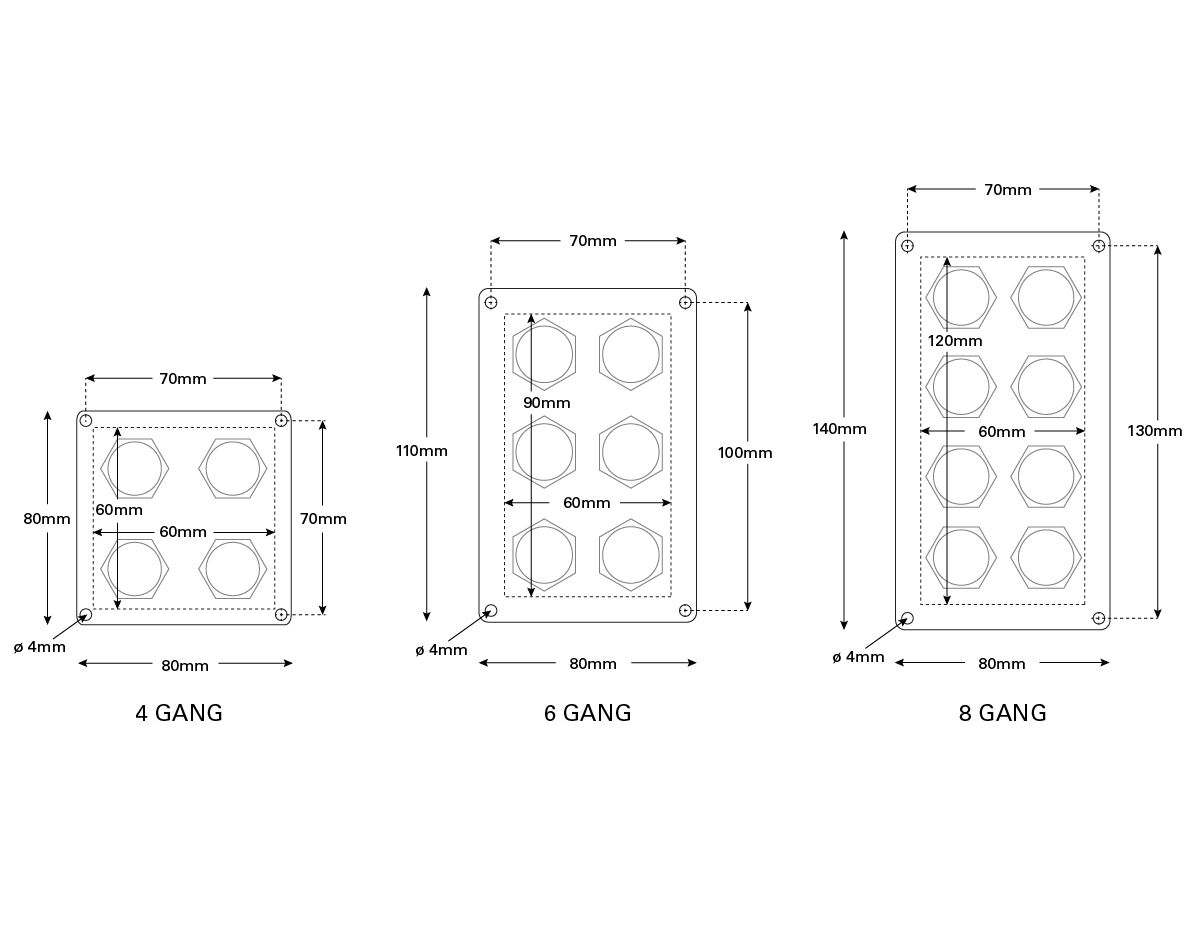

| JPW SKU | No. Switches | Fuse Holder | Overall Size (mm) | Cut-out Size (mm) |
|---|---|---|---|---|

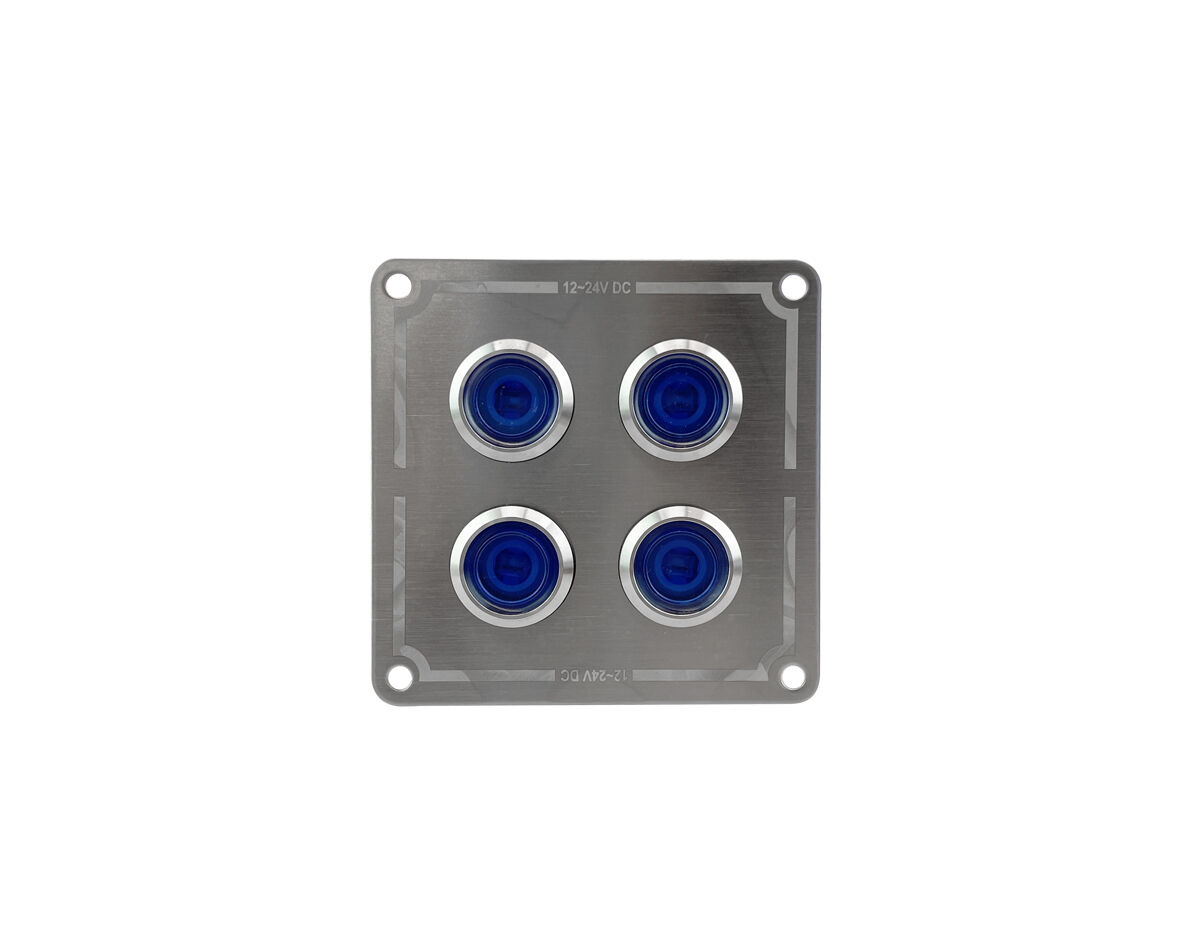

| JPW12926 | 4 gang | 2 x 15A | 80 x 80 | 60 x 60 |

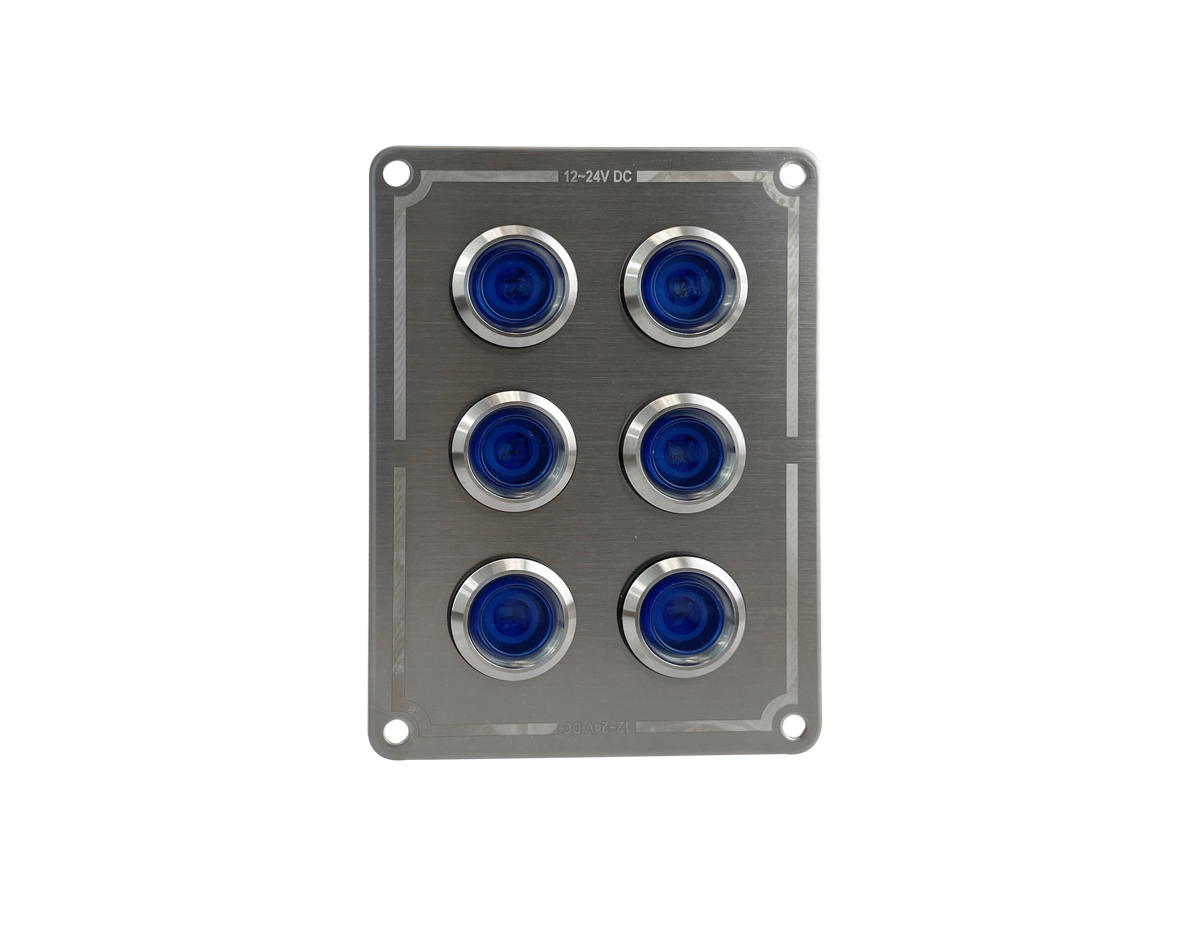

| JPW12927 | 6 gang | 3 x 15A | 110 x 80 | 90 x 60 |

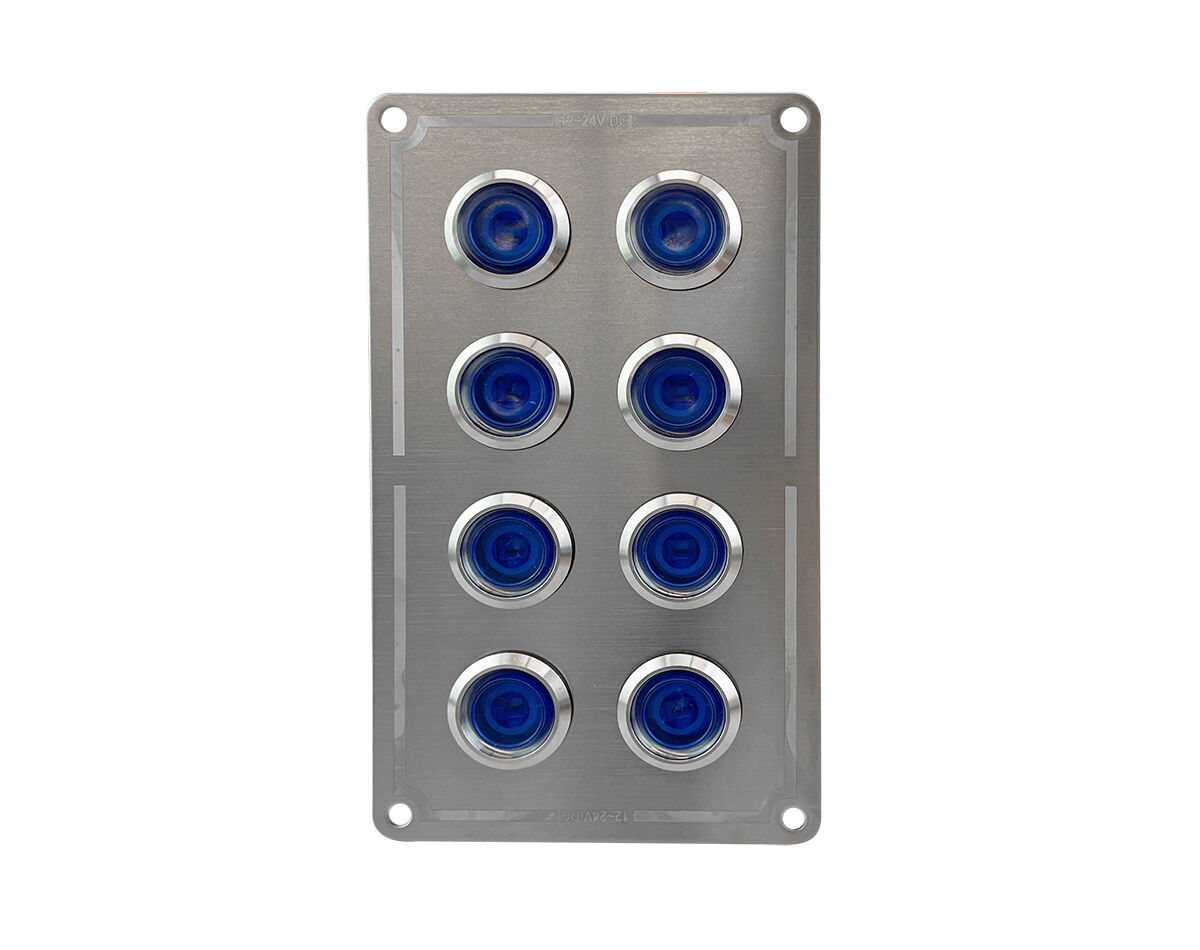

| JPW12928 | 8 gang | 4 x 15A | 140 x 80 | 120 x 60 |
| SKU | JPW-P-JPW12926 |
| Brand | JPW Marine |
