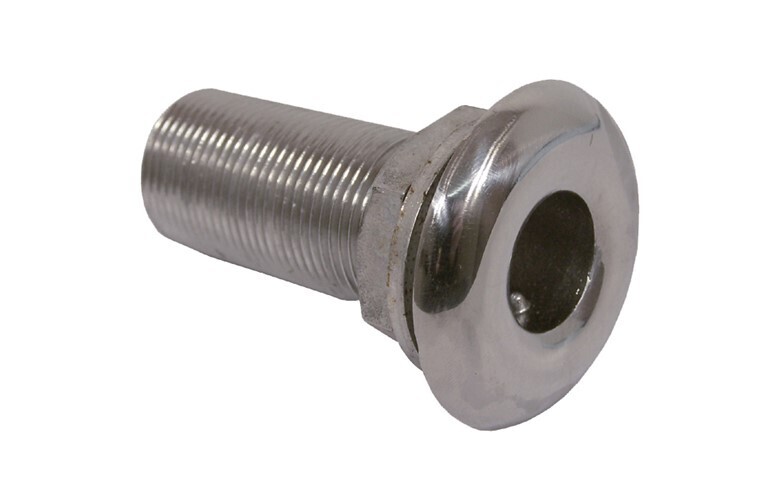

Nylon Skin Fitting Straight - Stainless Cap
From $16.18
$0.00
Help other Suncity Motorcycles users shop smarter by writing reviews for products you have purchased.
Write A ReviewSkin fitting with BSP thread to screw directly into a valve. Cast 316-grade stainless steel with lock nut washer included.
Size shown is BSP thread size.
Product Features:

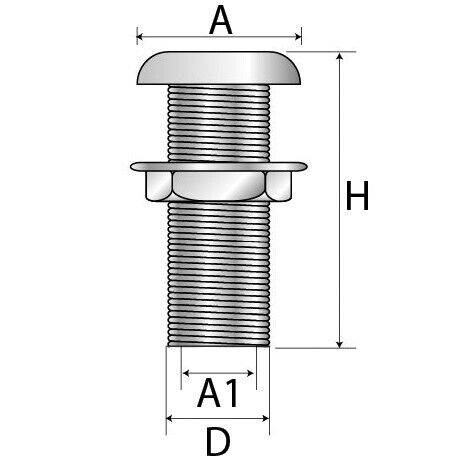

Thread BSP (in) | A (mm) | A1 (mm) | H (mm) | D (mm) |
---|---|---|---|---|
1/2 | 39 | 15 | 61 | 21 |
3/4 | 49 | 19 | 70 | 26.5 |
1 | 54 | 25 | 72 | 33.3 |
1-1/4 | 63 | 34 | 78 | 42 |
1-1/2 | 70 | 38 | 79 | 47.5 |
2 | 84 | 51 | 95 | 59.5 |
SKU | JPW-P-JPW1843 |
Brand | JPW Marine |
