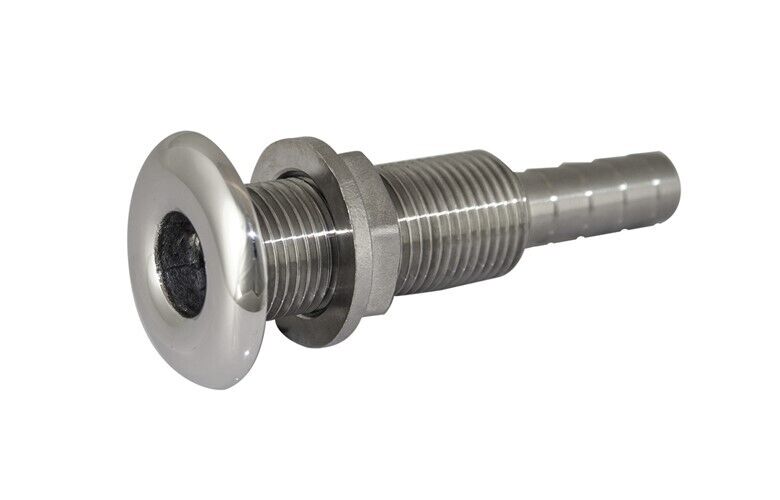

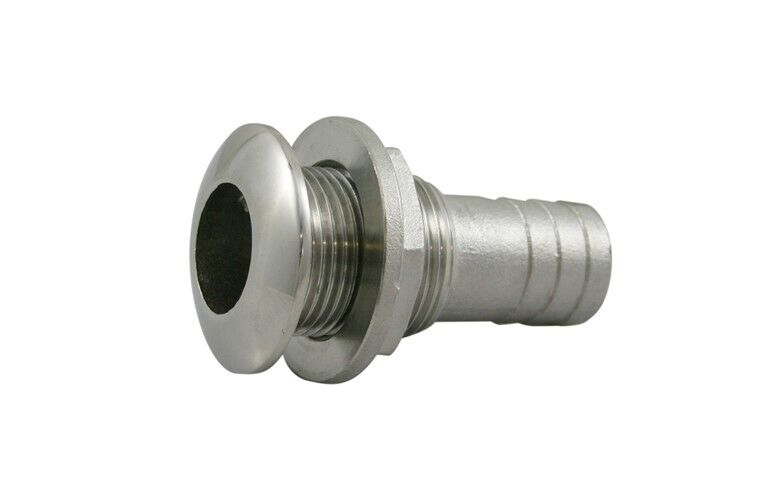

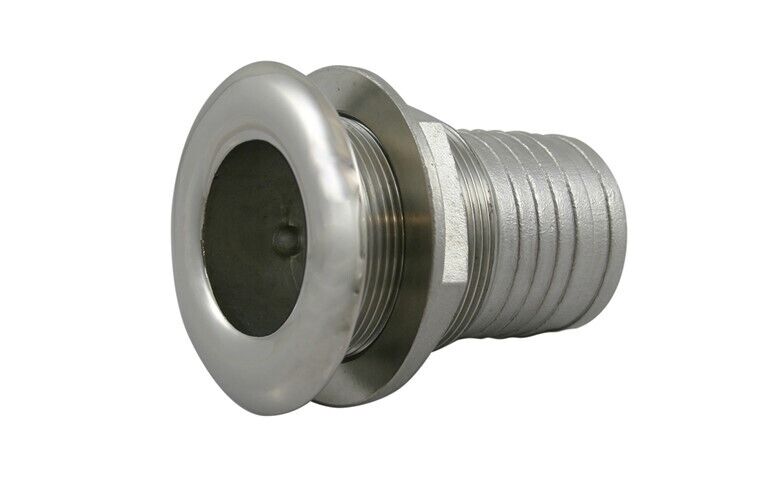

Write A ReviewSkin fitting with hose tail end to connect directly to hose. Cast 316-grade stainless steel with lock nut washer included.
Sizes shown is the size of the internal diameter of hose the skin fitting will suit.
Features:

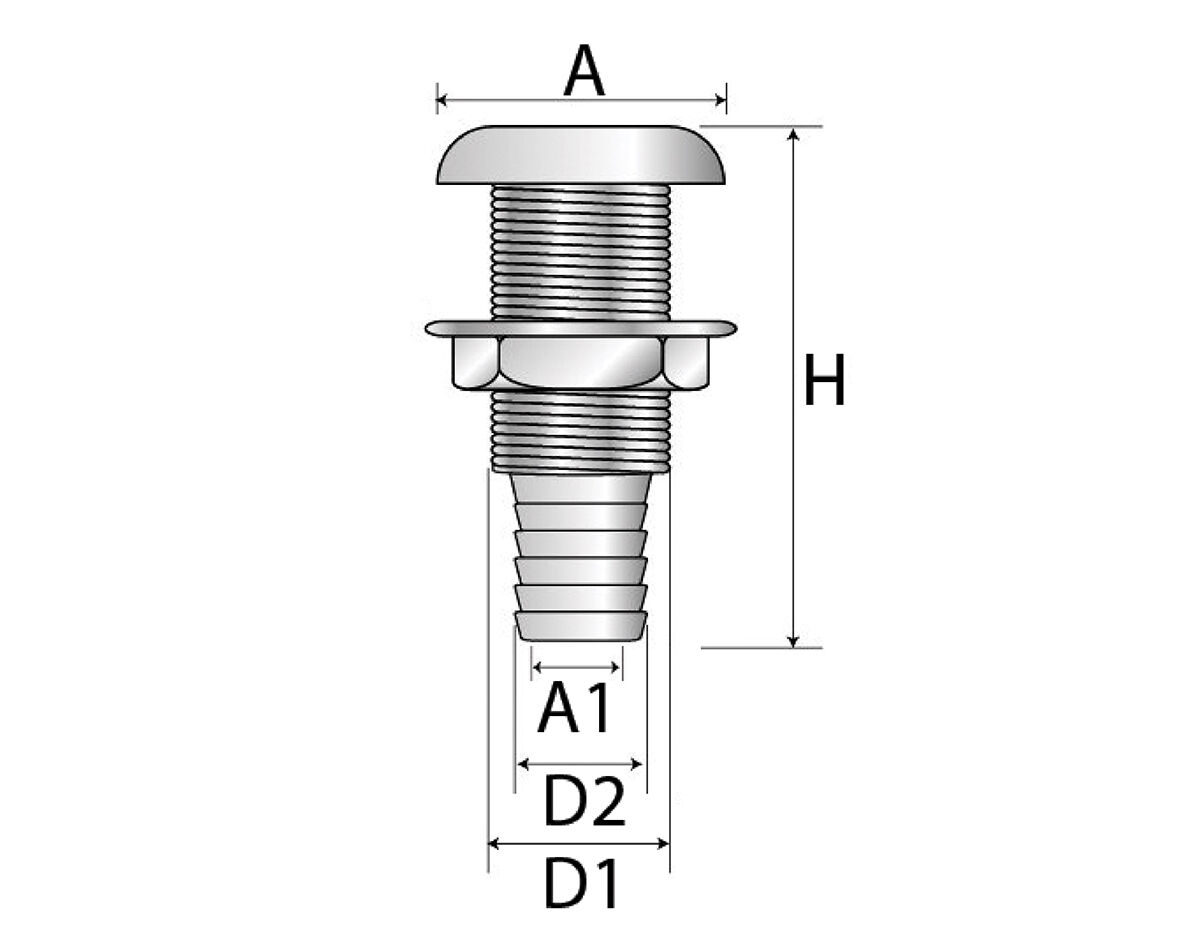

| JPW SKU | Thread BSP (in) | A (mm) | A1 (mm) | H (mm) | D1 (mm) | D2 (mm) |
|---|---|---|---|---|---|---|
| JPW1858 | 3/8" | 35 | 7.5 | 57 | 16 | 12 |
| JPW1859 | 1/2" | 38 | 16 | 62 | 27 | 19 |
| JPW1860 | 3/4" | 50 | 21 | 74 | 33 | 25 |
| JPW1864 | 3/4" | 50 | 22 | 74 | 33 | 28 |
| JPW1861 | 1" | 55 | 26 | 80 | 42 | 32 |
| JPW1862 | 1 1/4" | 64 | 34 | 83 | 42 | 38 |
| JPW1863 | 1 1/2" | 84 | 50 | 100 | 58 | 50 |
| SKU | JPW-P-JPW1858 |
| Brand | JPW Marine |
