Write A ReviewFinally a high quality and powerful trailer winch has been designed and built with the purpose task of winching boats and vehicles onto trailers. Not only is this winch fast and strong, but it also comes with some exciting features which set it apart from anything else on the market.
This winch has been custom designed and built essentially for one operation, winching boats onto trailers. For years the world has been putting up with cheap and nasty Chinese winches which probably work for a small tinny, however quickly fail if your boat is a decent size and weight. Any half decent winches out there on the market are slow and just don't deliver value for money.
Sherpa 4x4 have used their extensive knowledge of the winch and hoisting industry to build a task specific boat trailer winch. This winch is different to anything else on the market and will outperform the competition. Designed to rival the homemade winches you sometimes see professional fisherman using with starter motors and large flywheels, the Sherpa winch delivers similar high performance from a compact, safe and low maintenance design.
Features:
Motor: A 6hp series wound heavy duty motor is used to drive the winch. Using a large oversized motor means the winch is hardly working and therefore runs cooler and as a result lasts longer. Yes for a large motor you need large cables, however this is covered and the winch is supplied with a wiring kit which allows a good power supply from your vehicles engine bay to the rear of your vehicle, through a high amperage plug and into your winch.
Tough & Durable: The tooling from the Sherpa 4x4 winches has been reused meaning you are getting the strength and build quality from a proven quality offroad winch in a boat trailer winch. Sherpa use aluminum winch bodies making their winches lighter and resistance to corrosion without sacrificing strength.
Braking Design: Sherpa winches are known for their superior brake designs with their 4x4 winches housing the brake in the gearbox. For the boat trailer winch a completely new design has been incorporated and now the brake is moved to the motor. The brake design is electric meaning the brake is released when you 'winch in' or 'winch out', however activates as soon as you release the button. This design makes for a very strong and fully controlled winch brake design and it is well suited to the operating environments of boat trailer winches.
Quality gearbox: A new gearbox ratio has been designed and built specifically to optimise the boat trailer winches operation. These are high quality cut gears not sintered steel like your cheap winches. The selected ratio is a good balance between speed, pulling power and balancing amperage draw.
Electrics: Sherpa only use the highest quality genuine Albright solenoids across their full range of winches and this has been continued in their boat trailer winch. Customers demand reliability and performance and Albright deliver with the electrical components on this winch. Sherpa winches are IP68 rated.
Powerful: This HP model is geared low and slow with even more power. It is designed for boats weighing 4,500-9,000 kg or for people dragging big boats onto trailers without rollers.
Simplicity: The Sherpa boat trailer winches are supplied with everything needed to mount and wire the winch at home. Whilst we recommend the services of a auto-electrical to safely run the cables, instructions and components are supplied in the box to make installation a breeze. Generous cabling is supplied in the box to suit large 4x4's such as the 200 series Landcruiser however longer cabling can be provided on request for larger American style of trucks.
Warranty and Parts: 5 Year warranty. A complete range of spare parts are also available in Australia if ever required.
Troubleshooting: Please see the Sherpa Winch Troubleshooting Guide under the "Downloads" tab.
| Rating: | HP model - Boats 4,500 kg to 9,000 kg |
|---|---|
| Vertical Lift Capacity: | HP model - 7,200 kg (17,000lb) |
| Motor: | 6.6hp series wound (12V or 24V) |
| Gears: | Power In, Power Out and free spool |
| Gear reduction ratio: | 3 stage planetary gearbox |
| Rope/Cable: | 10m of heavy duty 50mm webbing strap rated to 11,000lb |
| Mounting Bolt Diameter: | 11.2mm |
| Drum Size (Dia x Length): | 64mm x 50mm |

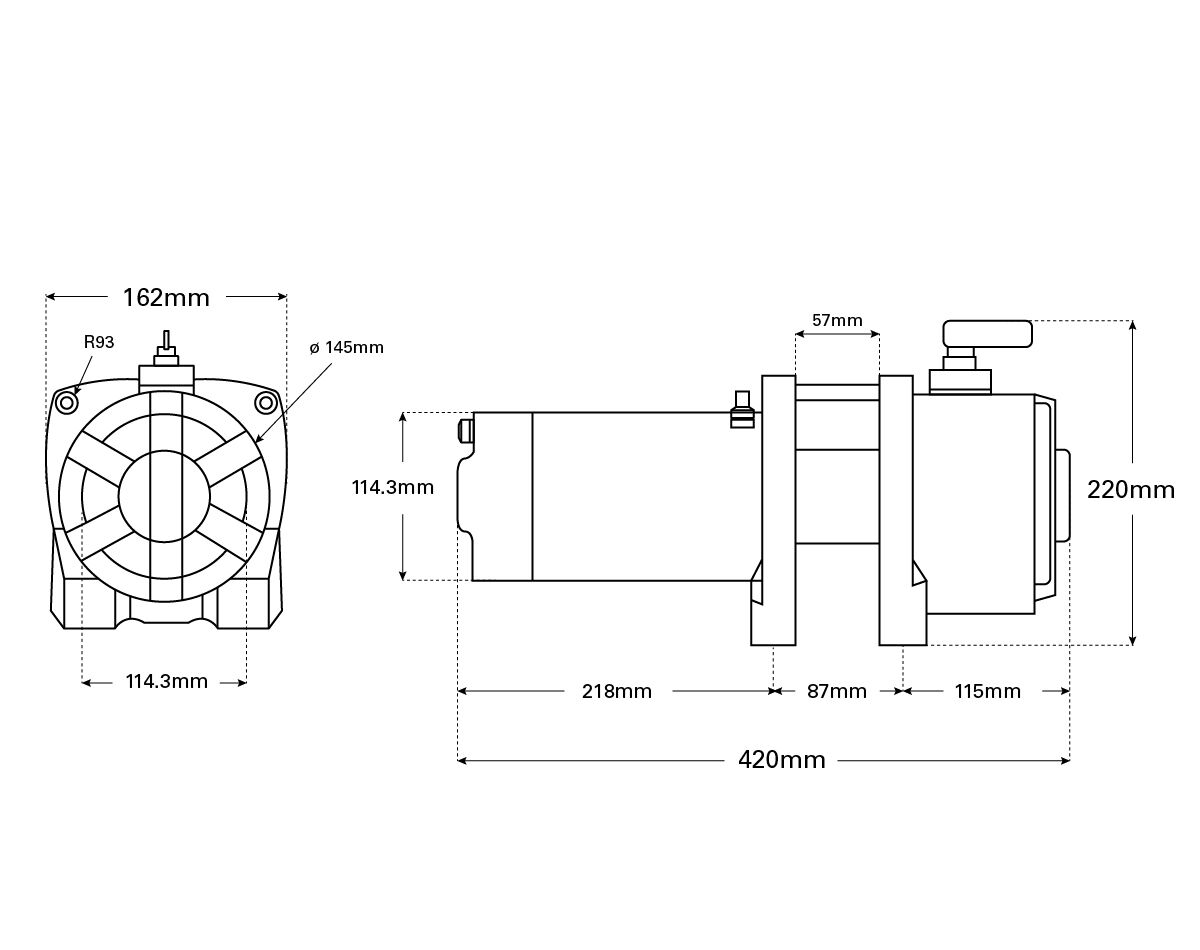

| Mounting Bolt Pattern: | 87mm x 114.3mm |
| Weight: | ~25kg |
| Clutch: | 180 degree turn, free spooling, slide ring gear |
| Brake: | Electric in motor |
| Solenoid: | Albright International Heavy Duty 800 amp mounted in control box |
| Duty Cycle: | Intermittent |

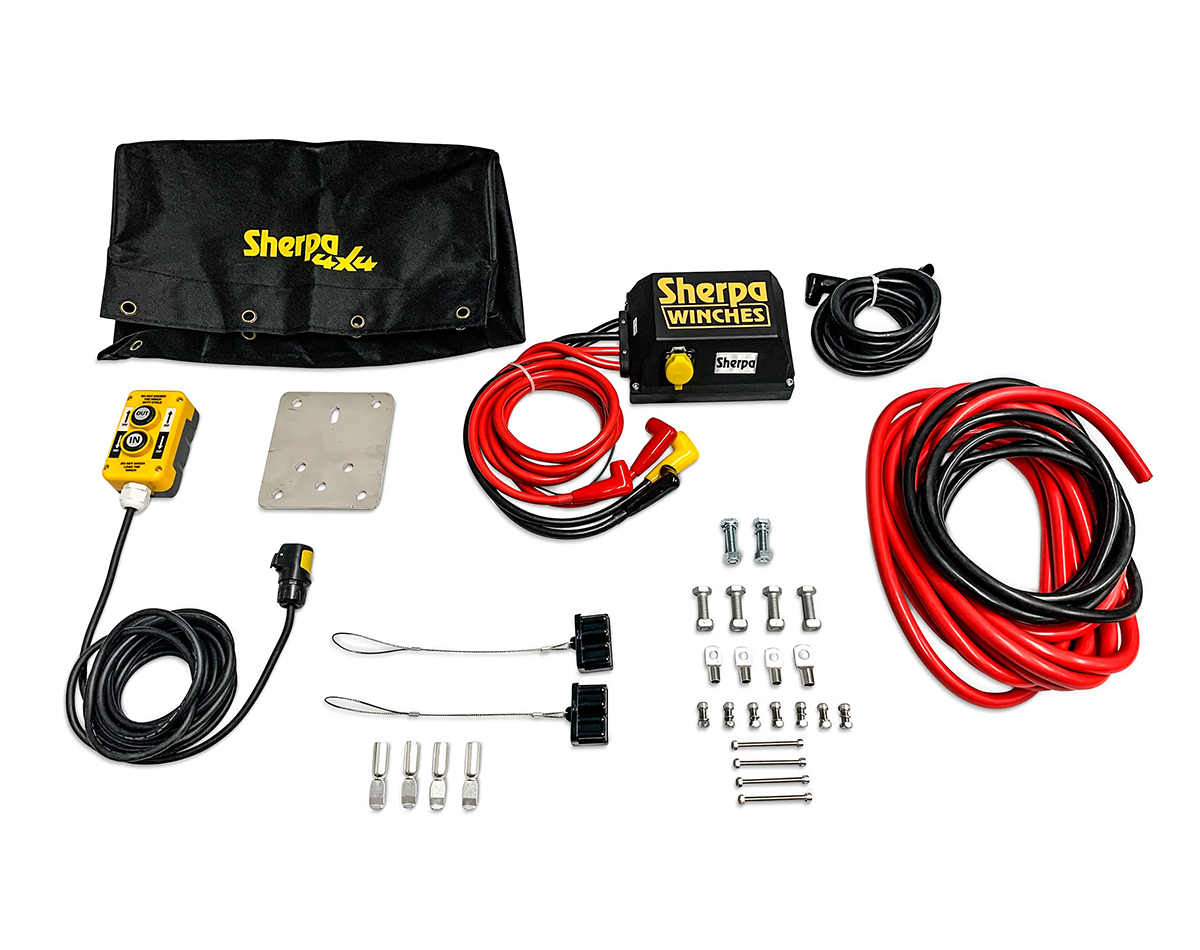

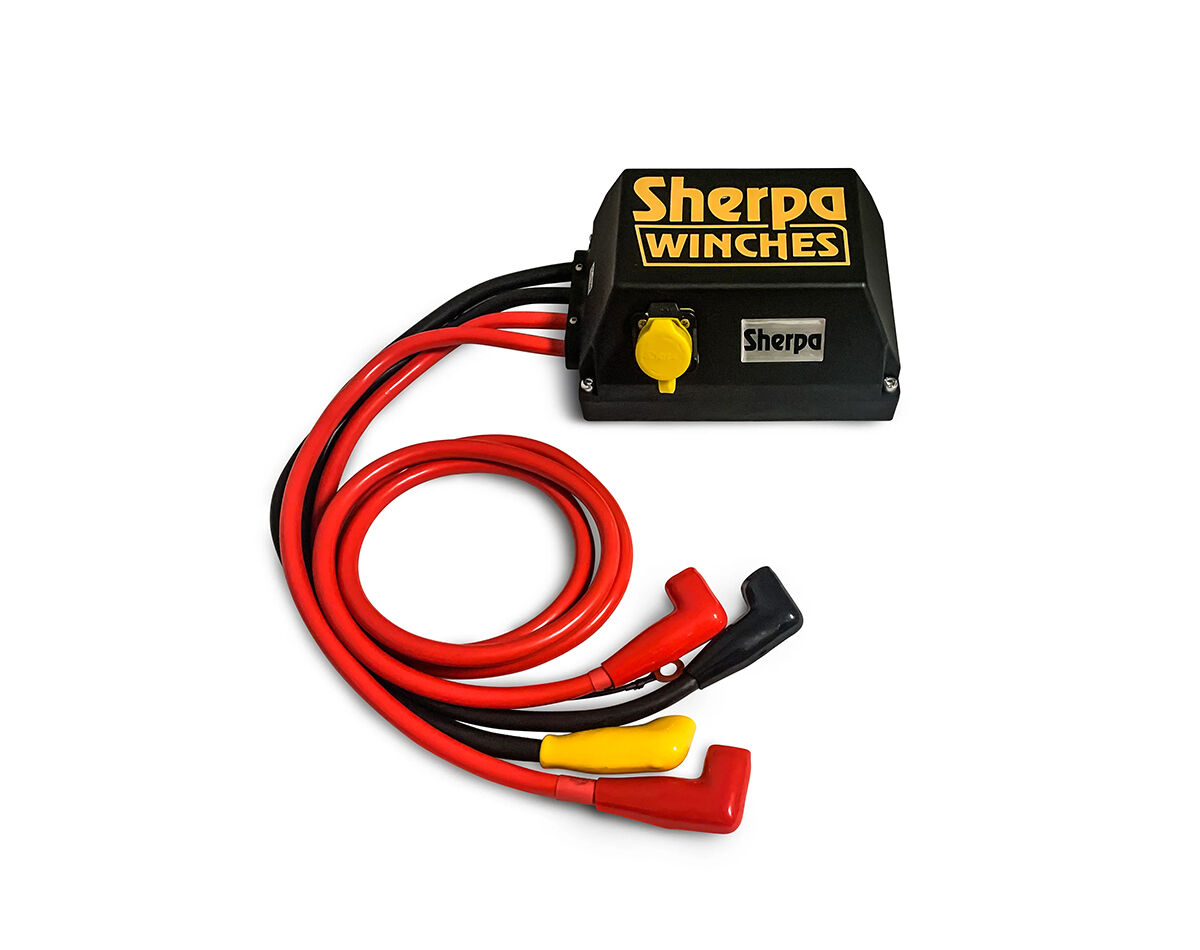

| Inclusions: | • Ample electrical cable to run from engine bay to tow bar. • Heavy duty plug set from vehicle to trailer • Control Box • Waterproof wired hand remote • Winch and control box mounting hardware and brackets |
| Water Ingress Rating: | IP68 |
| Warranty: | 5 Years |
| SKU | JPW-P-JPW6458 |
| Brand | Sherpa Winches |
In-stock items and stock levels are subject to continuous change. We will contact you if a stock error has occurred. Stock located at our Warehouse may require an additional 1-4 business days processing time on top of our standard order processing time before being dispatched. We always aim to ensure that you receive your orders as quickly and as safely as possible.
