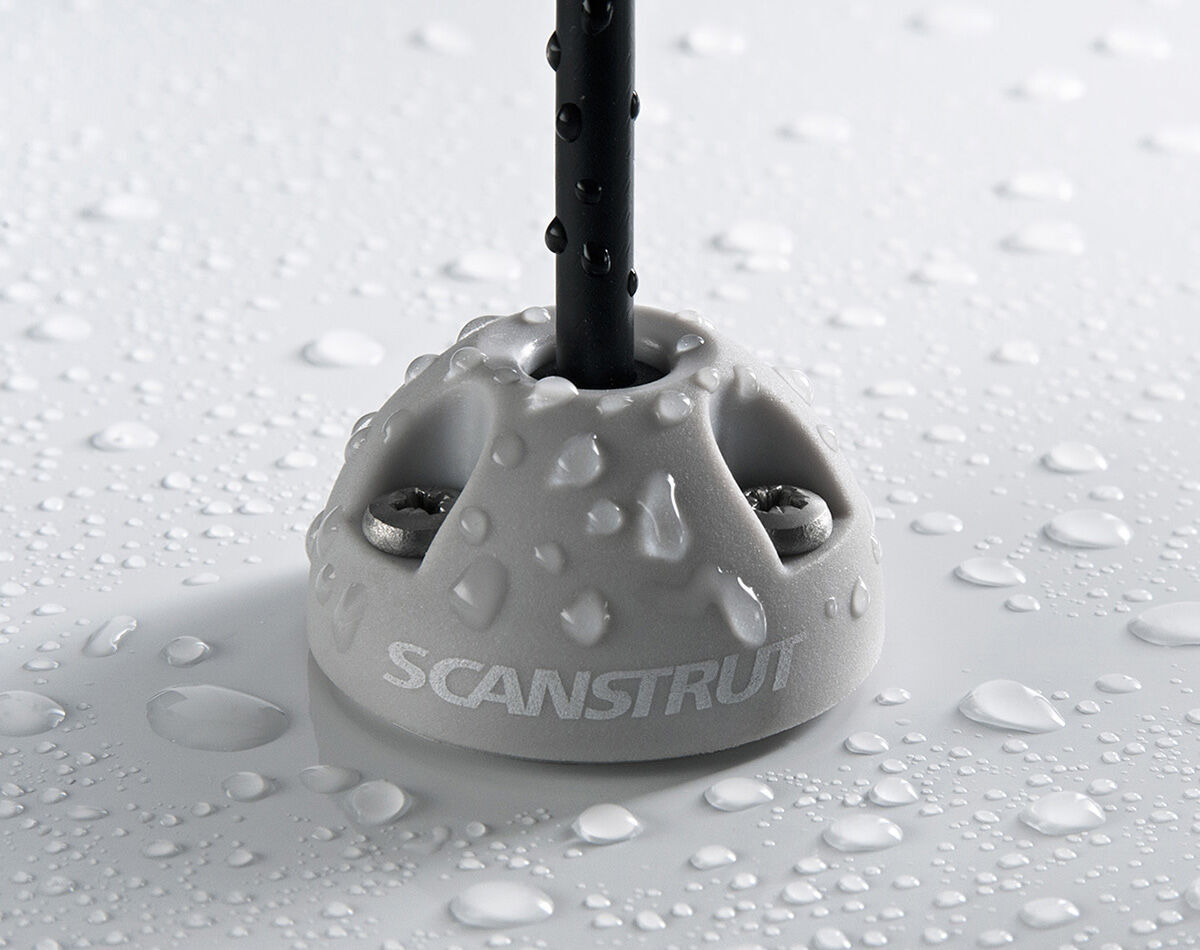

Write A ReviewThis premium waterproof range of cable seals provide easy fit cable routing that cuts down your installation time.

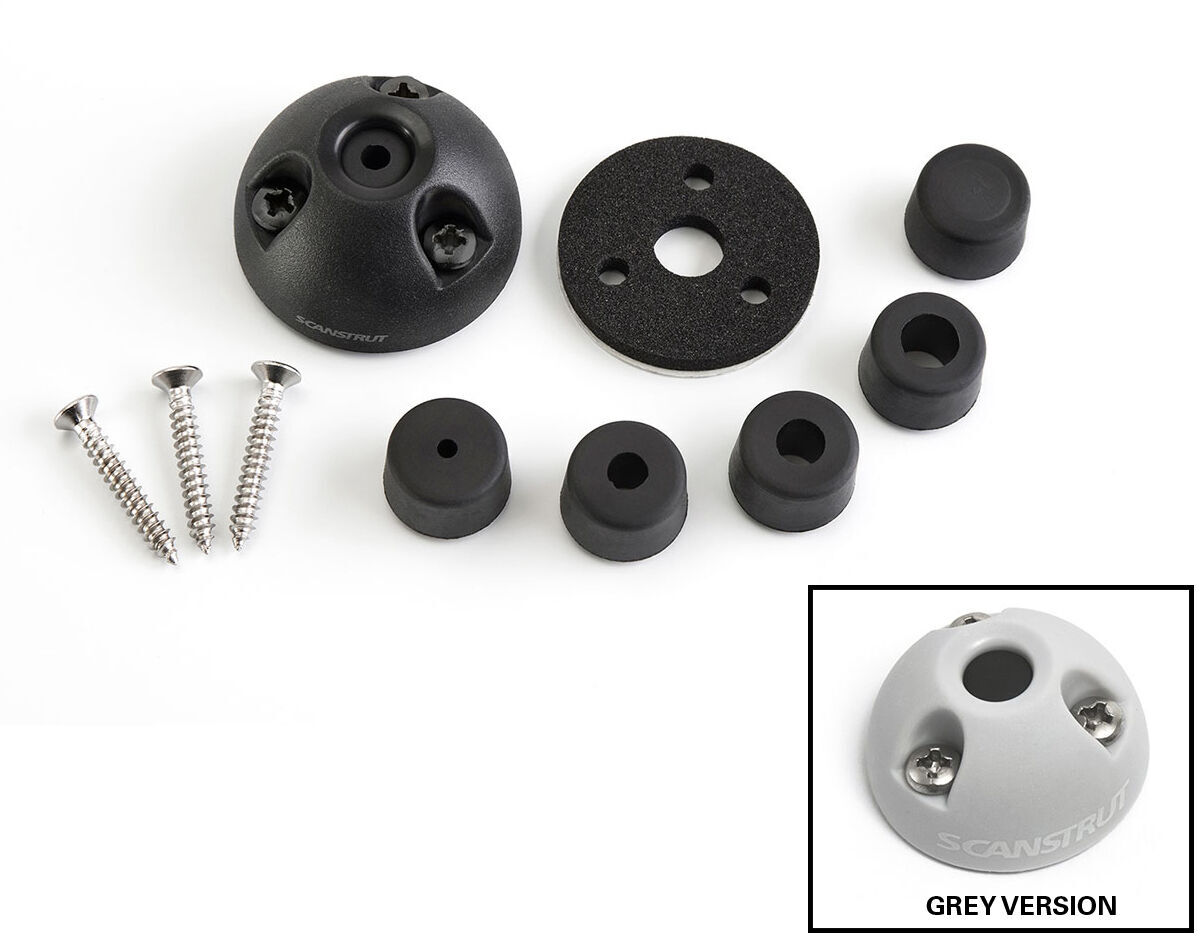

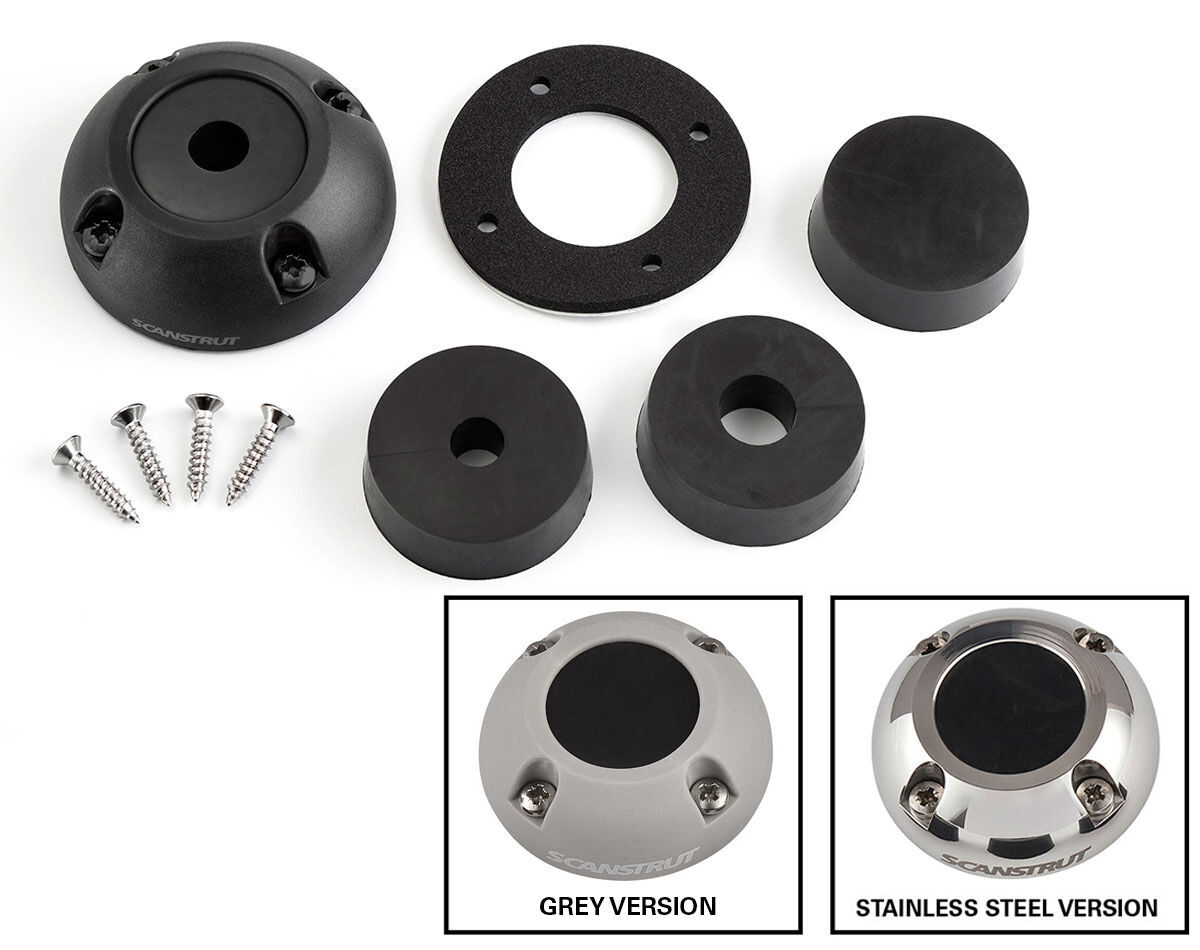

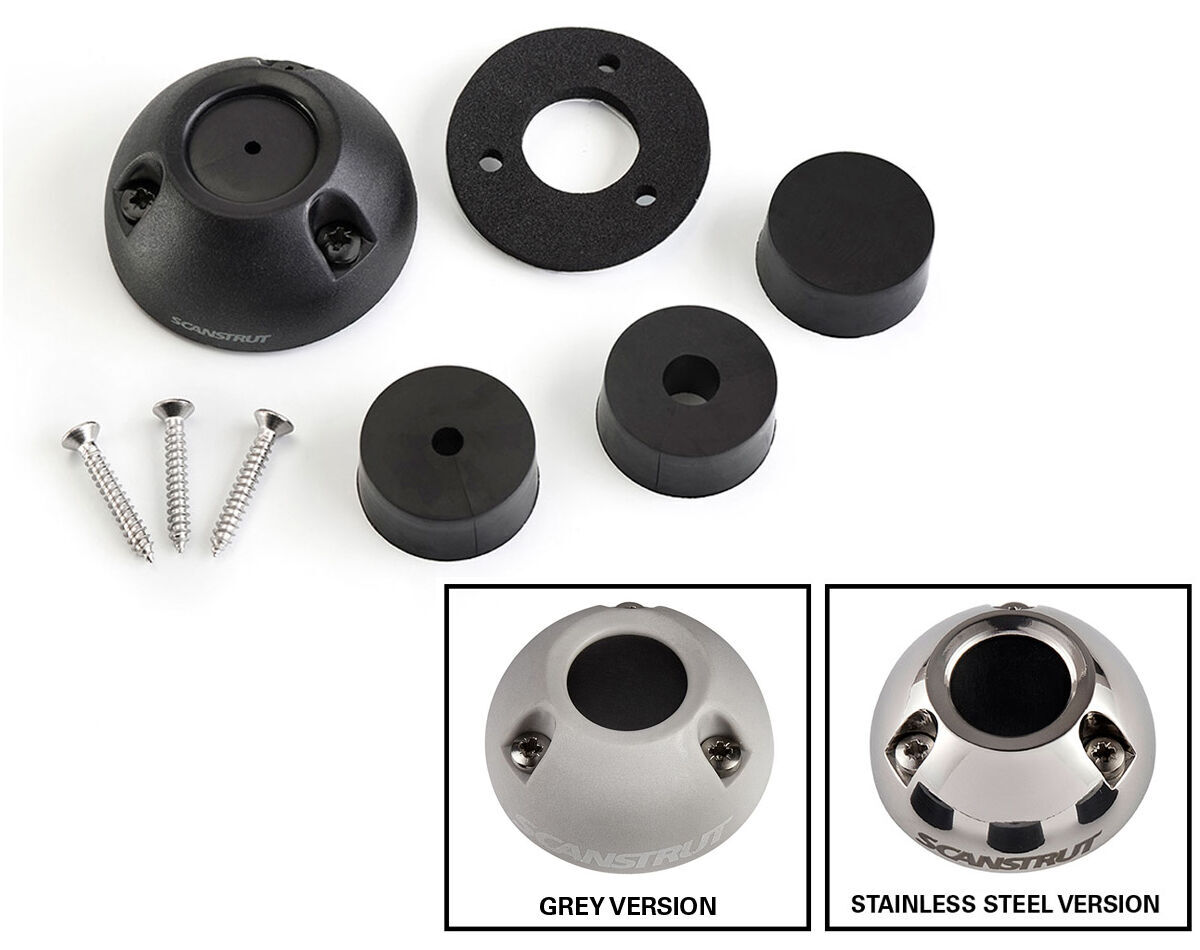

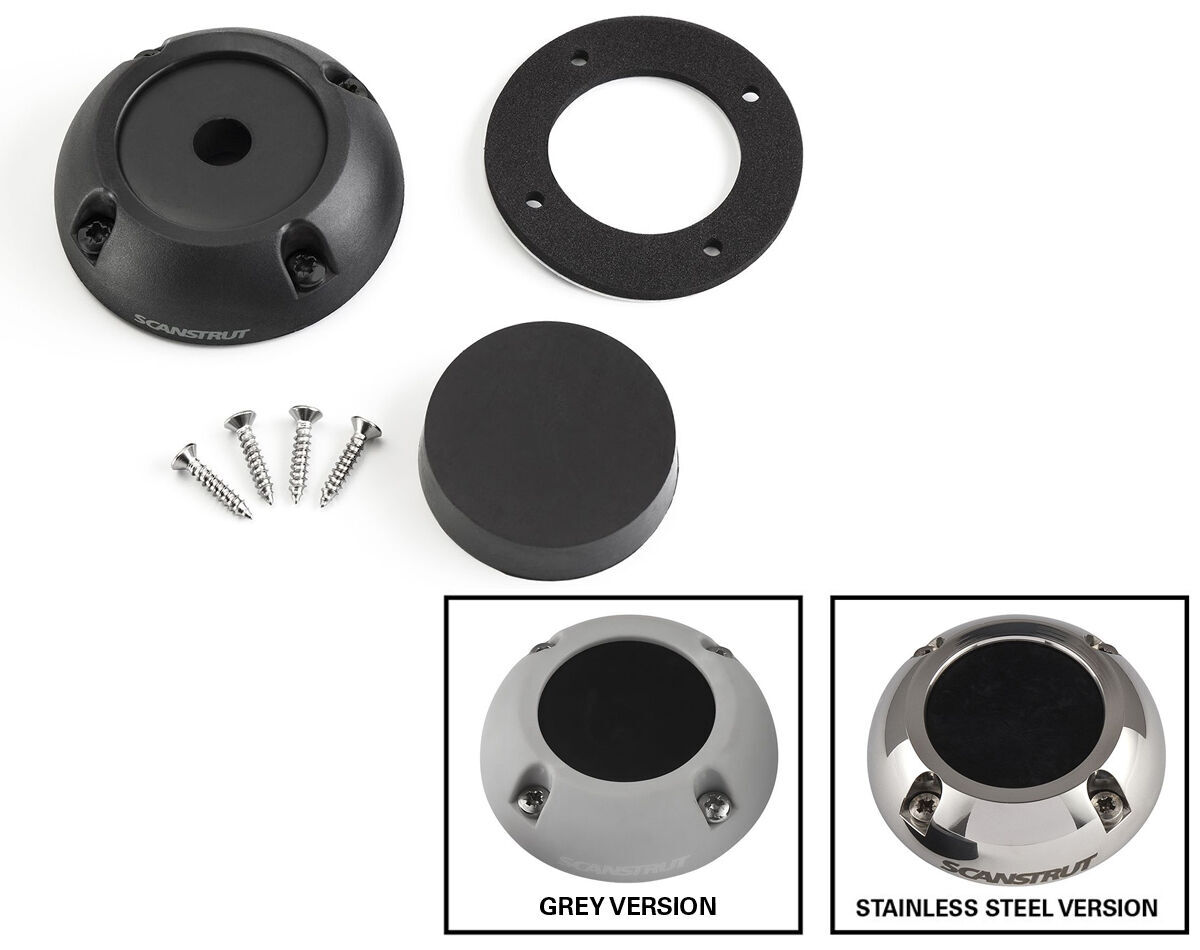

Each unit supplied with both pre-drilled inner seals to suit specific sized cables, and blank bungs so you can cut them to fit your cable perfectly, creating the watertight seal. Simply select the unit that is large enough for your connector/plug to fit through.

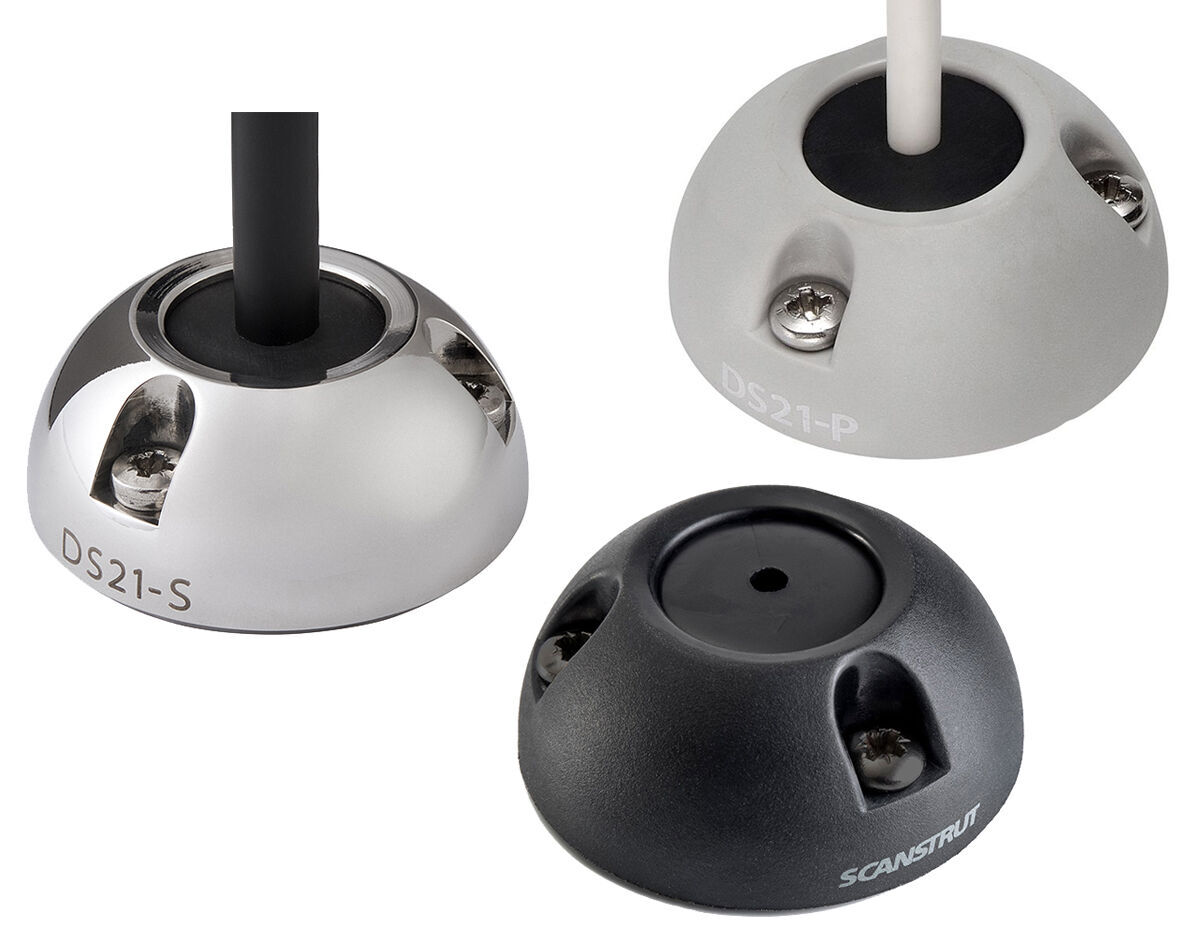

The aesthetic dome-shaped profile provides a stronger, impact-resistant design and outer dome provides additional water shield. Captive nuts make for easy assembly and also allow reliable repeat installations.

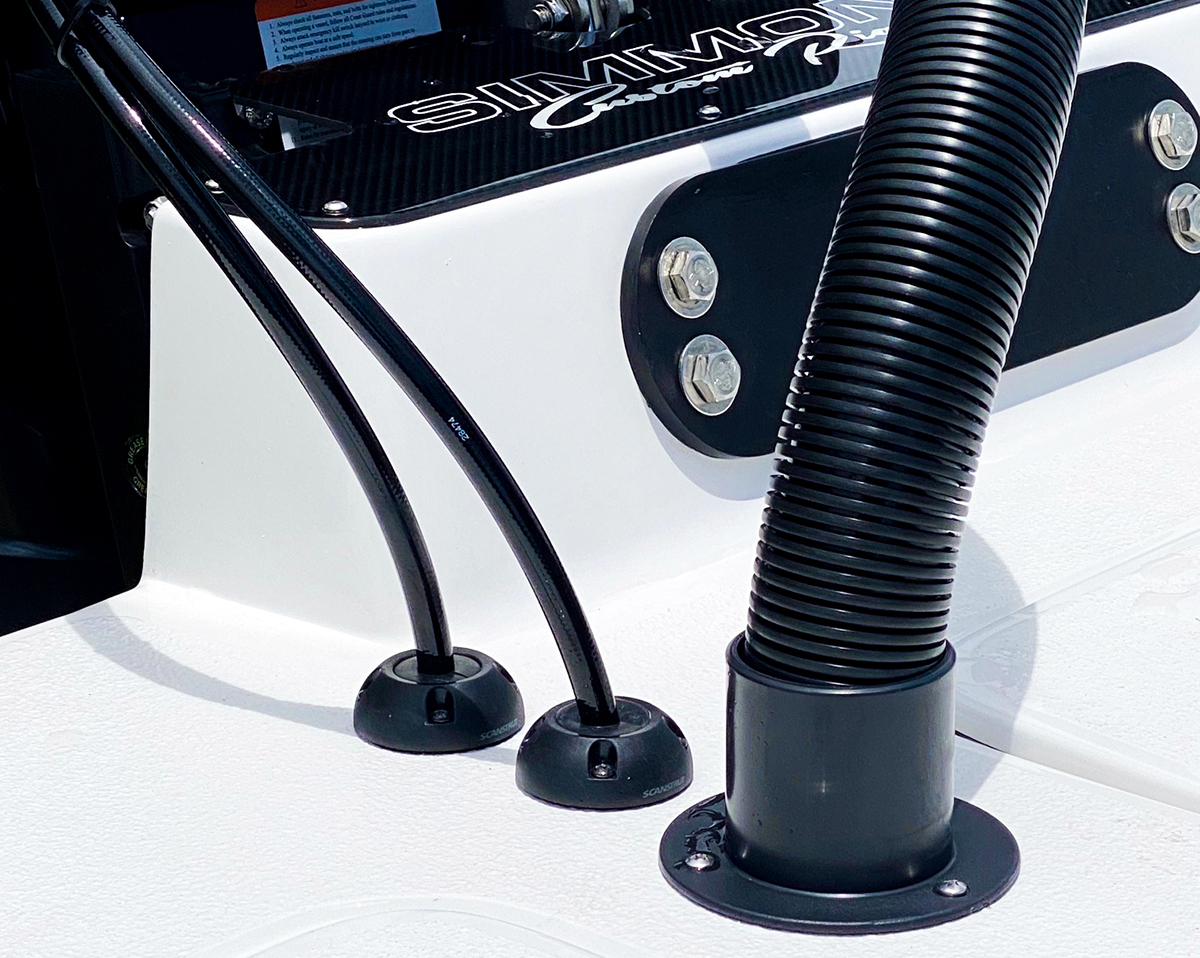

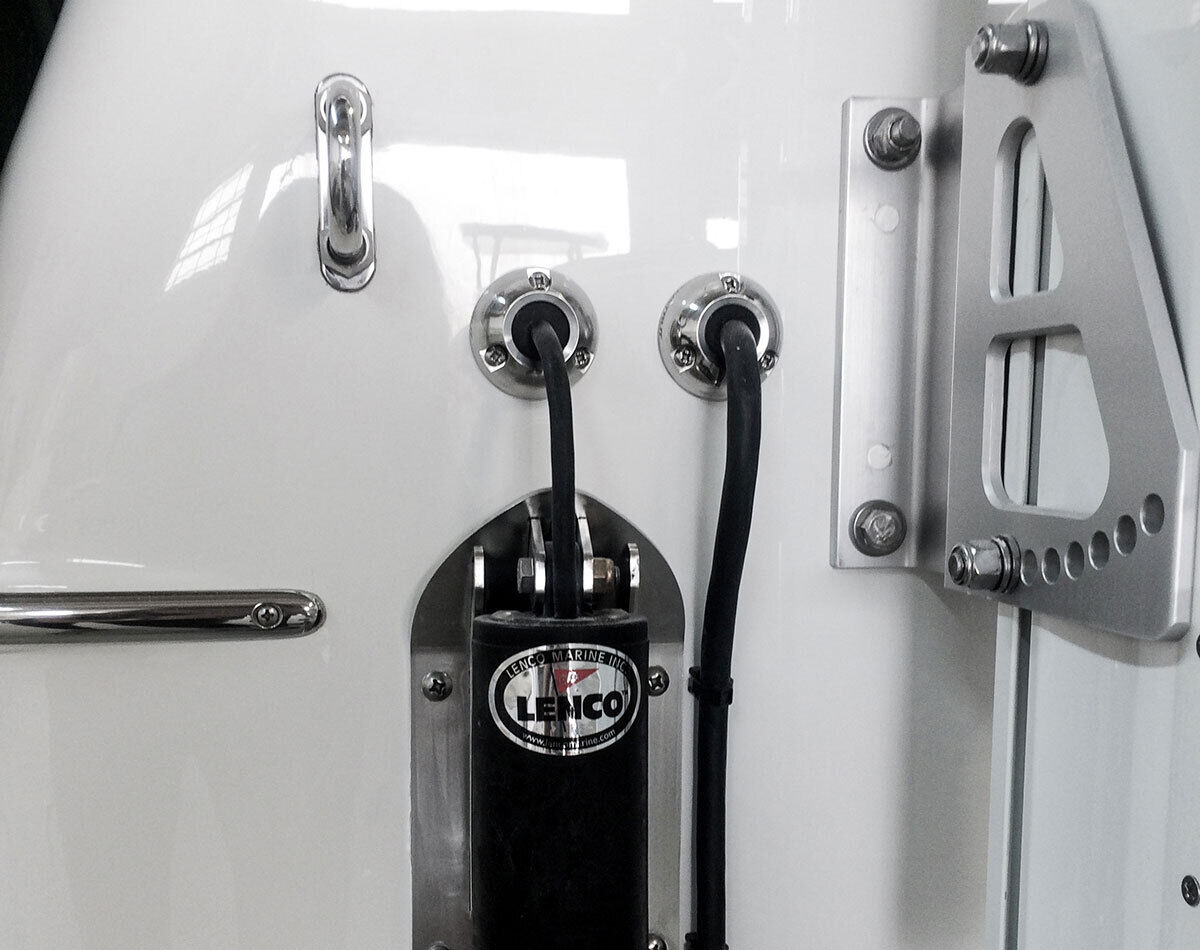

Designed for a range of cable diameters and connector sizes, these cable seals are ideal for almost every installation.
Features:
Also available: Horizontal Entry Cable Seals or Multiple Vertical Entry Cable Seals (see related products).

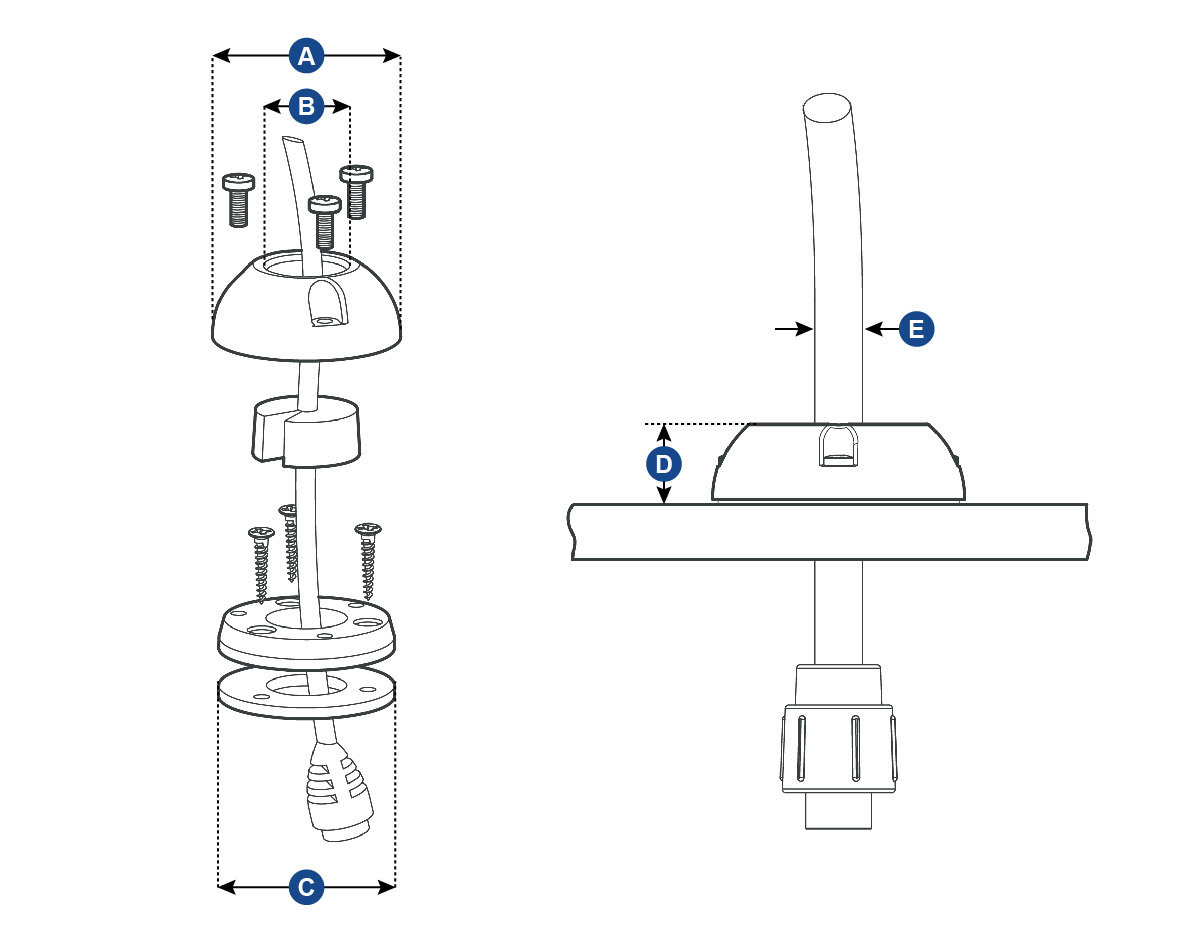

| JPW SKU (Black) | JPW SKU (Stainless Steel) | Model | Cable Size | Connector Size (up to) | Dimensions (mm) - see diagram within images | ||||
|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | |||||
| JPW10427 | - | DS6 | 2-6mm | 6mm | 30 | 6 | 27 | 17 | 2-6 |
| JPW10412 | JPW10413 | DS16 | 2-8mm | 16mm | 39 | 16 | 36.5 | 19 | 2-8 |
| JPW10415 | JPW10416 | DS21A | 4-9mm | 21mm | 49 | 21 | 45.7 | 20.5 | 4-9 |
| JPW10418 | JPW10419 | DS21B | 9-14mm | 21mm | 49 | 21 | 45.7 | 20.5 | 9-14 |
| JPW10421 | JPW10422 | DS30 | 9-14mm | 30mm | 59 | 30 | 56 | 20.5 | 9-14 |
| SKU | JPW-P-JPW10412 |
| Brand | Scanstrut |
