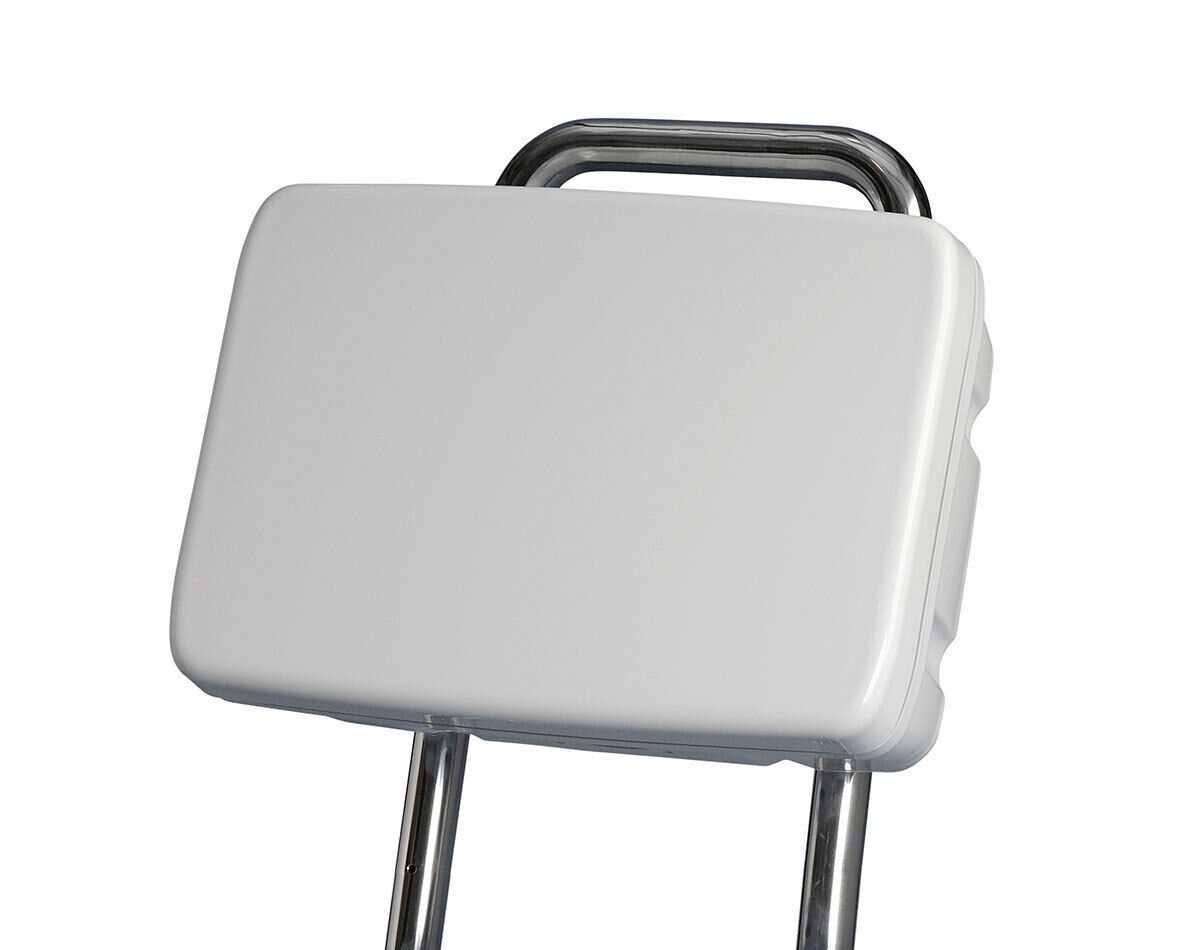

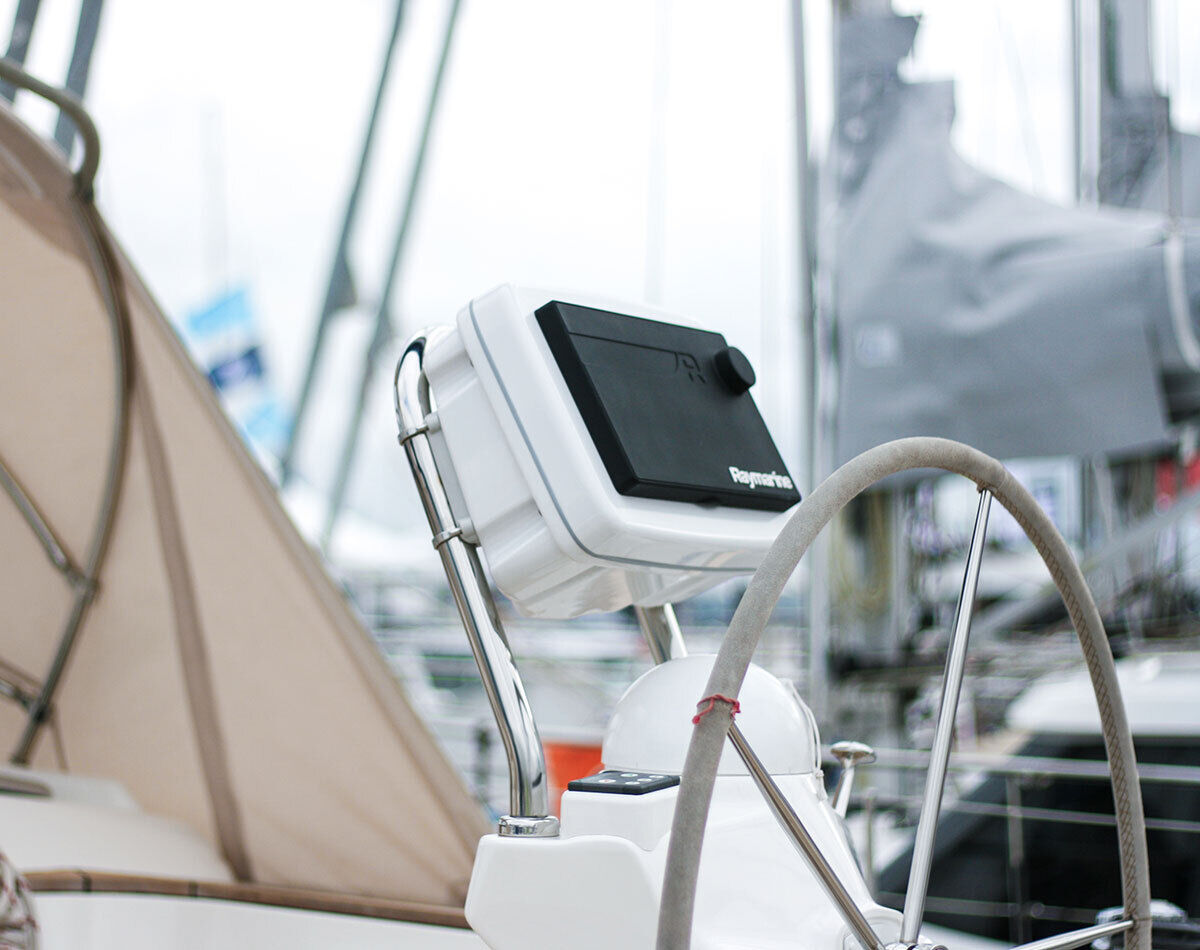

Write A ReviewDesigned for mounting your display right where you need it, these Scanpods fit pedestal rails from 25mm to 33.7mm diameter.
Secure & watertight installation, the saddle system supports the stainless tubing enabling a secure and rigid fit onto any pedestal and also ensures a watertight seal at cable entry.

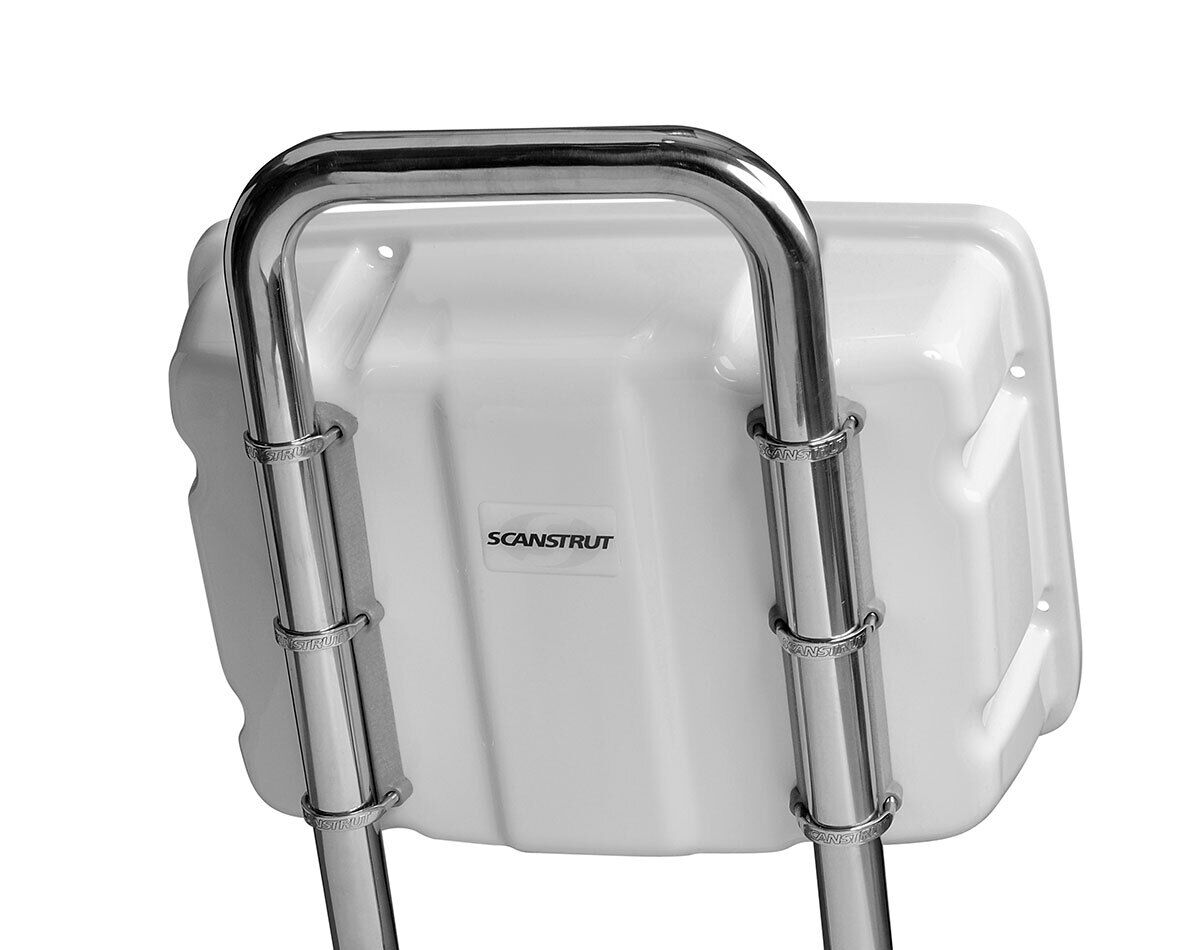

Customised u-bolts fit around the rail and through the saddles into the back of the pod eliminating the need for time consuming and awkward drilling of the stainless rail.

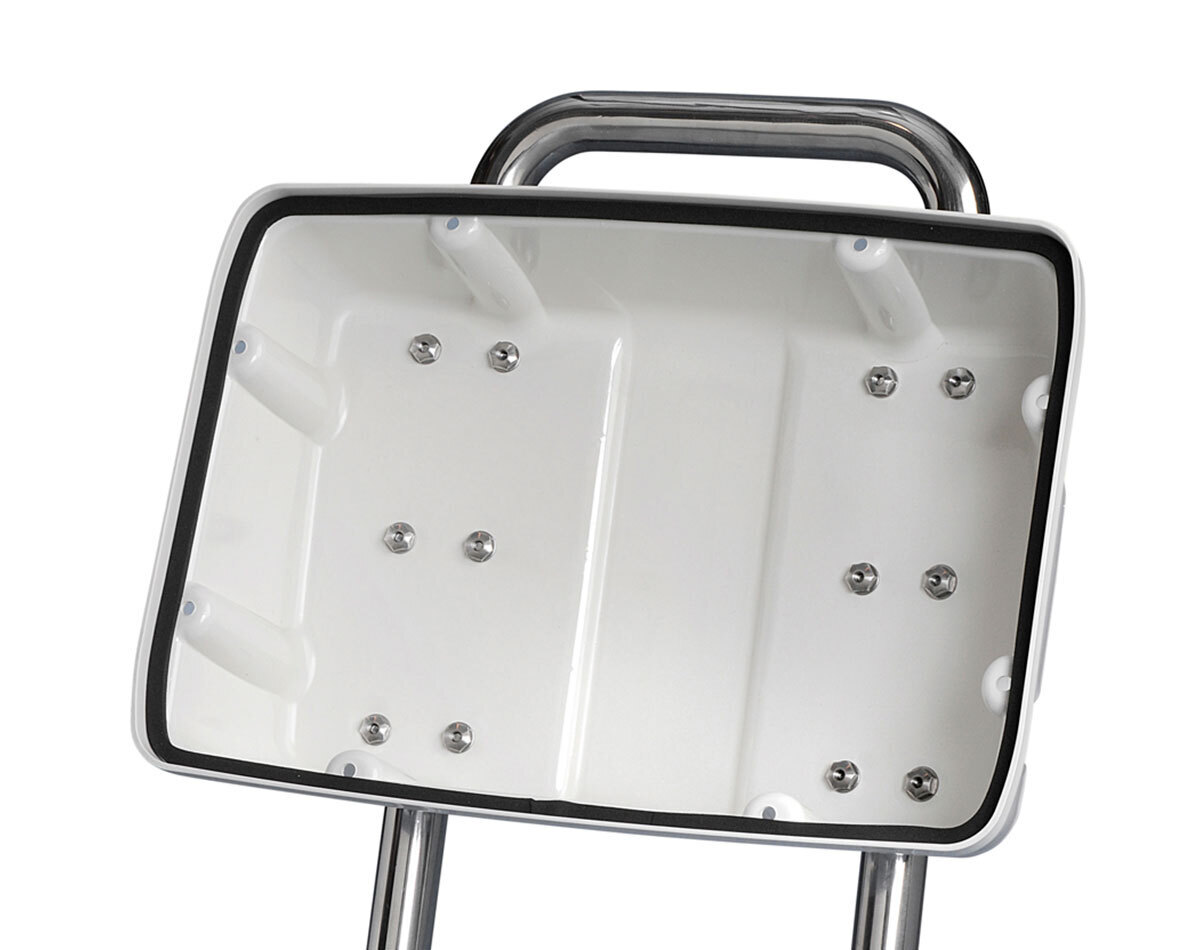

Fixings fit from back to front cutting their threads into injection moulded abs inserts designed into the pod front. This design allows for a quick and safe install and repeat servicing.
The pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and uv so you can have confidence that it won’t deteriorate over time.
As standard you will receive your scanpod uncut.
Available in three sizes (L x W x D):
Features:
| JPW SKU | Model | Dimensions (mm) - see diagram within images | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | L | M | ||
| JPW10524 | SPH-8-W | 267 | 167 | 289 | 190 | 324 | 228 | 128.5 | 134 | 152.8 | 170 | 203 | 167 |
| JPW10525 | SPH-9-W | 314 | 185 | 336 | 207 | 374 | 243 | 150 | 111 | 145 | 152 | 304.8 | 167 |
| JPW10528 | SPH-15-W | 404 | 329 | 424 | 349 | 467 | 387 | 202 | 128 | 154 | 172 | 368 | 183 |
| SKU | JPW-P-JPW10524 |
| Brand | Scanstrut |
