Write A ReviewThe Scanpod Range offers maximum choice and versatility for installing all leading brands of instruments and screens.
Designed for all leading brands and models of displays, these Deck Pods allows you to install your multi-function display device on virtually on any flat surface on board. This allows you to have your display in the prime position while out sailing on your powerboat and RIB.
With the pull of a lever, the intuitive design gives you a 360-degree viewing angle to make the most from what your display has to offer.
Swivel & tilt base with one-handed quick-release action, simply release the lever, swivel and tilt to suit your requirements before locking back into position.
An adjustable ball joint allows a range of movement and multiple mounting angles, these deck pod models can also be overhead mounted.
The inner bracing plate secures the deck pod base to the pod and gives increased rigidity to the assembly eliminating potential damaged from shock and vibration.
Fixings fit from back to front cutting their threads into injection moulded abs inserts designed into the Pod front. This design allows for a quick and safe install and repeat servicing.
The Deck Pod seal is manufactured from a high tear strength silicone, it has a very high resistance to heat and UV so you can have confidence that it won’t deteriorate over time.
As standard you will receive your scanpod uncut.
Available in various sizes (see table below).
Features:

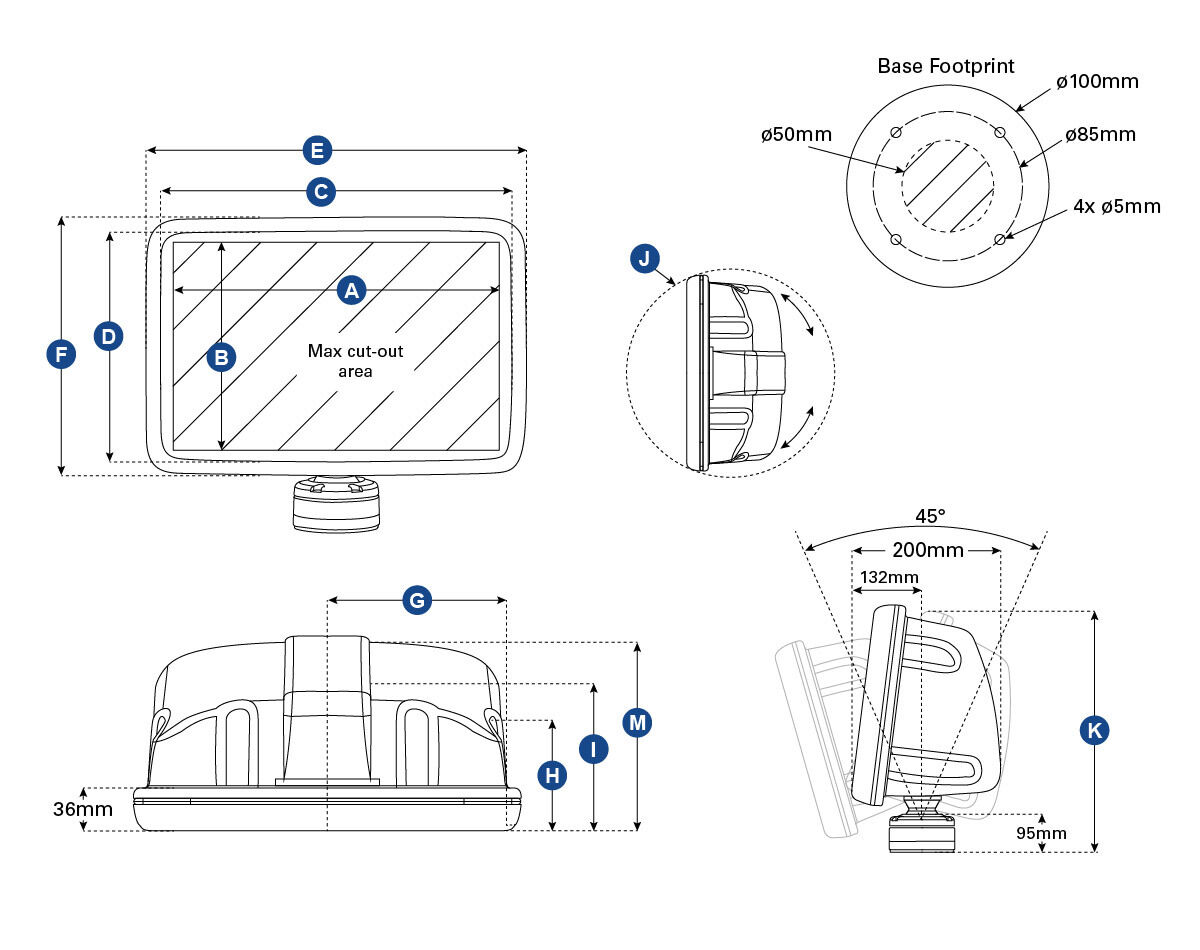

| JPW SKU | Model | Dimensions (mm) - see diagram within images | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B | C | D | E | F | G | H | I | J | K | M | ||
| JPW10519 | SPD-8-W | 267 | 167 | 289 | 190 | 324 | 228 | 128.5 | 134 | 152.8 | 346 | 310 | 167 |
| JPW10520 | SPD-9-W | 314 | 185 | 336 | 207 | 374 | 243 | 150 | 111 | 145 | 407 | 367 | 167 |
| JPW10521 | SPD-12-W | 332.5 | 227 | 354.5 | 244.5 | 392 | 286 | 170 | 109 | 145 | 428 | 369 | 167 |
| JPW10522 | SPD-13-W | 351 | 228 | 373 | 246 | 409 | 287 | 182 | 104 | 145 | 448 | 404 | 167 |
| JPW10523 | SPD-15-W | 423 | 333 | 424 | 349 | 482 | 396 | 199 | 104 | 146 | 535 | 490 | 175 |
| SKU | JPW-P-JPW10519 |
| Brand | Scanstrut |
