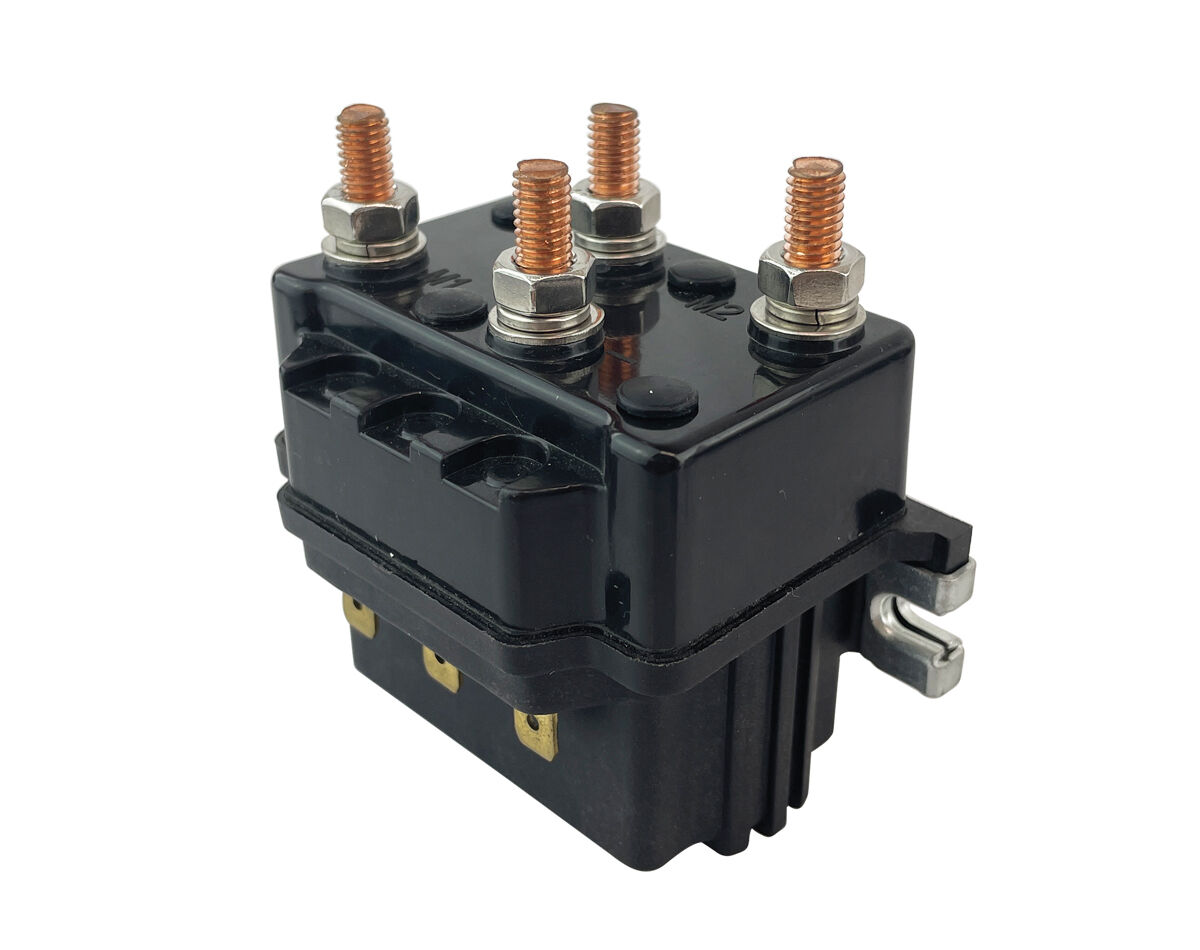

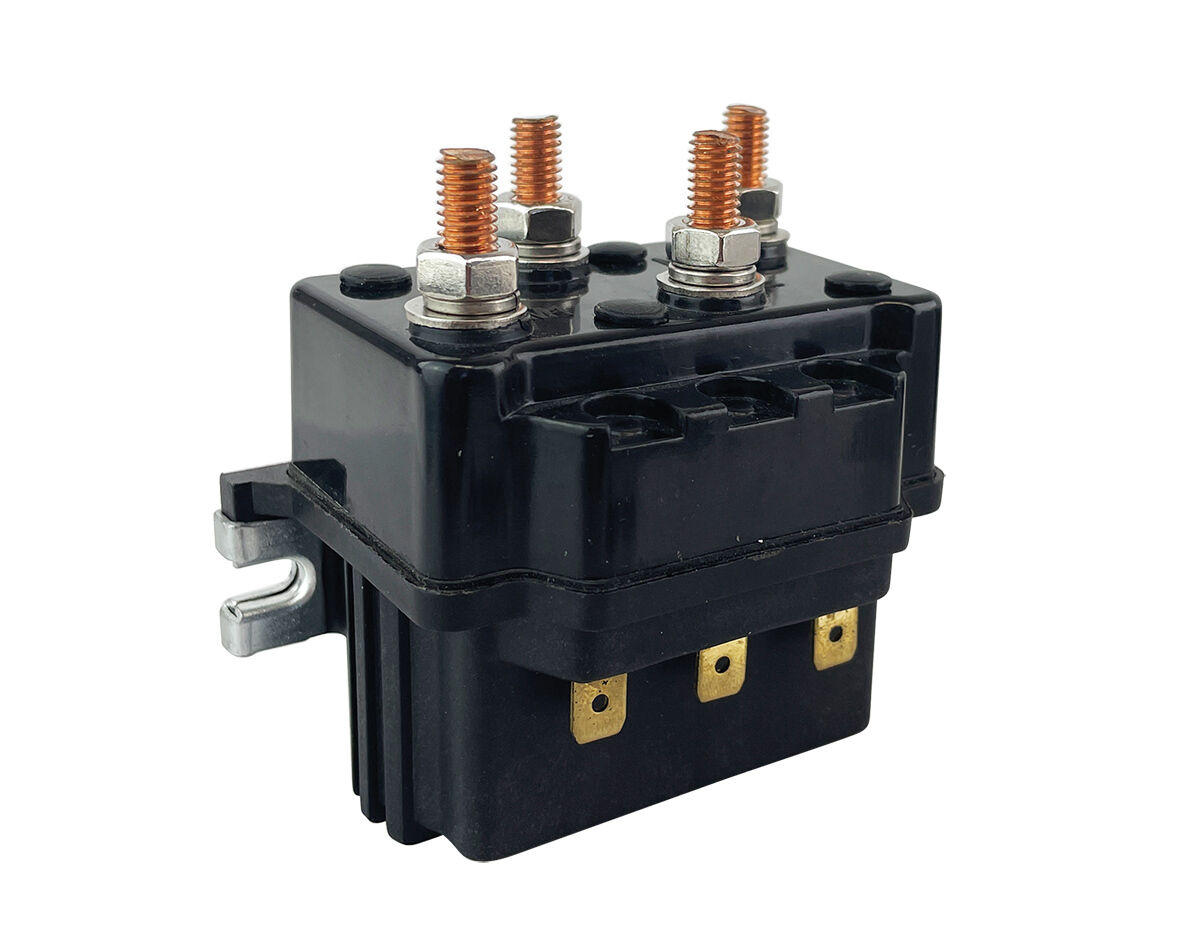

High grade, industry standard, reversing solenoid used to operate a double direction winch or capstan motor.
Help other Suncity Motorcycles users shop smarter by writing reviews for products you have purchased.
Write A ReviewHigh grade, industry standard, reversing solenoid used to operate a double direction winch or capstan motor.

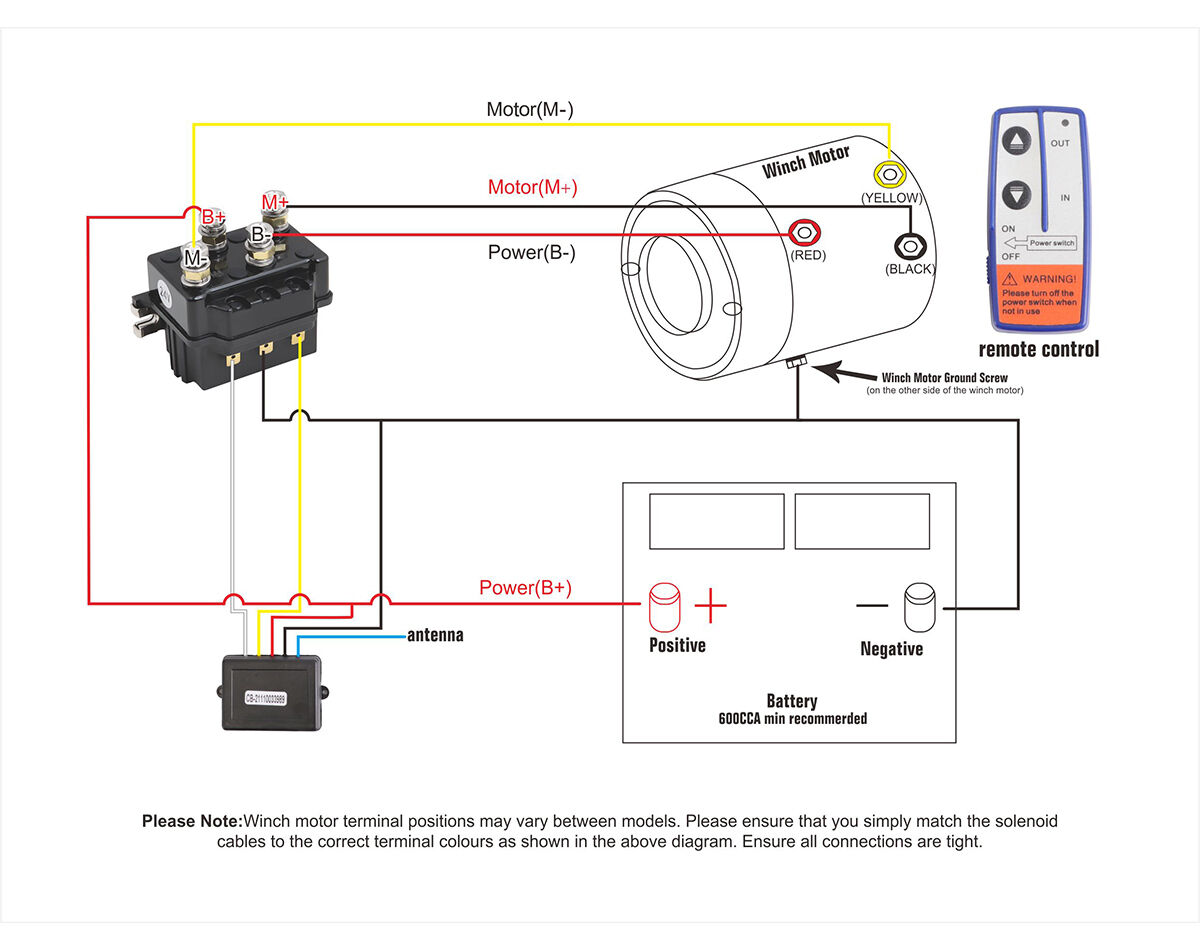

Commonly used in conjunction with remote up/down panel, chain counters, wireless hand held remote controls and/or foot switches to control the motor in the required direction.
Available in 12V for either permanent magnet or series wound motors.
Features:
| Voltage: | 12V DC |
|---|---|
| Initial Absorption Volt: | <8V |
| Release Volt: | >1.5V |
| Amps: | 150A |
| Insulate Resistant: | 400V 1 min max. |
| Working Temp: | -30°C to +85°C |
| Contact Load Current: | 300A, max working time 5mins |
| Max Instant Current: | 800A |
| SKU | JPW-JPW6113 |
| Brand | JPW Marine |
