Description

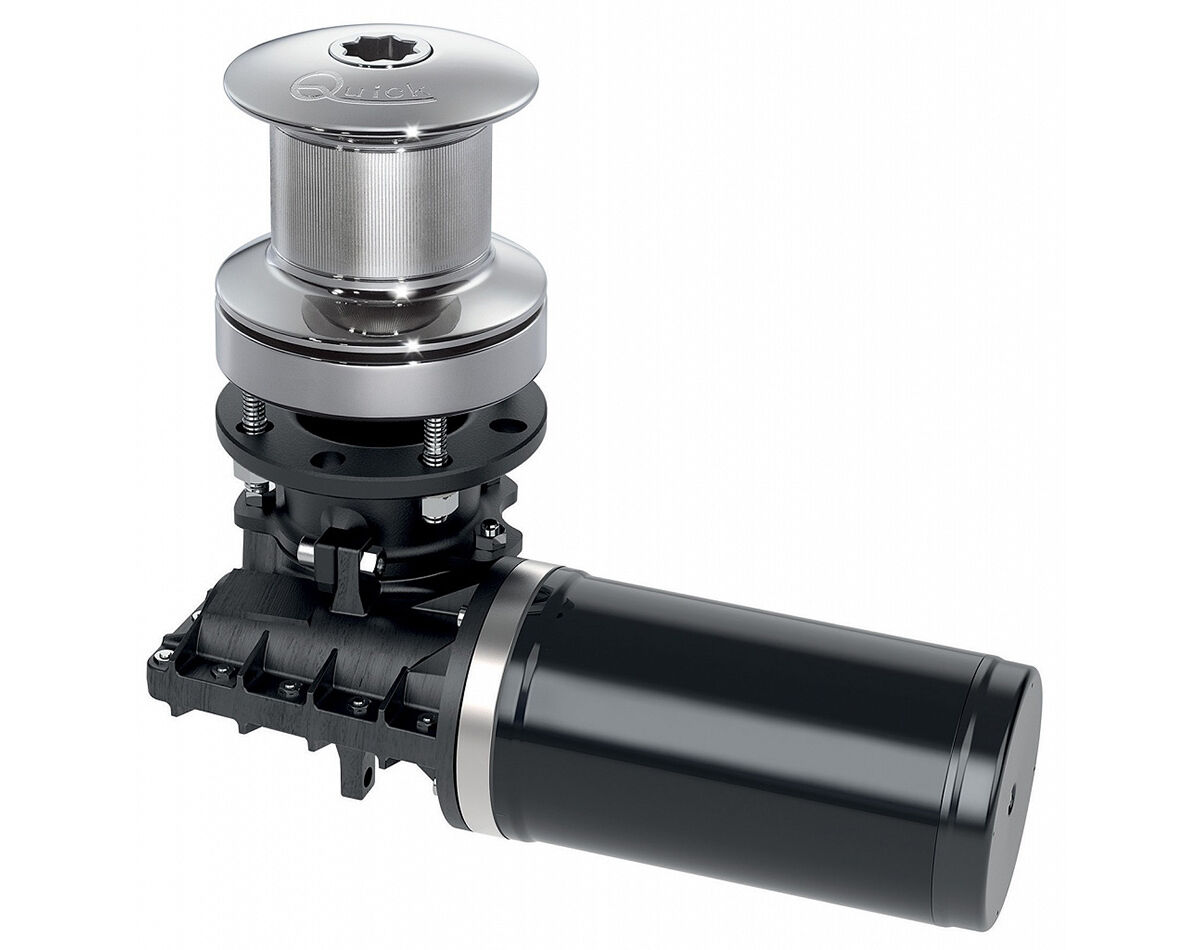

The high-quality Italian-made Quick TB2 500w is the ideal companion for effortless retrieval of craypots or hauling heavy lines.. The TB2 has a vertical capstan and horizontal-mounted motor and gear box which can be hidden out of sight under the gunwale or front deck, depending on your requirements.

Includes all the standard items such as base gasket, clutch handle, mounting hardware, drill template, user manual and a 10mm plastic spacer (for use below deck on aluminium boats, to prevent electrolysis).

*Does not include (sold separately): Circuit breaker 60amp, deck switch (see related products). Please note a circuit breaker is required for this product to operate.

*For forward/reverse operation, a solenoid & switch is required (sold separately - see related products).

Features:

Powerful Performance: The Quick TB2 500w is a vertical capstan and craypot winch, designed to make your life easier. With its robust 500W motor, it effortlessly lifts your craypots, ensuring you spend less time hauling and more time enjoying the catch of the day.
Horizontal Mounting: The TB2 is ingeniously designed for horizontal mounting. Concealed under the deck or gunwale, it seamlessly integrates into your boat’s structure, leaving your deck clutter-free.
Material Durability: The capstan and base have been crafted from AISI 316 stainless steel, and the gearbox from an evolutional new technopolymer, built to withstand the harshest marine environments. Whether you’re battling rough seas or scorching sun, the TB2 stands strong for the longest.
Quick and Easy: Say goodbye to backbreaking efforts! The TB2 gets your craypots up quickly and effortlessly with a maximum working load of 200kg. No more straining – just smooth, efficient retrieval.
Quality: Trust in an Italian-made, high-quality winch that’s been tested and approved. It’s the ultimate companion for your crayfishing adventures.
Warranty: 3 years manufacturer warranty

Specifications:

Motor Power: 500W 12volt DC

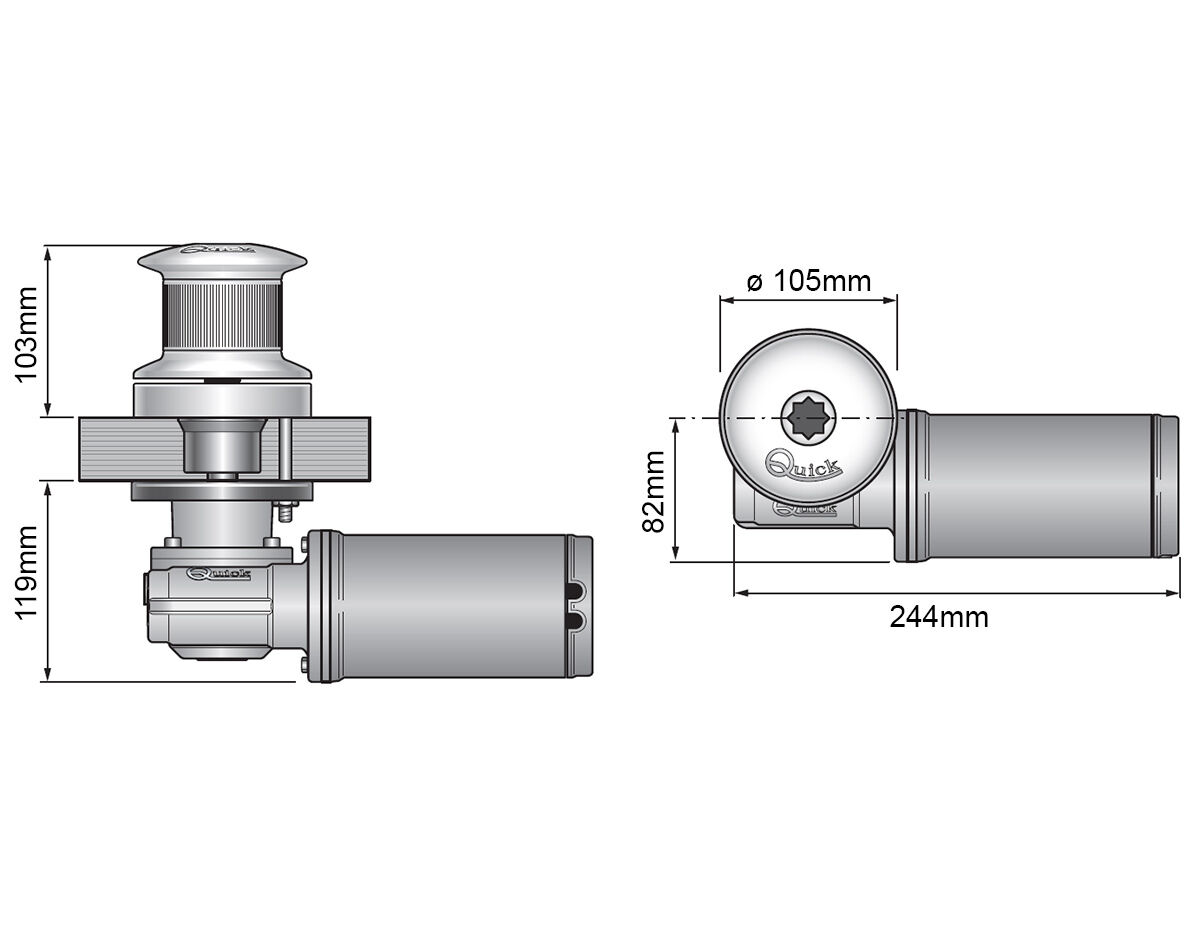

Mounting: Vertical 105mm diameter base Capstan (with horizontal motor and gearbox under deck or gunwale at 90/45° angles)

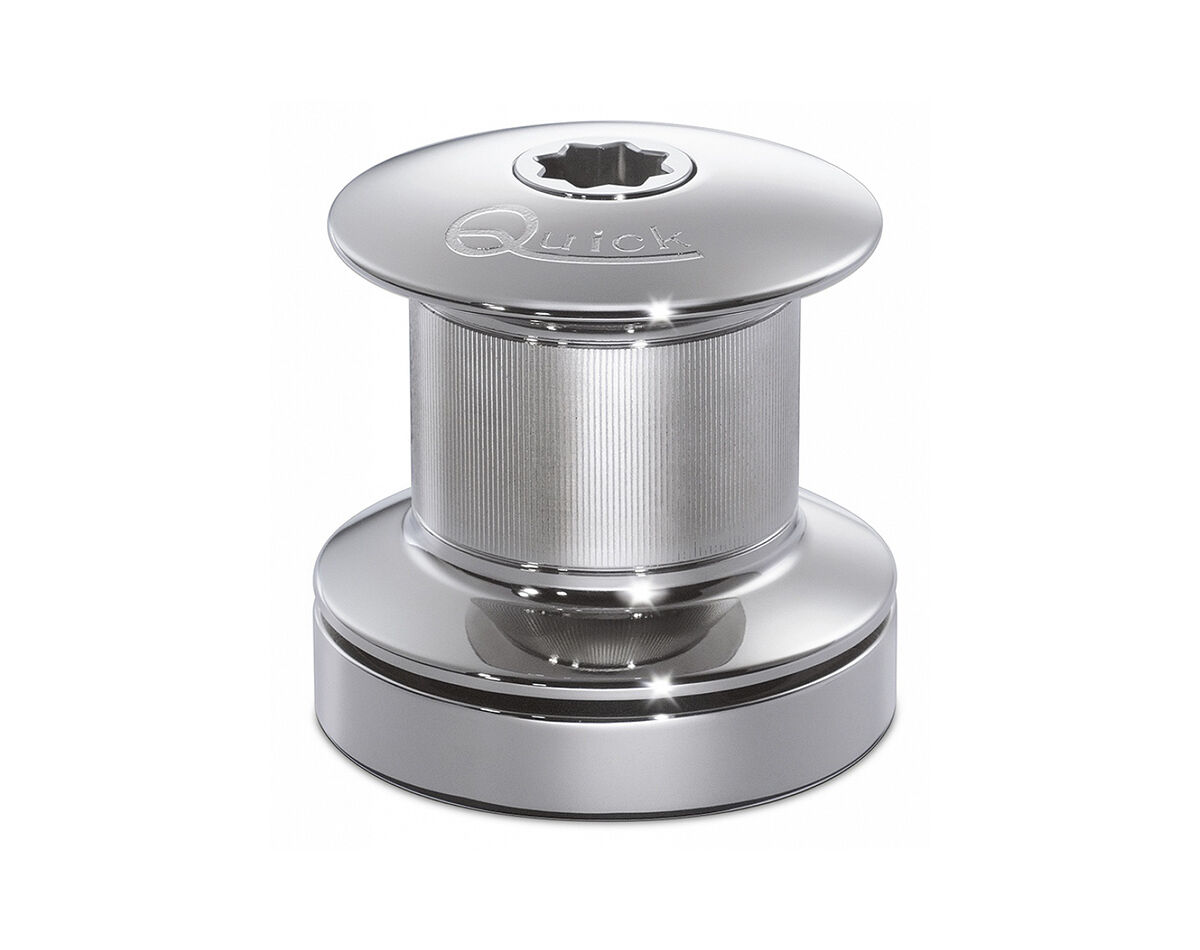

Material: AISI 316 Stainless Steel Capstan and base unit with NEW technopolymer gearbox
Application: Craypot retrieval or heavy line haulage

Model	TB2 512
Watts	500w
Volts	12v
Maximum Pull	660kg
Maximum Working Load	200kg
Working Load	65kg
Current absorption @ working load	80A
Max chain speed	29m/min
Max chain speed @ working load	19m/min
Motor Cable Size	16mm2
Protection circuit breaker	60A
Deck Thickness	25 - 50mm
Weight	7.6kg

*For applications that require forward/reverse (up/down) movement, you will need a solenoid along with an up/down switch.

Suggested Solenoids:

Suggested Foot switches:
