Description

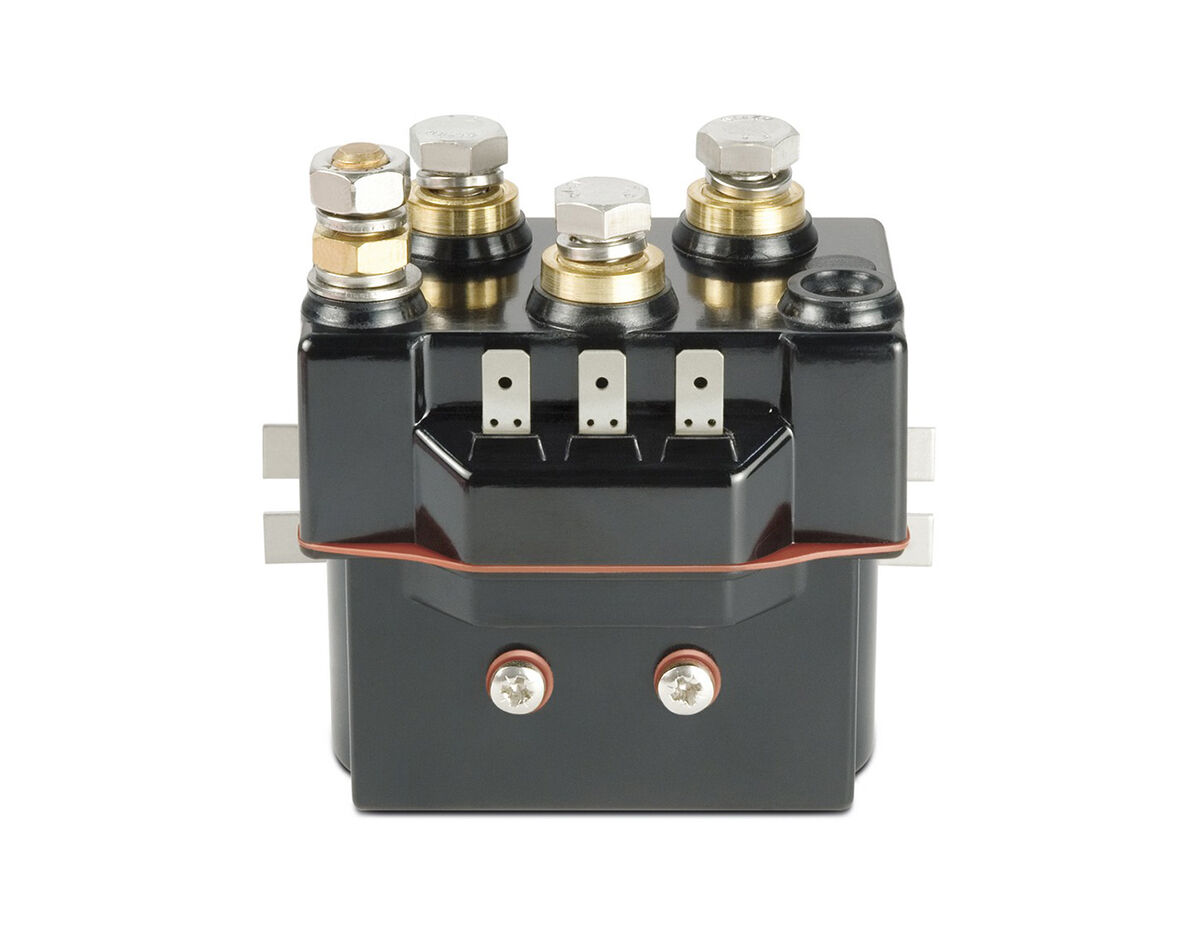

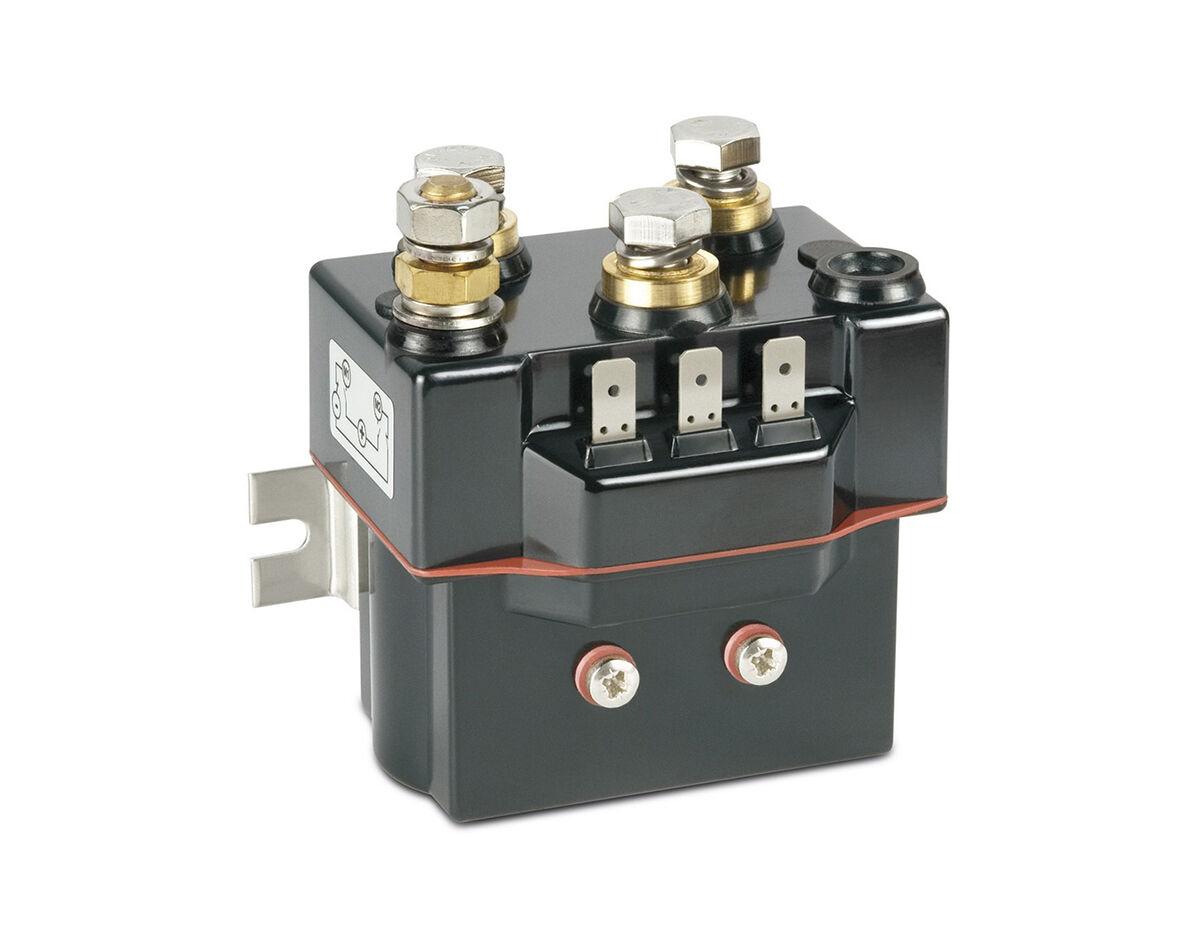

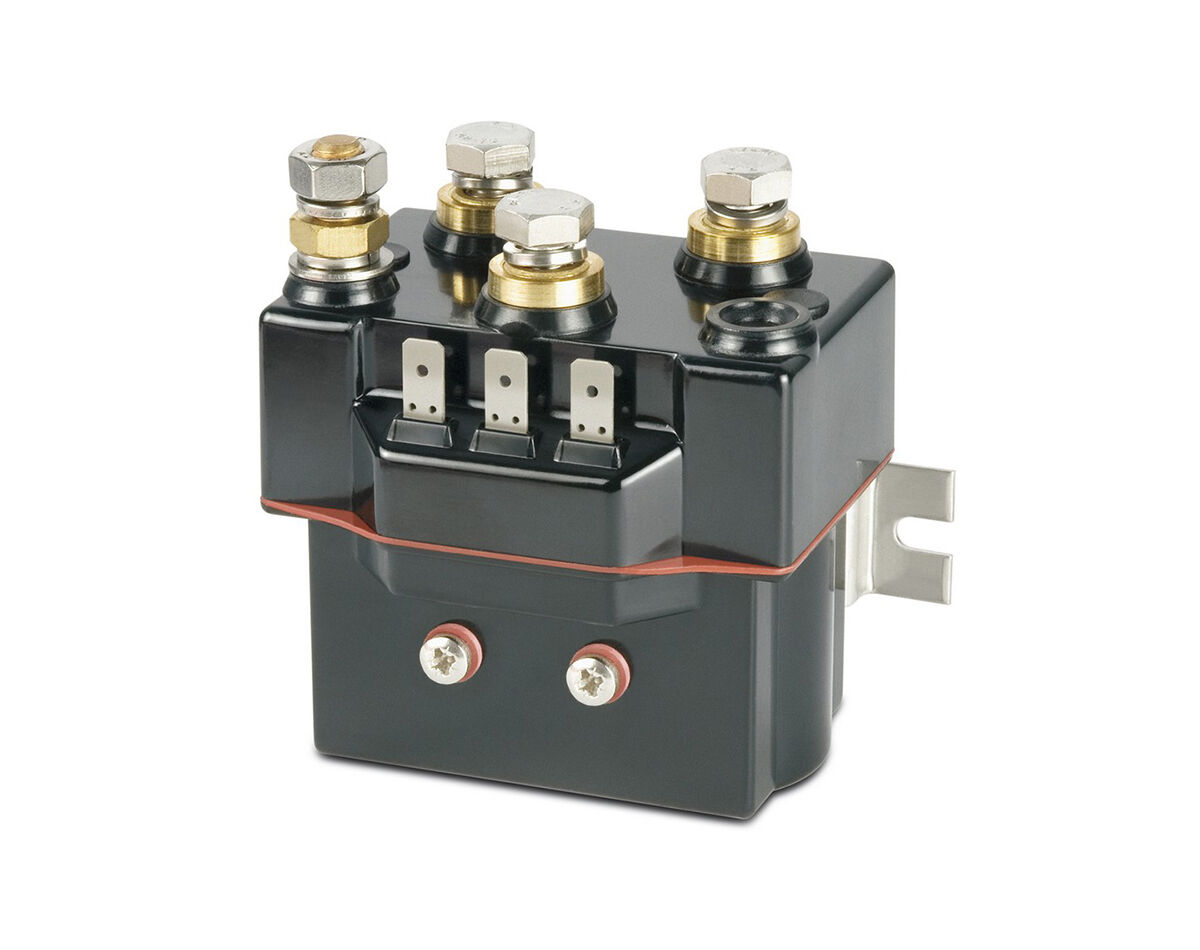

These reversing contactors have a lower wattage and are capable of operating electric, dual direction, capstan and windlass motors. Commonly used in conjunction with remote up/down panel, chain counters, wireless hand held remote controls and/or foot switches to control the motor in the required direction.

The casing of the T6411 is waterproof, however installation in a dry area is always recommended.

These heavy-duty solenoids are suitably rated for Quick winch motors and available in either 12V or 24V DC for either permanent magnet or series wound motors.

Note: Double direction solenoids must be used where reverse direction motor rotation is necessary.

Features:

Reversing contactor
Double pole double throw
Straightforward installation due to external connections
12V or 24V DC
Suits permanent magnet or series wound motors
Waterproof casing (IP66 ingress rating)

Please note: These solenoids will NOT suit the older Quick Hector models, refer to your winch manual to check which replacement part is required, or contact us.

Model	T6411-12	T6411-PT
Voltage	12V	24V
Max motor power	2500W	3500W
