Description

For boats from 6 to 10 metres (20 - 33ft)

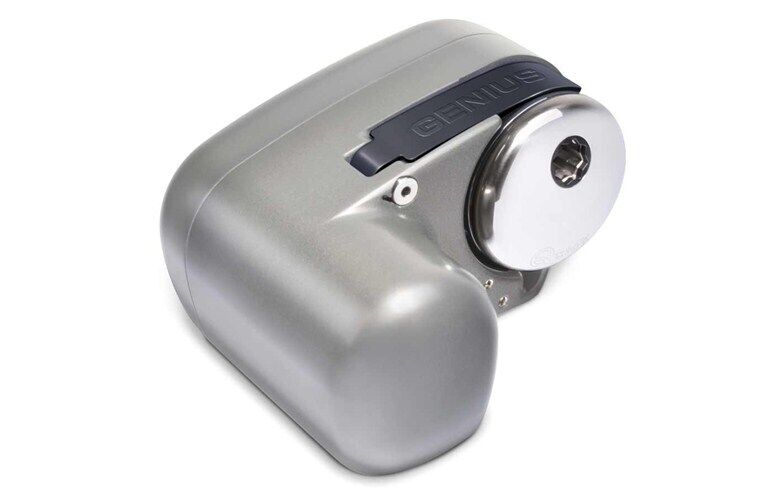

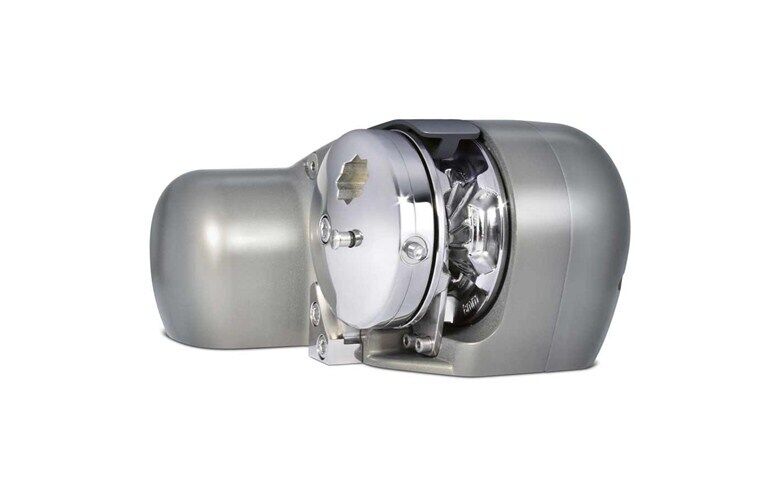

A compact, on-deck mounted windlass providing functionality and efficiency.

Manufactured for the harsh marine environment, the Genius GP2 1500 features a robust anodised marine grade alloy housing and a 316 grade stainless steel gypsy.

The Genius GP2 1500FF free fall version allows fast, precision anchoring.

Quick's patented free fall mechanism will send the anchor into free fall from the touch of a button; when hitting that ledge or wreck, really matters. The serious fisherman's friend!

Features:

GP2 1500: Power Up / Power Down operation
GP2 1500FF: Quick's Free Fall technology
Ideal for restricted above deck mounting
Anodised alloy housing for reduced corrosion
Dual direction permanent magnet motor for greater output and reduced power consumption
3 year warranty from the date of sale

Standard Inclusions:

Composite Clutch Manual Release Handle
Isolator/Circuit Breaker Panel
Reversing Solenoid
Gypsy: to suit 6-8mm short link chain, 12mm three-strand nylon or polyester rope

Optional Additions:

Foot Switches: Up-Down for the deck
Digital Chain Counters
Hand Held Remote Controls
Remote Up/Down Panel Switch

Model	GP2 1500	GP2 1500 FF
Watts	500 watts	500 watts
Volts Std. (Opt.)	12 volts	12 volts
Amps	76 amps	76 amps
Chain Standard (Opt.)	6 (8) mm	6 (8) mm
Rope Size	12mm	12mm
Maximum Pull	680kg	680kg
Maximum Working Load	250kg	250kg
Maximum Chain Speed	25.5m/min	25.5m/min
Drive Shaft	Horizontal	Horizontal
Capstan Option	No	No
Chain/Rope Gypsy	Yes	Yes

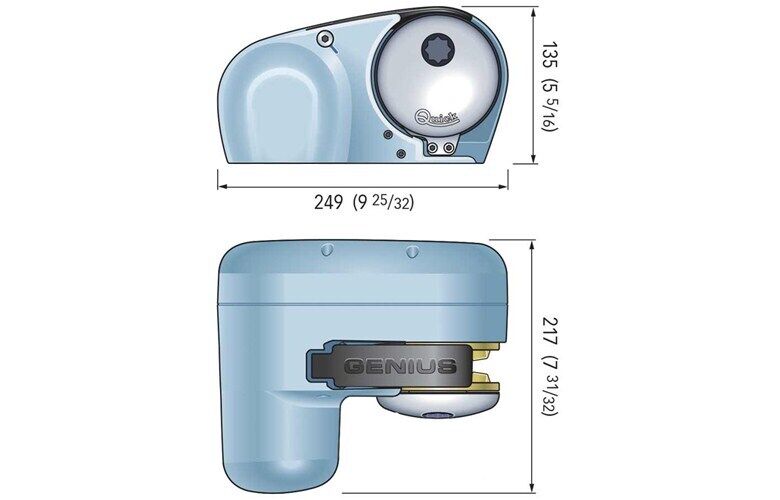

Dimensions (mm) (L x W x H)	248.4 x 202.4 x 134.5
Weight	10.5kg	10.5kg
