Description

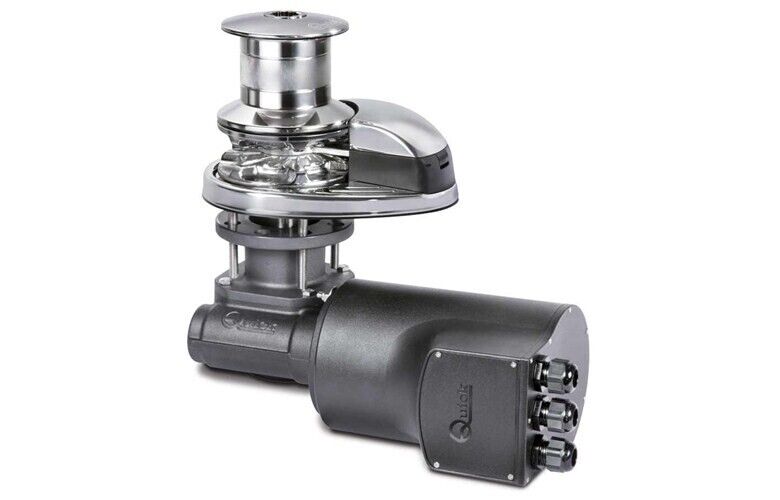

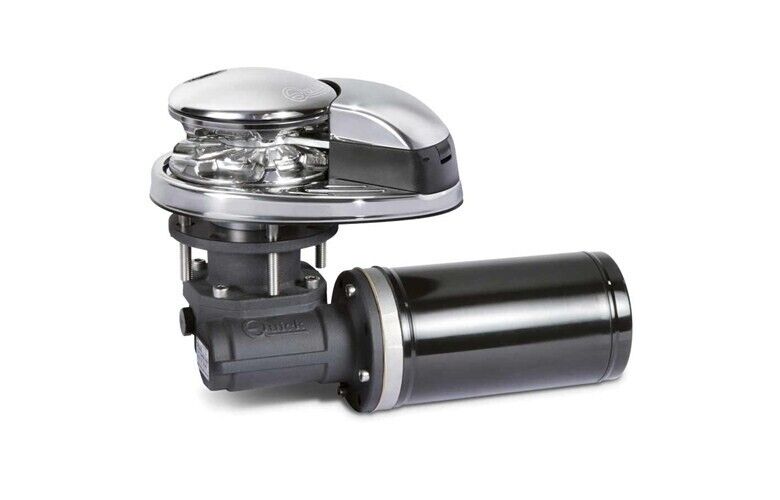

The Prince Series DP2 1000W is a lightweight yet strong vertical anchor winch with an AISI 316-grade stainless steel base, IP67-rated motor, gypsy and chain inspection lid & technopolymer gearbox.

Recommended Boat Size: 8 - 13 metres (26 - 43ft)

Features:

Vertical windlasses
AISI 316-grade stainless steel base
Technopolymer gearbox
With and without drum
Rope and chain on a single gypsy
Integrated sensor and magnet for chain counter
Manual Free-Fall system
Supplied with pressure lever & Inspection lid
Watertight motor (IP67 rated)
Rope and chain kits sold separately (see related products)
3 year warranty from the date of sale

Standard Inclusions:

Clutch Release and Manual Lift Handle
Isolator/Circuit Breaker Panel
Reversing Solenoid

Optional Additions (see related products):

Remote Up/Down Panel Switch
Foot Switches: Up-Down for the deck
Digital Chain Counters
Hand Held Remote Controls
Wireless Remote Controls

Note: GD Model = Gypsy and Drum

Model	DP2 1000
Watts	1000w
Volts Std.	12 or (24)
Amps	130A
Chain Gypsy Size (mm)	6 or 8mm
Rope Size	12mm
Max. Pull	930kg
Max. Working Load	420kg
Max. Chain Speed	31.2m/min
Drive Shaft	Vertical
Capstan Option	Yes
Chain/Rope Gypsy	Yes
Deck Thickness	25 - 50mm
