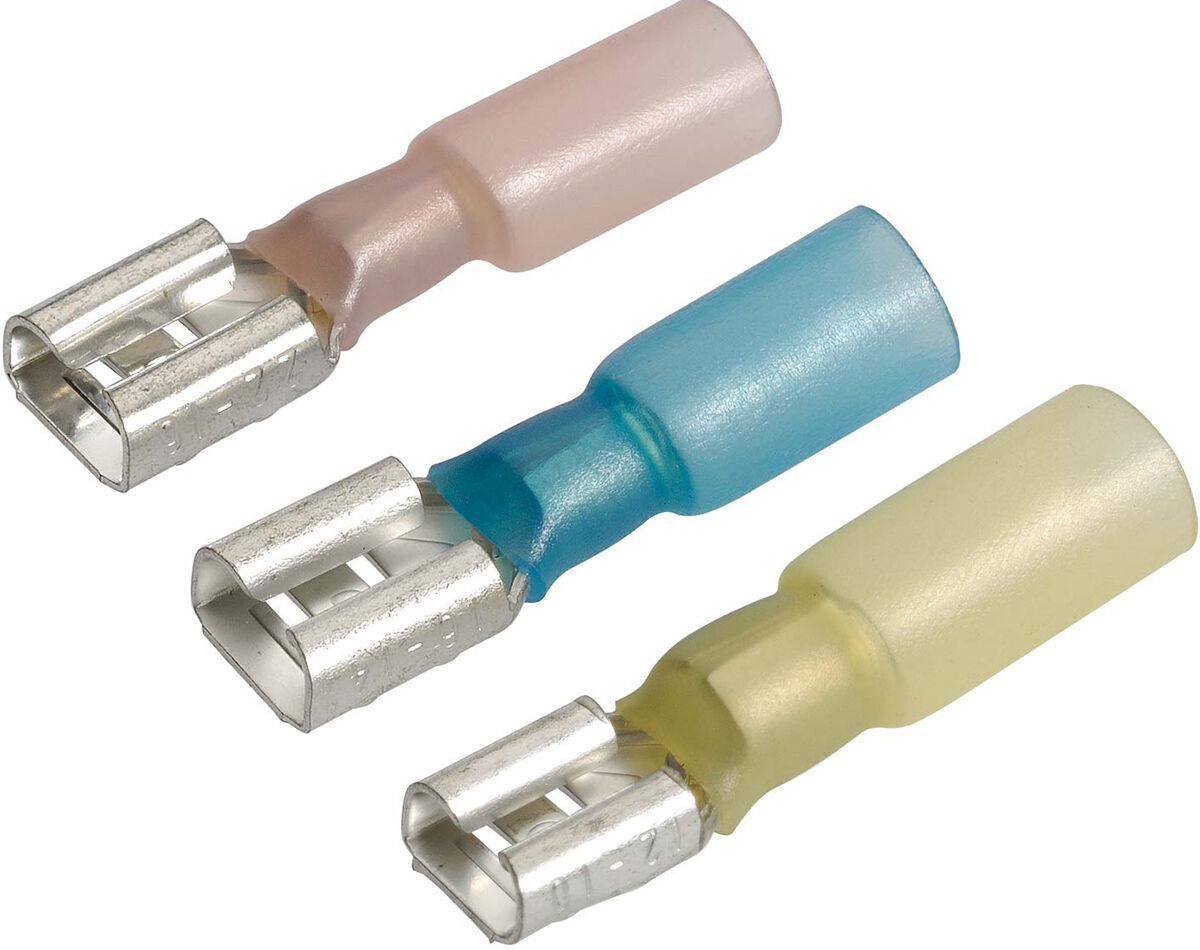

Write A ReviewThe internal adhesive of the heatshrink terminals bonds securely to both the terminal and cable. The combination of crimping, heatshrink and adhesive creates a level of strain relief not achievable with standard terminal types.
The shrink/adhesive combination also produces a seal that prevents water and dust getting into the back of the terminal.
Connect/snap together with the corresponding male connector: Narva Heatshrink Male Terminals
Tab size: 6.3 x 0.8mm
Features:
| JPW SKU | Colour | Wire Size (mm) | Quantity (Per Pack) |
|---|---|---|---|

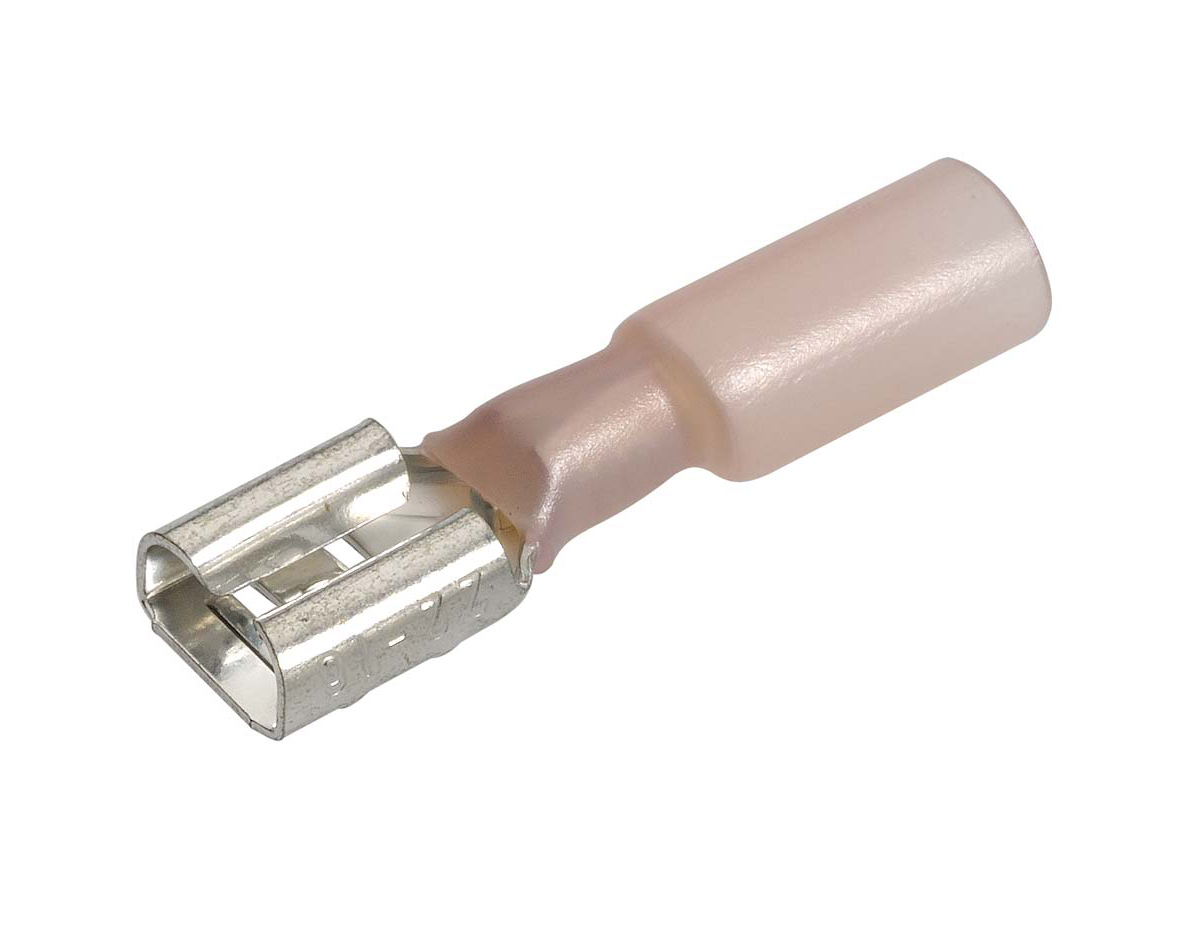

| N56328 | Red | 2.5 - 3 | 50 |
| N56328BL | Red | 2.5 - 3 | 20 |

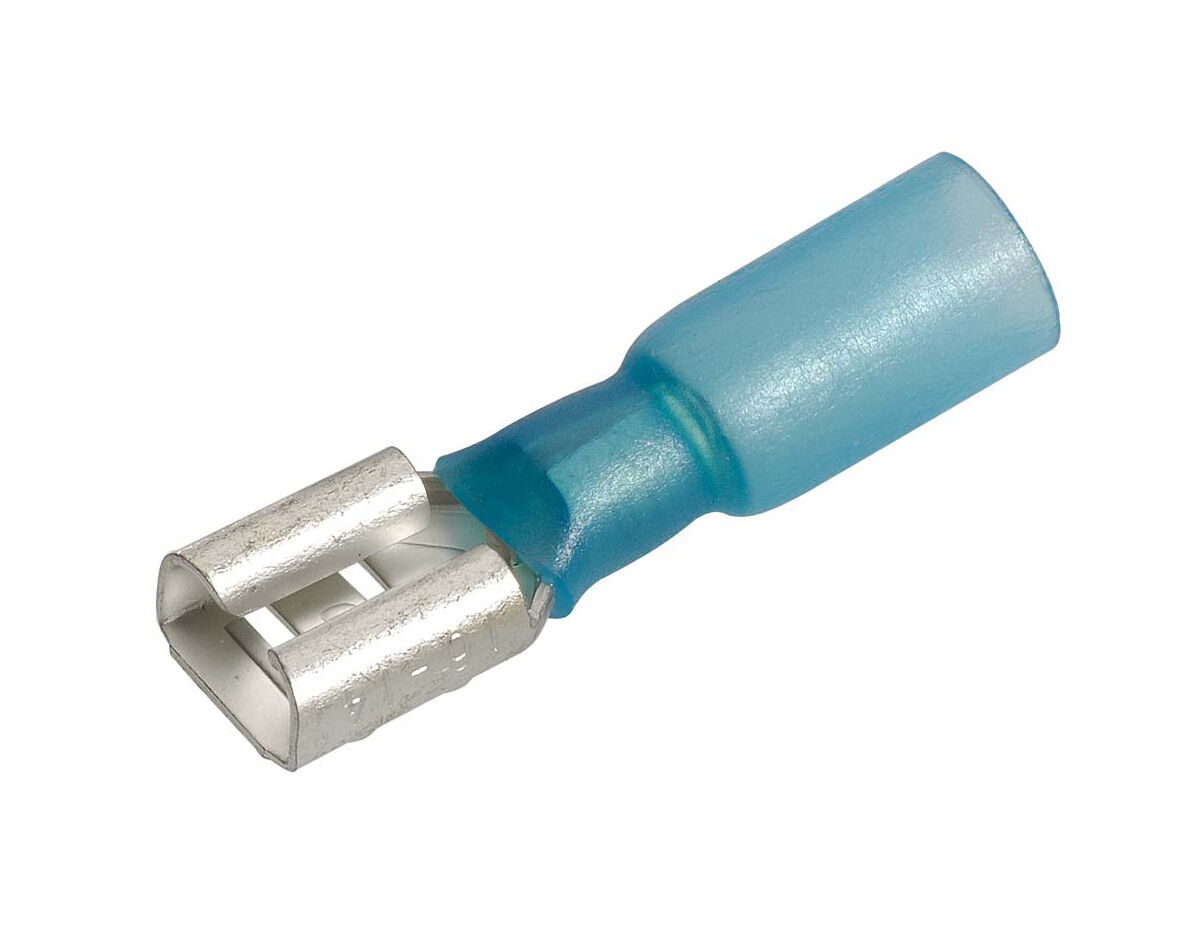

| N56330 | Blue | 4 | 50 |
| N56330BL | Blue | 4 | 20 |

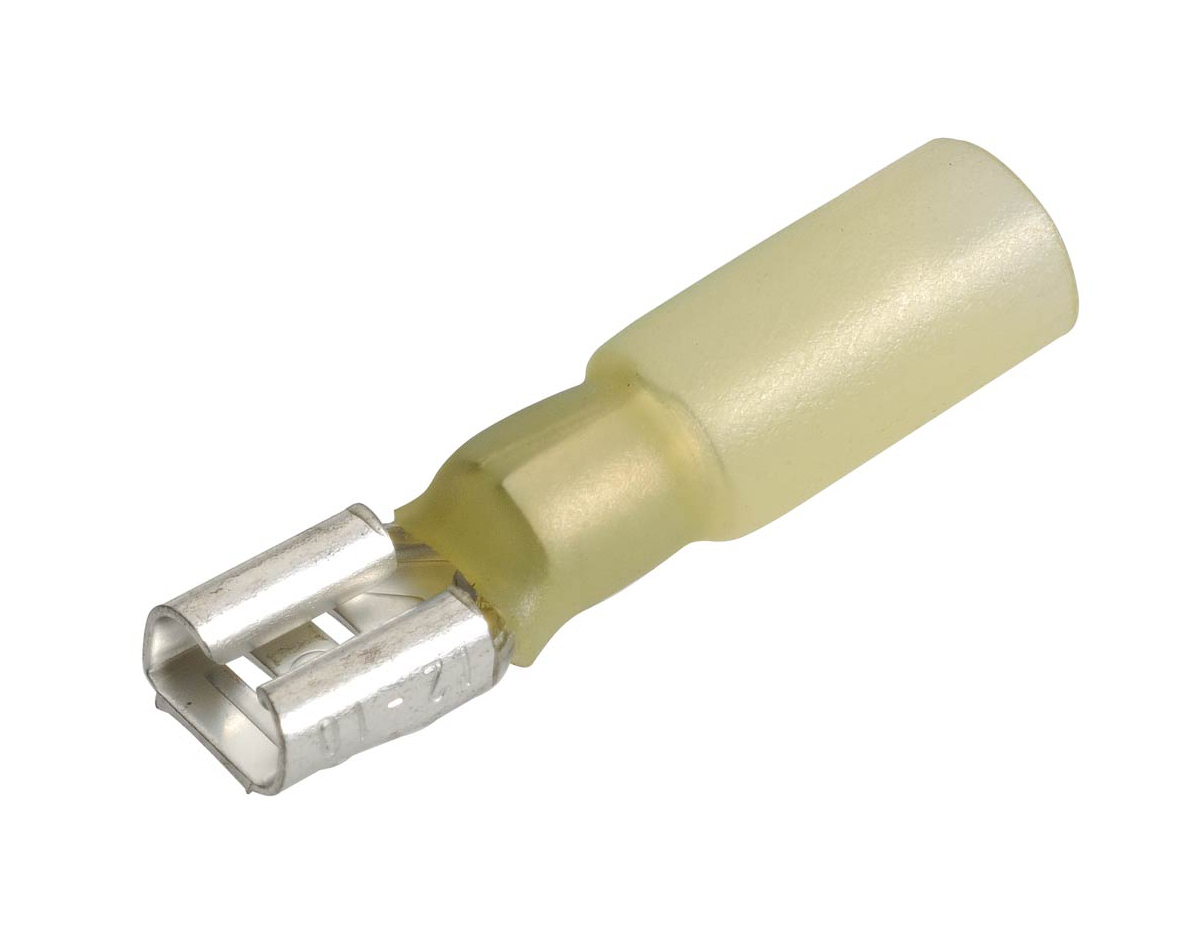

| N56332 | Yellow | 5 - 6 | 50 |
| N56332BL | Yellow | 5 - 6 | 15 |
Instructions:

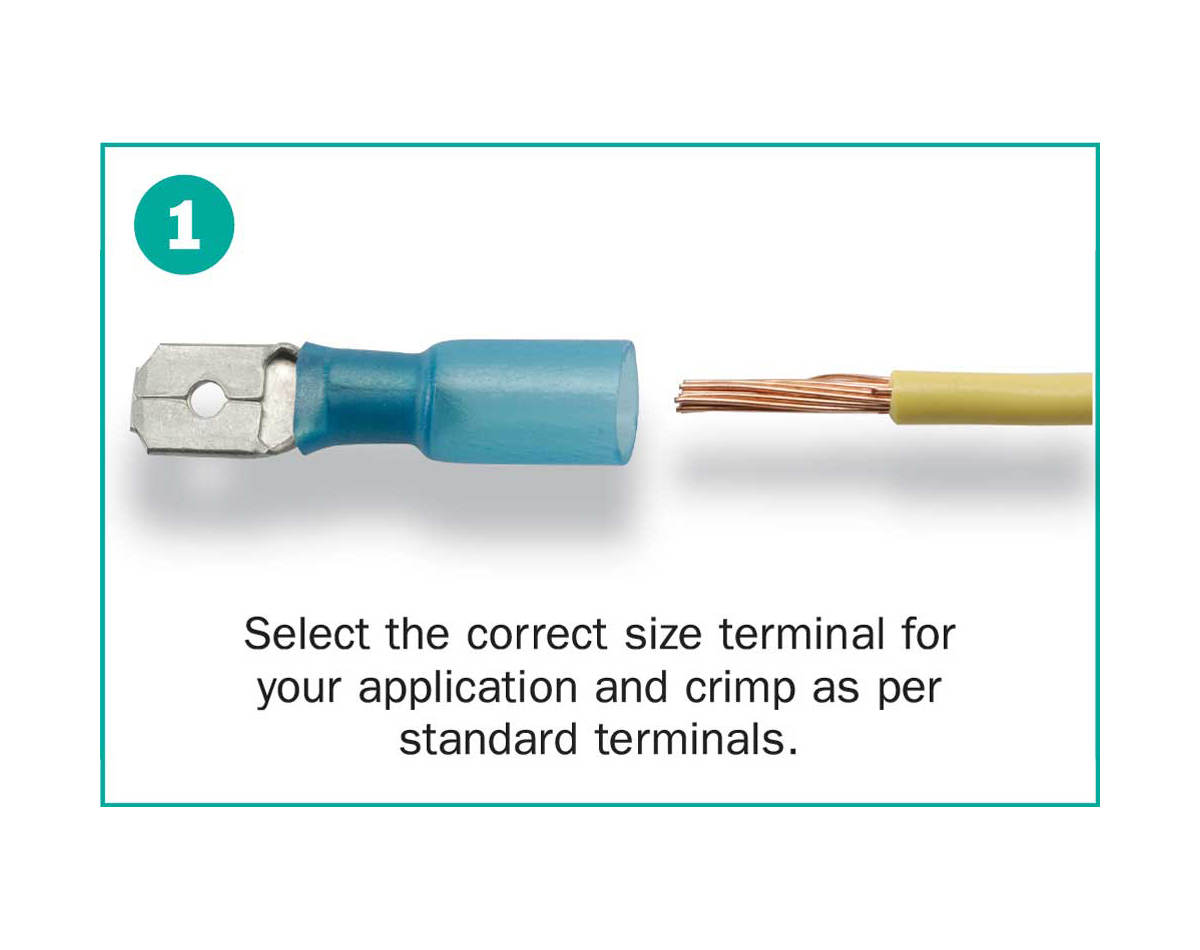

- Select the correct size terminal for your application and crimp as per standard terminals.

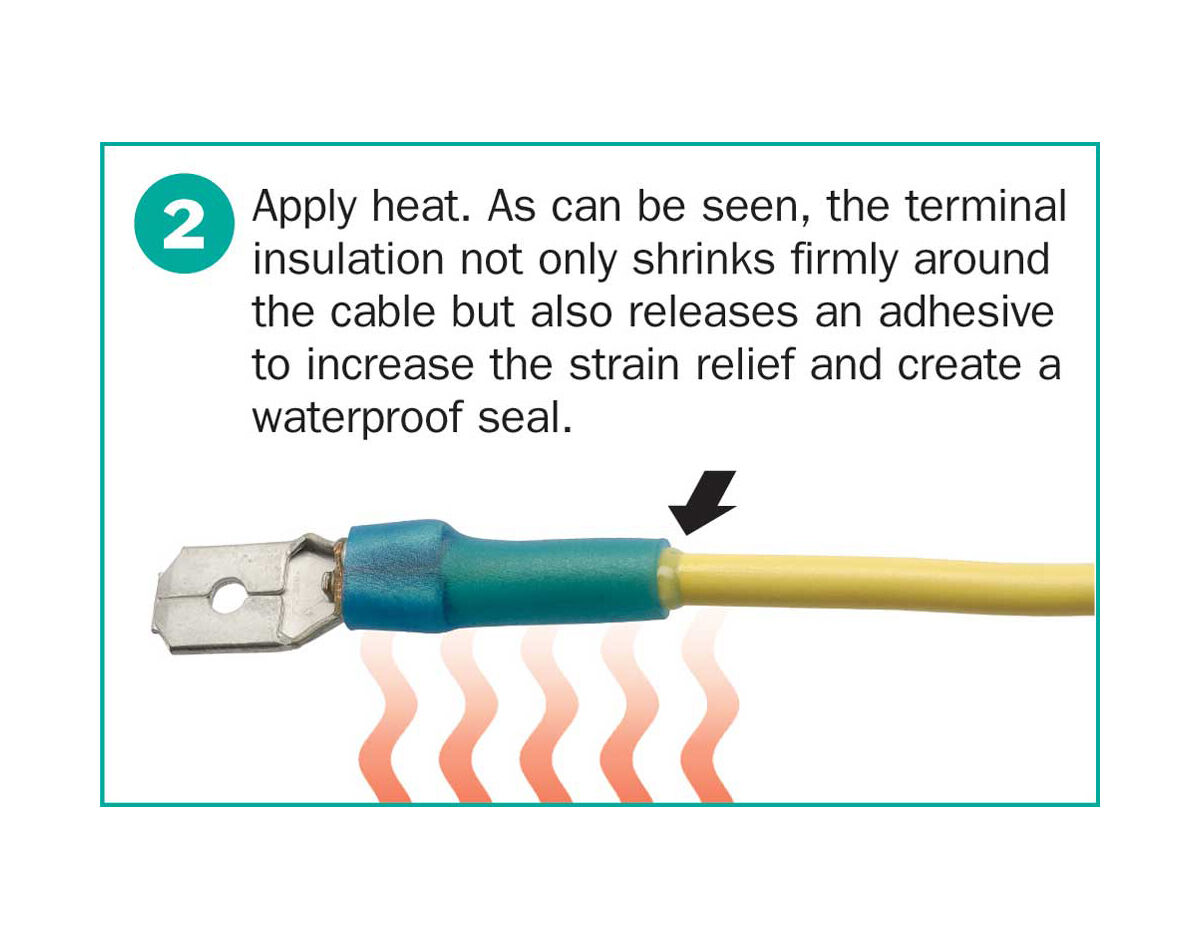

- Apply heat. The terminal insulation not only shrinks firmly around the cable but also releases an adhesive to increase the strain relief and creates a waterproof seal.
| SKU | JPW-P-N56328 |
| Brand | Narva |
