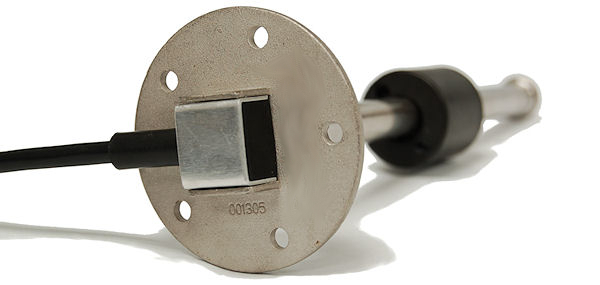

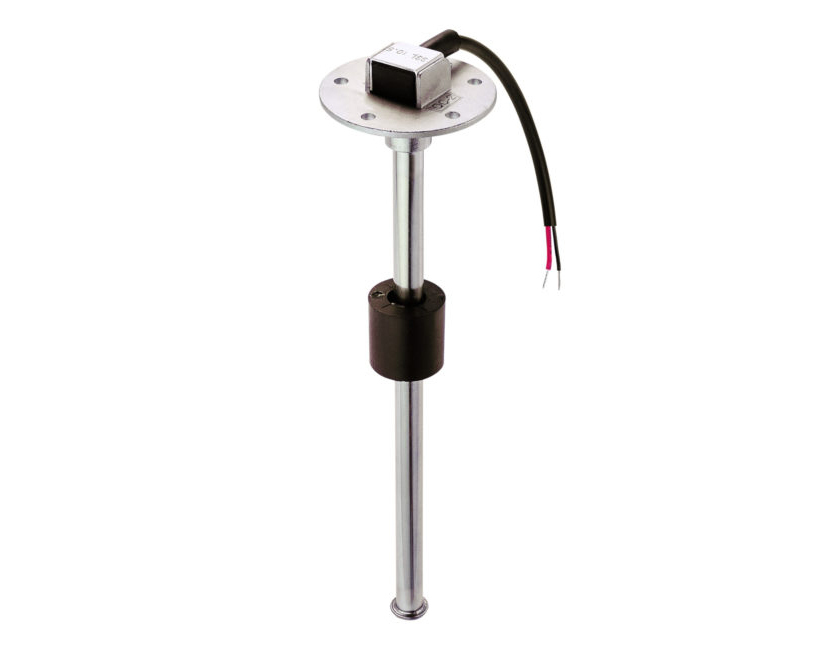

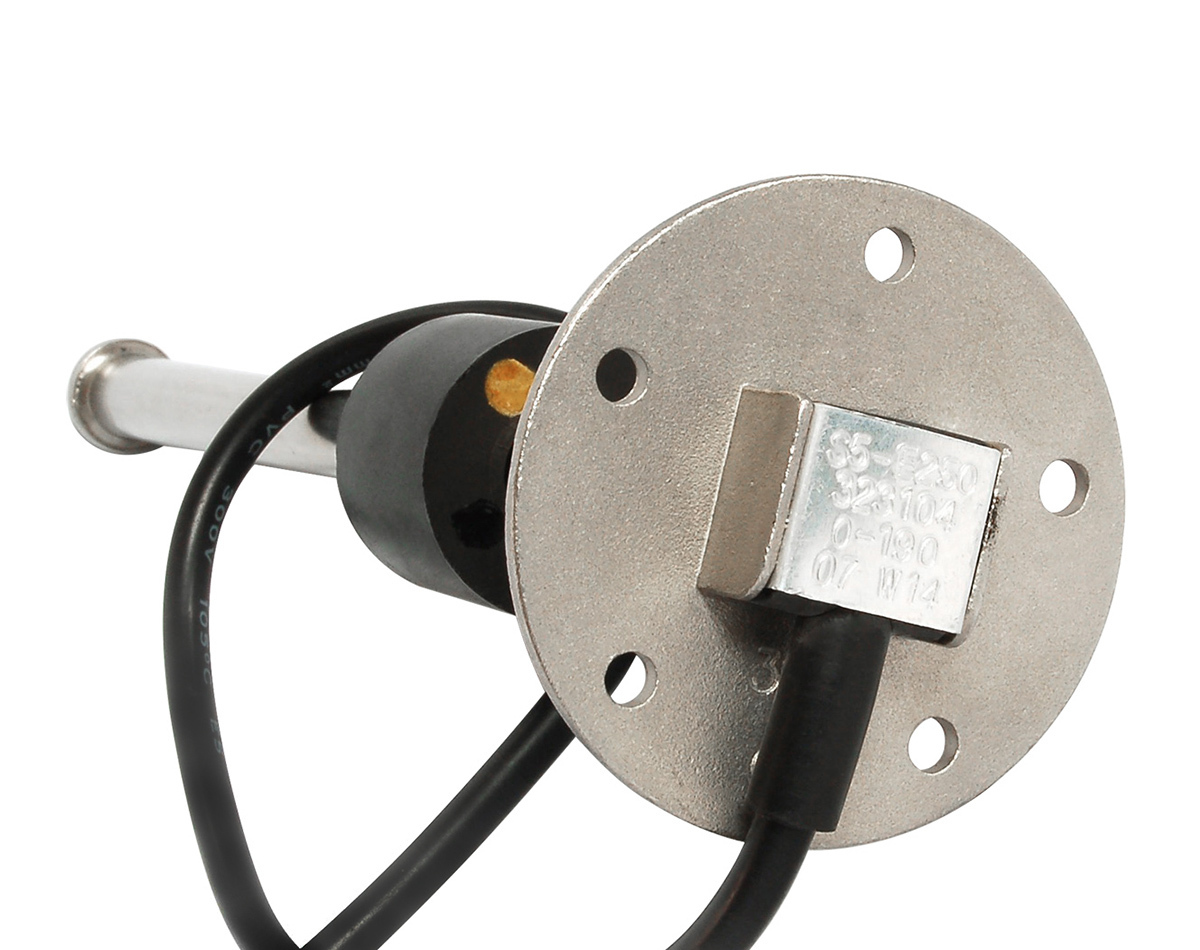

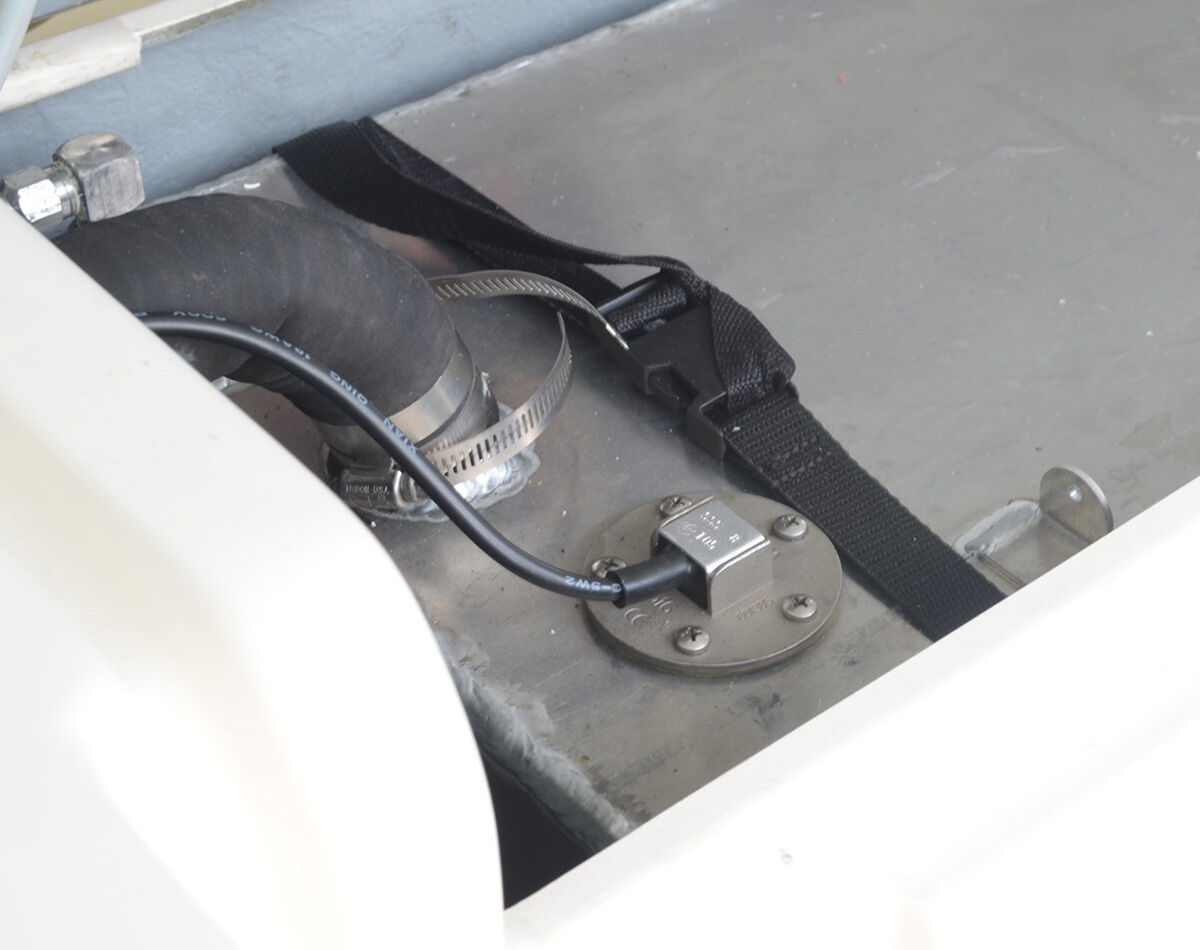

Write A ReviewThe KUS S5 tank fuel/liquid level sending unit is widely used in marine, on-road, off-road, generator set, and industrial applications.
It utilizes reed switch and magnetic field technology, which gives the advantage of being considerably more durable and reliable compared to the older thick-film swing arm type level sender.
Additionally, within this type of tank level sender it features the float as the only moving part, therefore minimizing potential mechanical failures and offering protection against vibration.
Rated 240-30 Ohm - You must match the same Ohms rated senders with gauges.
Length is measured from underside of the flange to the base of the shaft.
Features:
| Output Signal: | 240-33 OHMs |
|---|---|

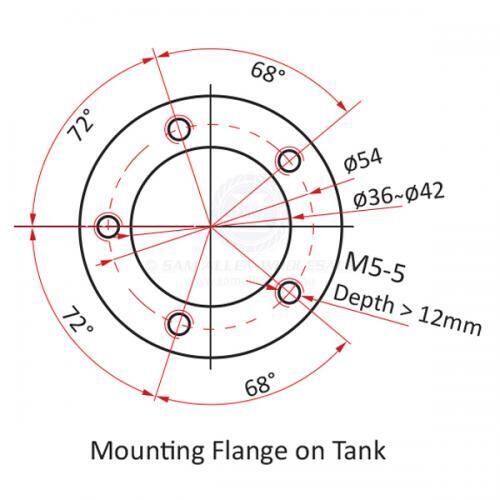

| SAE Standard: | 5 mounting holes |
| Material: | Body: 316 Stainless Steel / Cable: PVC / Float: NBR |
| Protection Rating: | IP67: Dust tight + protected from temporary submersion in water (30mins at 1m) |
| Float Diameter: | 33mm |
| Resolution Range: | 21mm |
| Operational Temperature: | -40°C ~ +85°C |
| SKU | JPW-P-JPW2476 |
| Brand | KUS |
