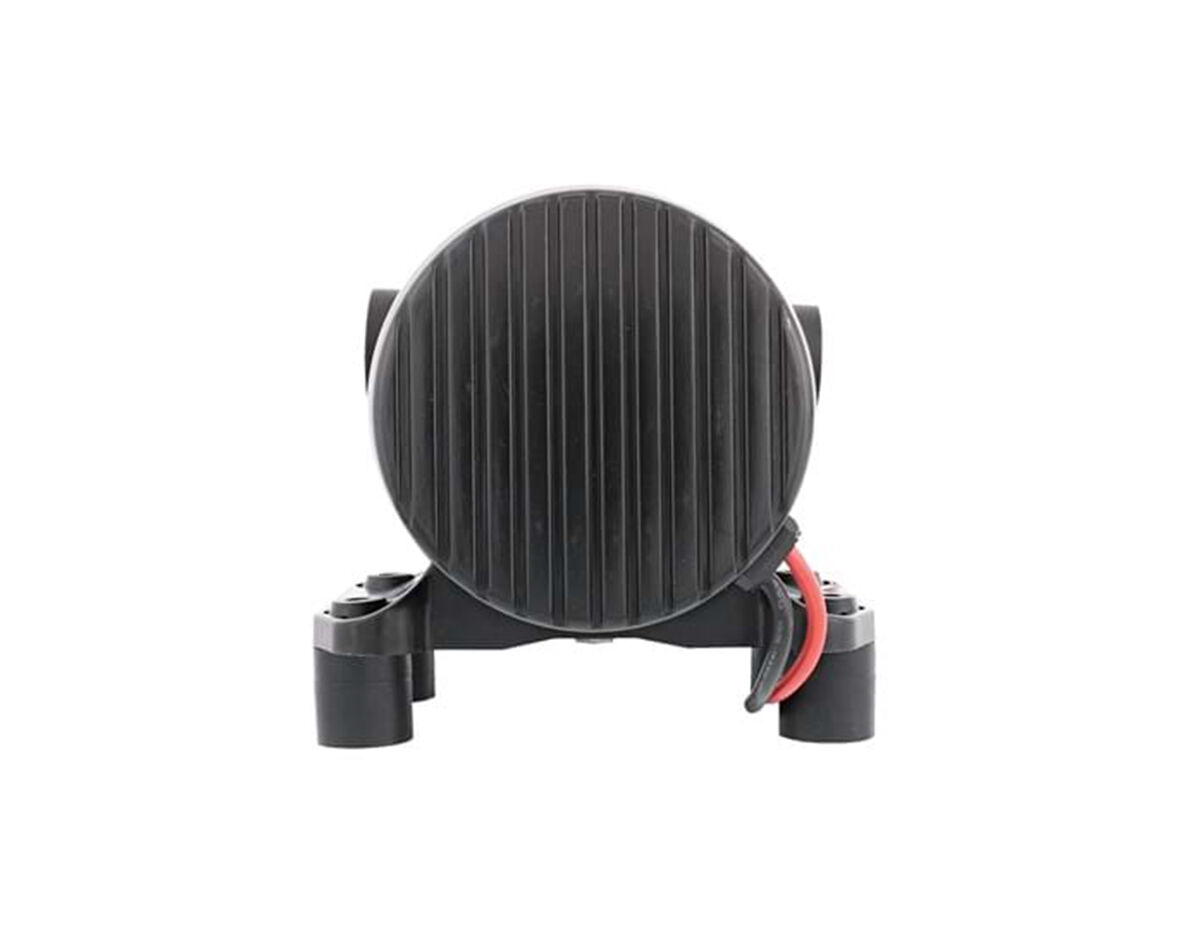

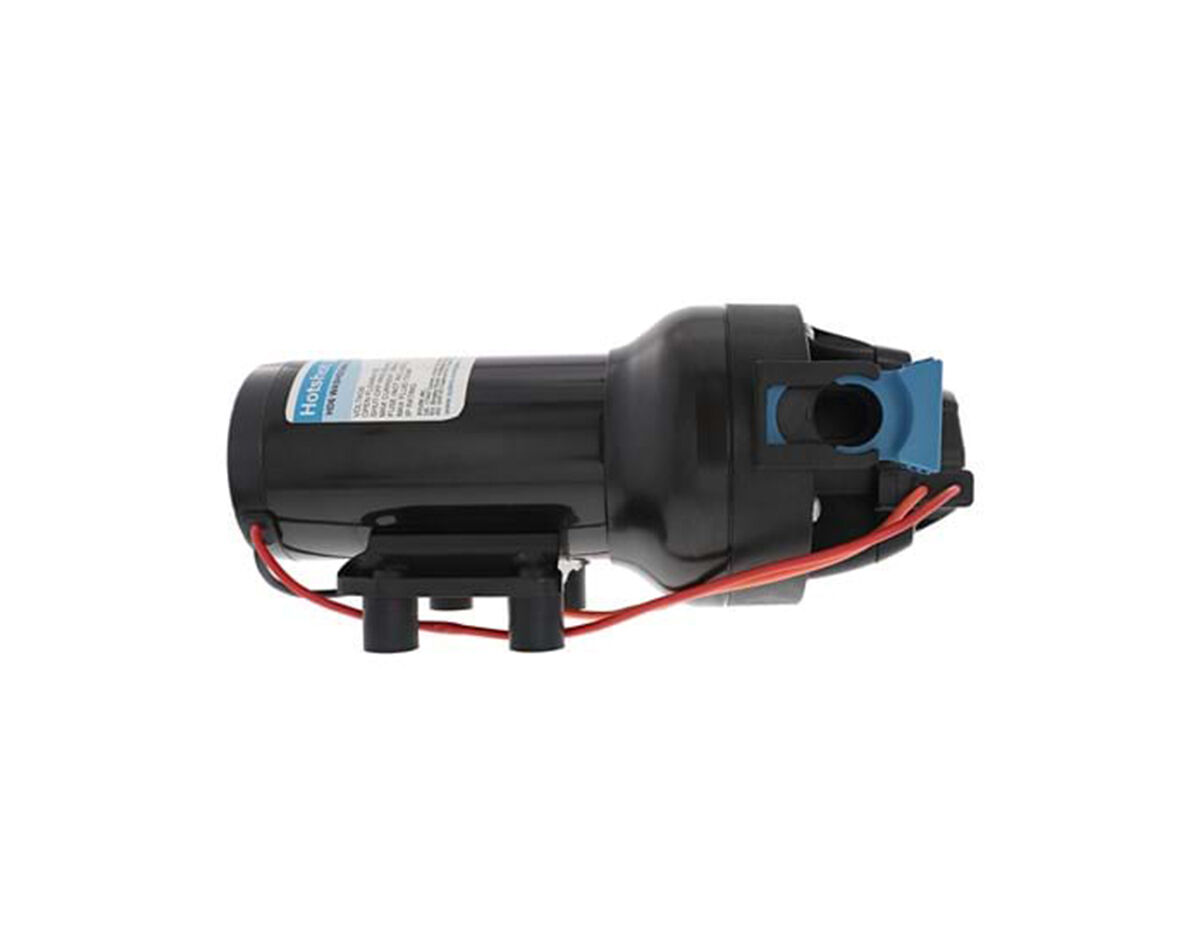

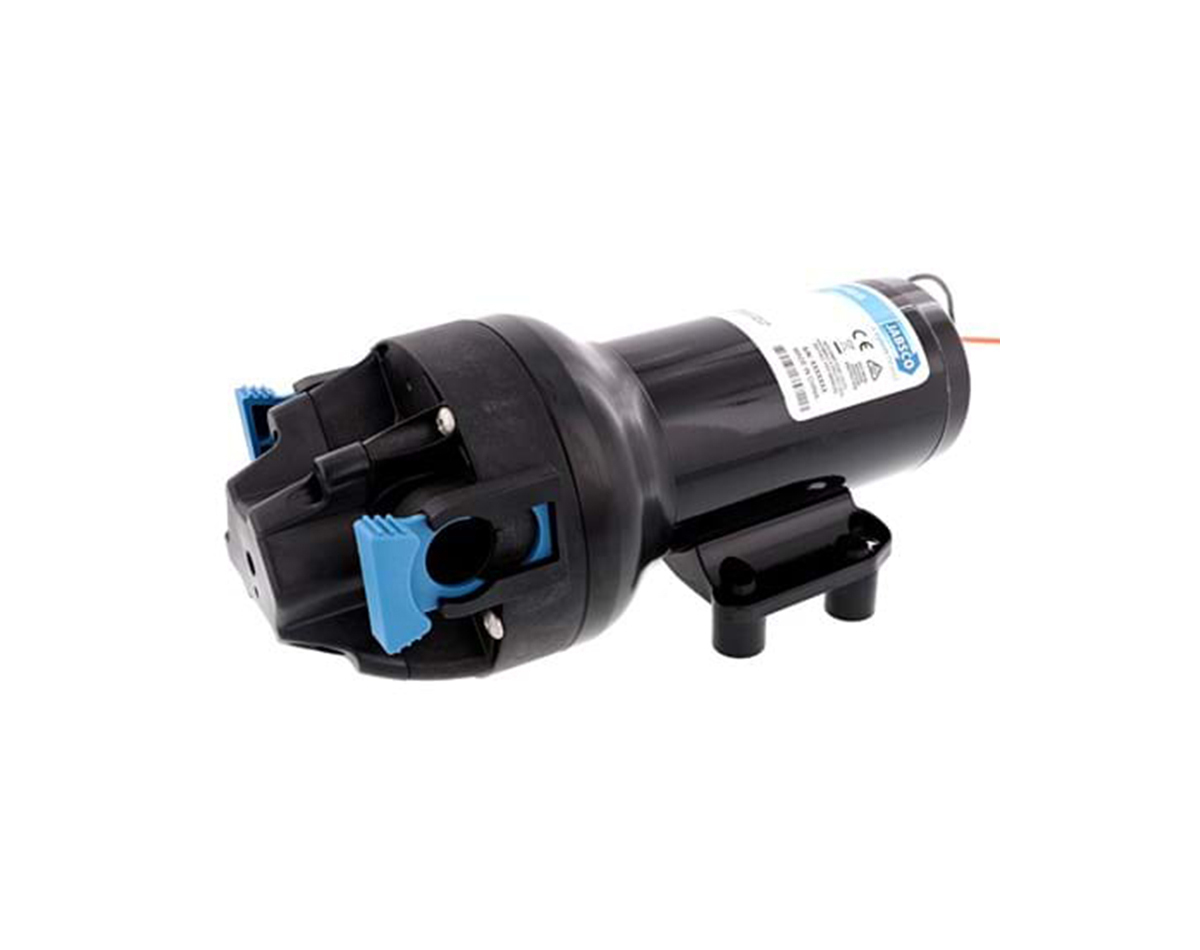

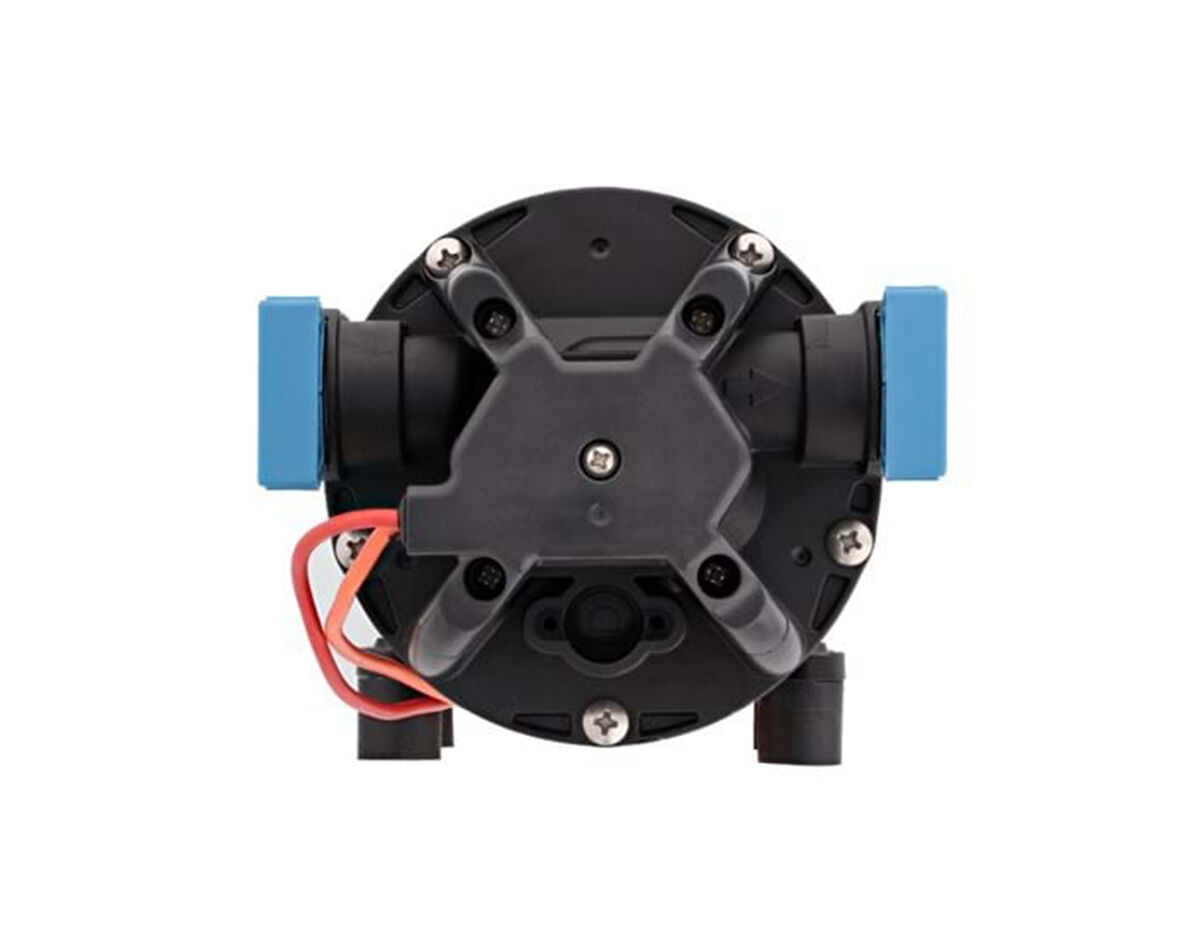

Write A ReviewThe largest, most powerful Jabsco washdown pump, the HotShot HD6 features a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.
Pumping 6 gallons per minute at almost 70psi, this is an extremely reliable high-flow and high-pressure diaphragm pump.
The HotShot HD6 will provide years of clean decks and satisfaction.

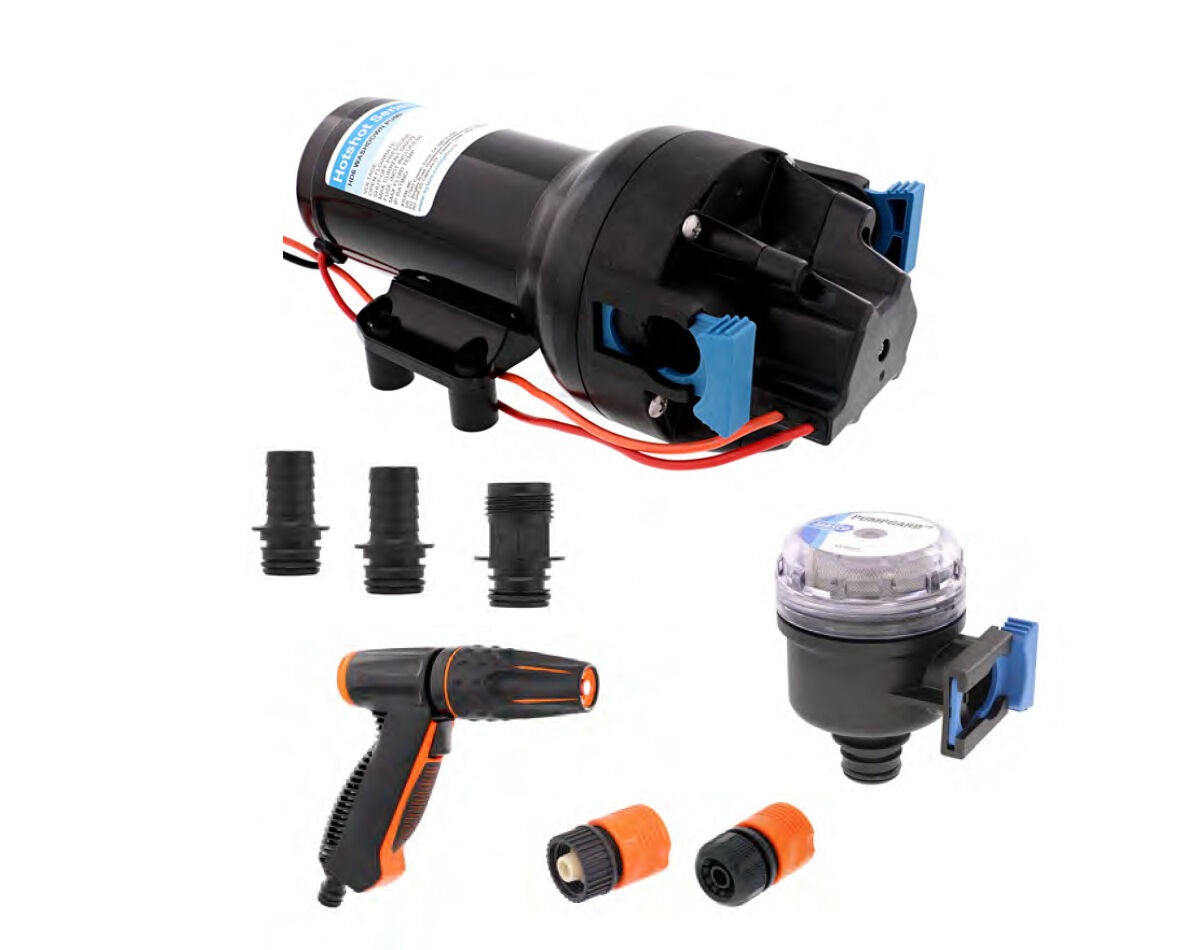

Kit includes:
Features:
| JPW SKU | J20-252 | J20-253 |
|---|---|---|
| Jabsco Part No. | P601J-219N-3A | P602J-219N-3A |
| Replaces Old Versions | J20-152 (82605-0092) | J20-153 (82605-0094, 82505-0094, 82906-0094, 82905-0094, 32700-0394) |
| Voltage | 12V | 24V |
| Open Flow | 6 GPM (22.7 LPM) | 6 GPM (22.7 LPM) |
| Shut-off Pressue | 70 PSI (4.8 bar) | 70 PSI (4.8 bar) |
| Max Current Draw | 19A | 9.4A |
| Recommended Fuse Size | 25A | 15A |
| Motor Design | Brushed, permanent magnet TENV |
|---|---|
| Pumphead upper housing material | Fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temp Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-priming Capability | 7ft min (2.1m min) |
| Certifications | CE, ISO8846, RCM |
| Ingress protection | IPX6 |
| Warranty | 3 years |
| SKU | JPW-P-J20-252 |
| Brand | Jabsco |
