The HotShot HD4 features a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.
Help other Suncity Motorcycles users shop smarter by writing reviews for products you have purchased.
Write A ReviewThe HotShot HD4 features a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life.
Pumping 4 gallons per minute at almost 60psi, this is an extremely reliable high-flow and high-pressure diaphragm pump.
The HotShot HD4 will provide years of clean decks and satisfaction.

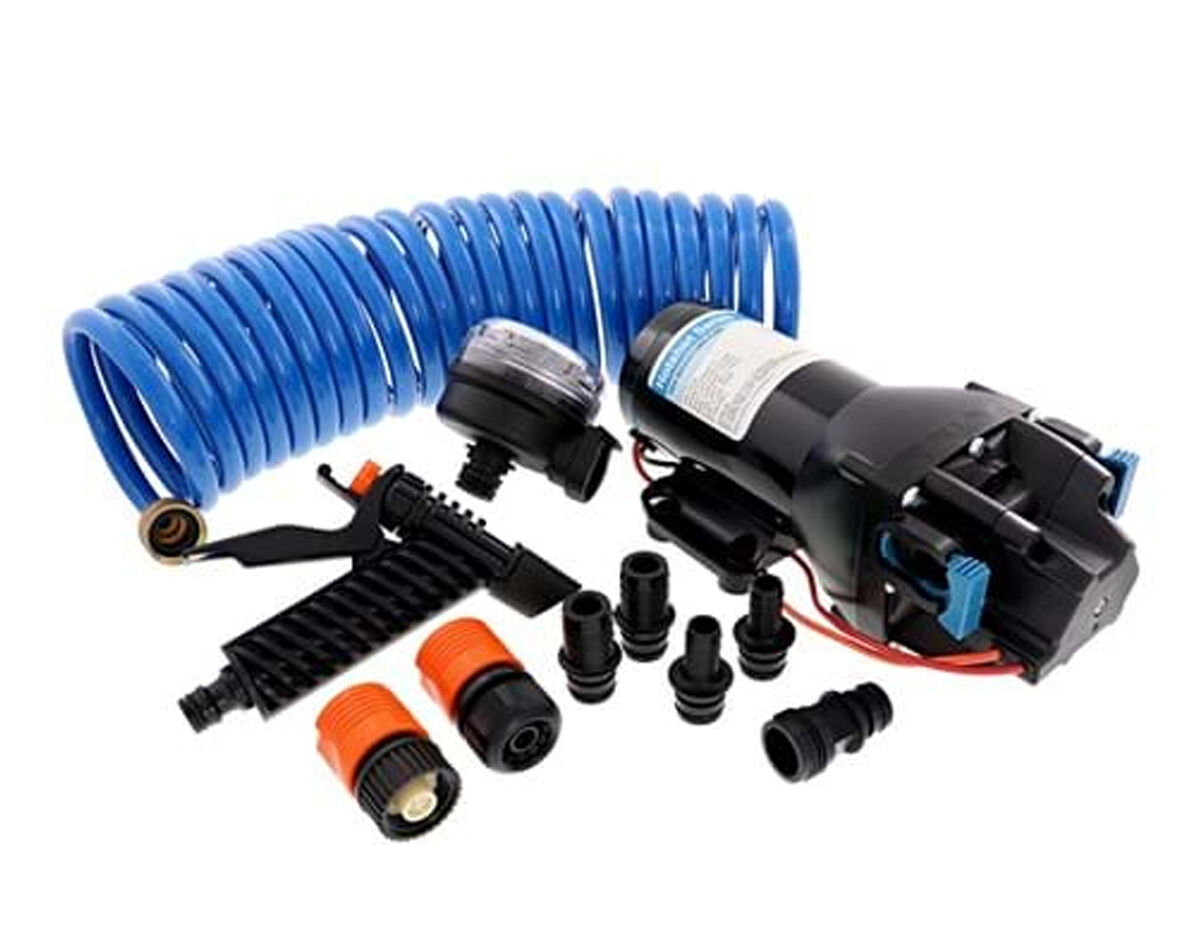

Kit includes:
Features:
| JPW SKU | J20-262 |
|---|---|
| Jabsco Part No. | Q401J-118N-4A |
| Replaces Old Versions | J20-162 (32900-0092, 32901-0092, 82904-0092) |
| Voltage | 12V |
| Open Flow | 4 GPM (15.1 LPM) |
| Shut-off Pressue | 60 PSI (4.1 bar) |
| Max Current Draw | 11A |
| Recommended Fuse Size | 20A |
| Motor Design | Brushed, permanent magnet TENV |
|---|---|
| Pumphead upper housing material | Fiber reinforced polypropylene |
| Diaphragm | Co-molded TPV |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temp Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-priming Capability | 8ft min (2.4m min) |
| Certifications | CE, ISO8846, RCM |
| Ingress protection | IPX6 |
| Warranty | 3 years |
| SKU | JPW-J20-262 |
| Brand | Jabsco |
