Write A ReviewInstalled to provide on‐demand flow and pressure of freshwater to galleys, showers, washing machines, etc. These pumps are equipped with a bypass which enables smoother flow and decreases cycling, and provide similar pressure to that in a home on land.
These HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. With an open flow rate of 6 GPM (22.7 LPM) and choice of either 40PSI (2.8 bar) or 60 PSI (4.1 bar), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint.
Jabsco’s updated and improved lineup of freshwater supply pumps are designed to provide years of satisfactory service in applications both large and small.

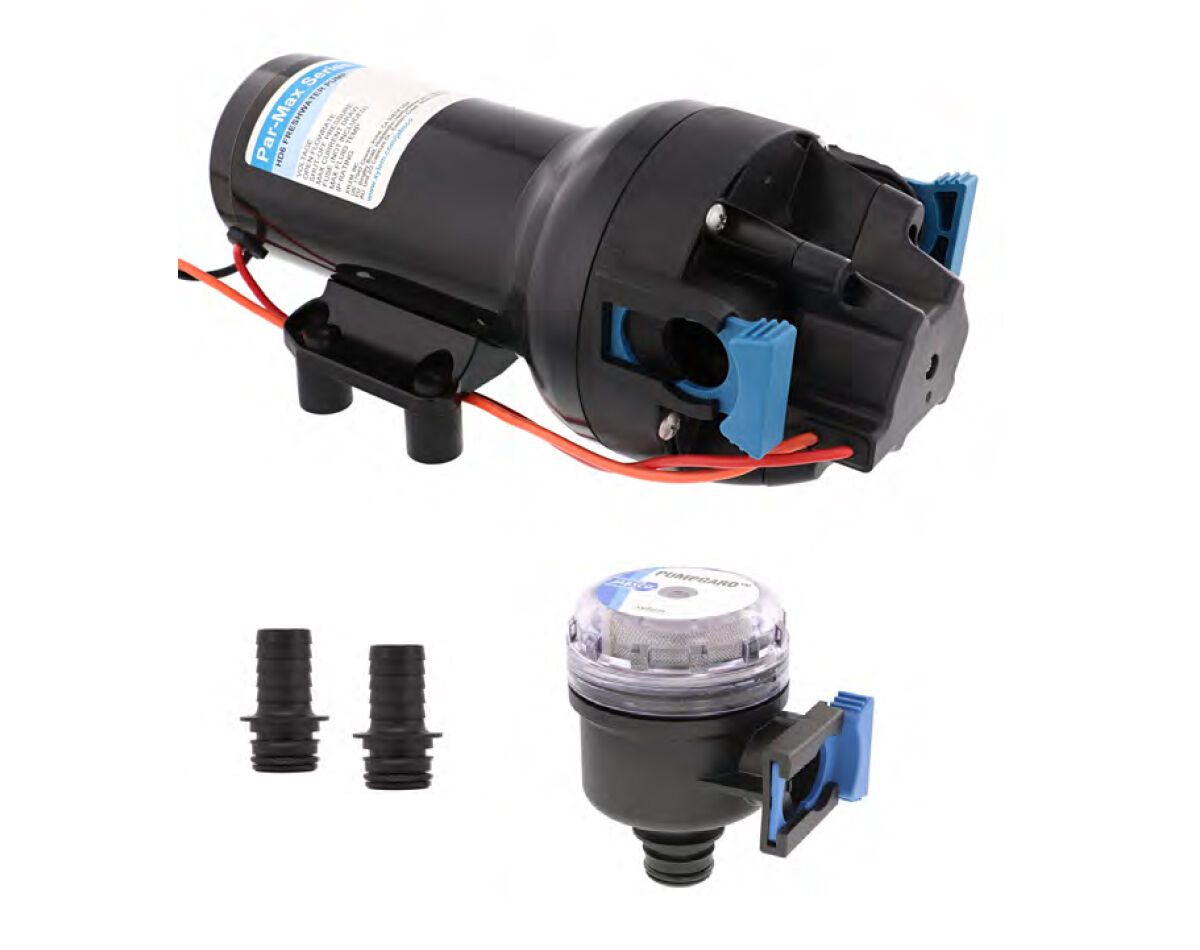

Kit includes:
Features:
| JPW SKU | J20-282 | J20-283 | J20-284 | J20-285 |
|---|---|---|---|---|
| Jabsco Part No. | P601J-215S-3A | P602J-215S-3A | P601J-218S-3A | P602J-218S-3A |
| Replaces Old Versions | - (82600-0292) | - (82600-0294) | J20-184 (82600-0092) | J20-185 (82600-0094) |
| Voltage | 12V | 24V | 12V | 24V |
| Open Flow | 6 GPM (22.7 LPM) | 6 GPM (22.7 LPM) | 6 GPM (22.7 LPM) | 6 GPM (22.7 LPM) |
| Shut-off Pressue | 40 PSI (2.8 BAR) | 40 PSI (2.8 BAR) | 60 PSI (4.1 BAR) | 60 PSI (4.1 BAR) |
| Max Amp Draw | 15A | 7A | 18A | 8A |
| Recommended Fuse Size | 25A | 15A | 25A | 15A |
| Motor Design | Brushed, permanent magnet TENV |
|---|---|
| Pumphead upper housing material | Fiber reinforced polypropylene |
| Diaphragm | Santoprene |
| Check Valves | EPDM |
| Max Inlet Pressure | 30 PSI (2.1 Bar) |
| Fluid Temp Range | 32°F – 140°F (0°C – 60°C) |
| Dry Self-priming Capability | 7ft min (2.1m min) |
| Certifications | CE, ISO8846, RCM |
| Water Ingress protection | IPX6 |
| Warranty | 3 years |
Datasheets (for more information):
| SKU | JPW-P-J20-282 |
| Brand | Jabsco |
