Description

For boats from 7 to 15 metres (23 - 49ft)

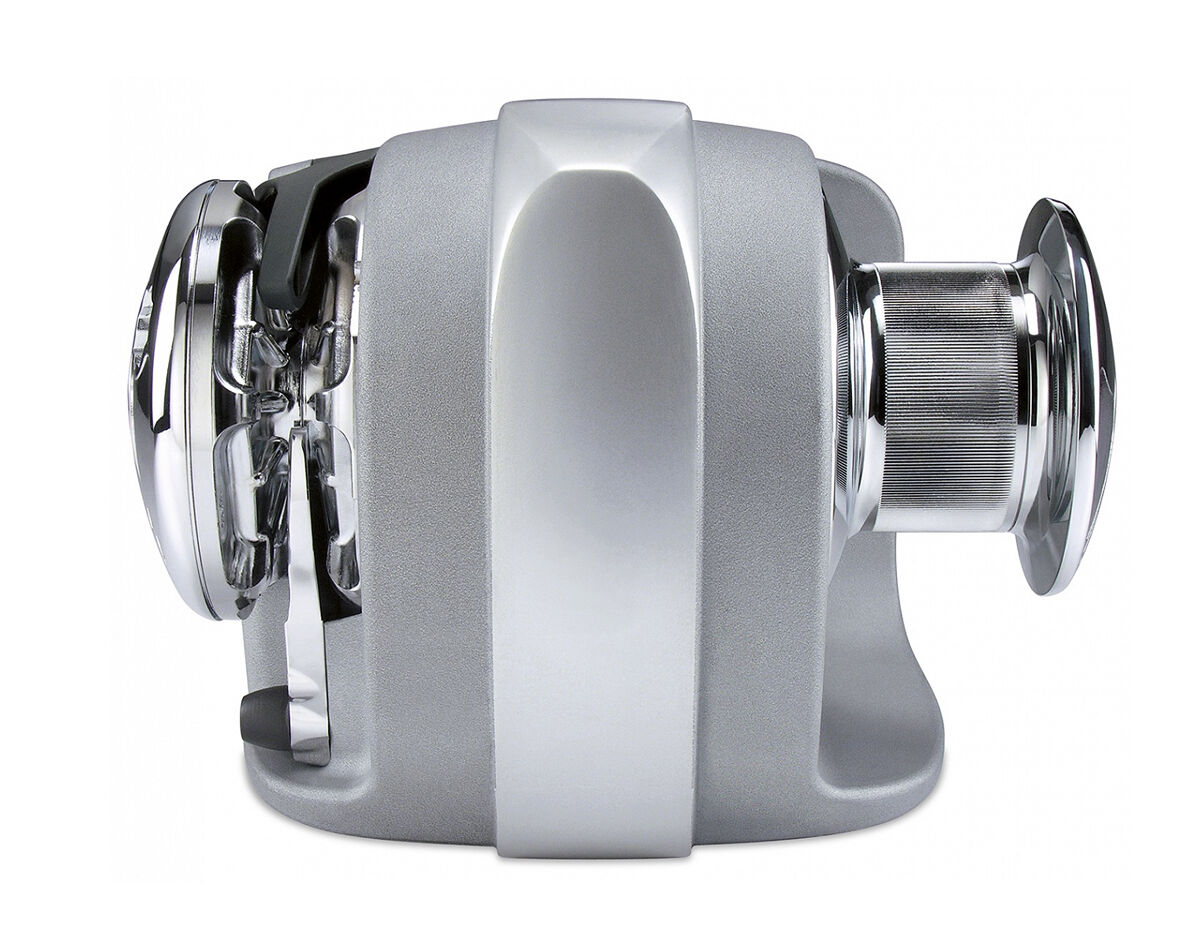

The Hector is the big brother of the Genius series of windlass, and it comes with built-in soilenoids for easy installation and is IP66 watertight. This winch is the best choice when there is little room in the anchor locker for a motor and gear box.

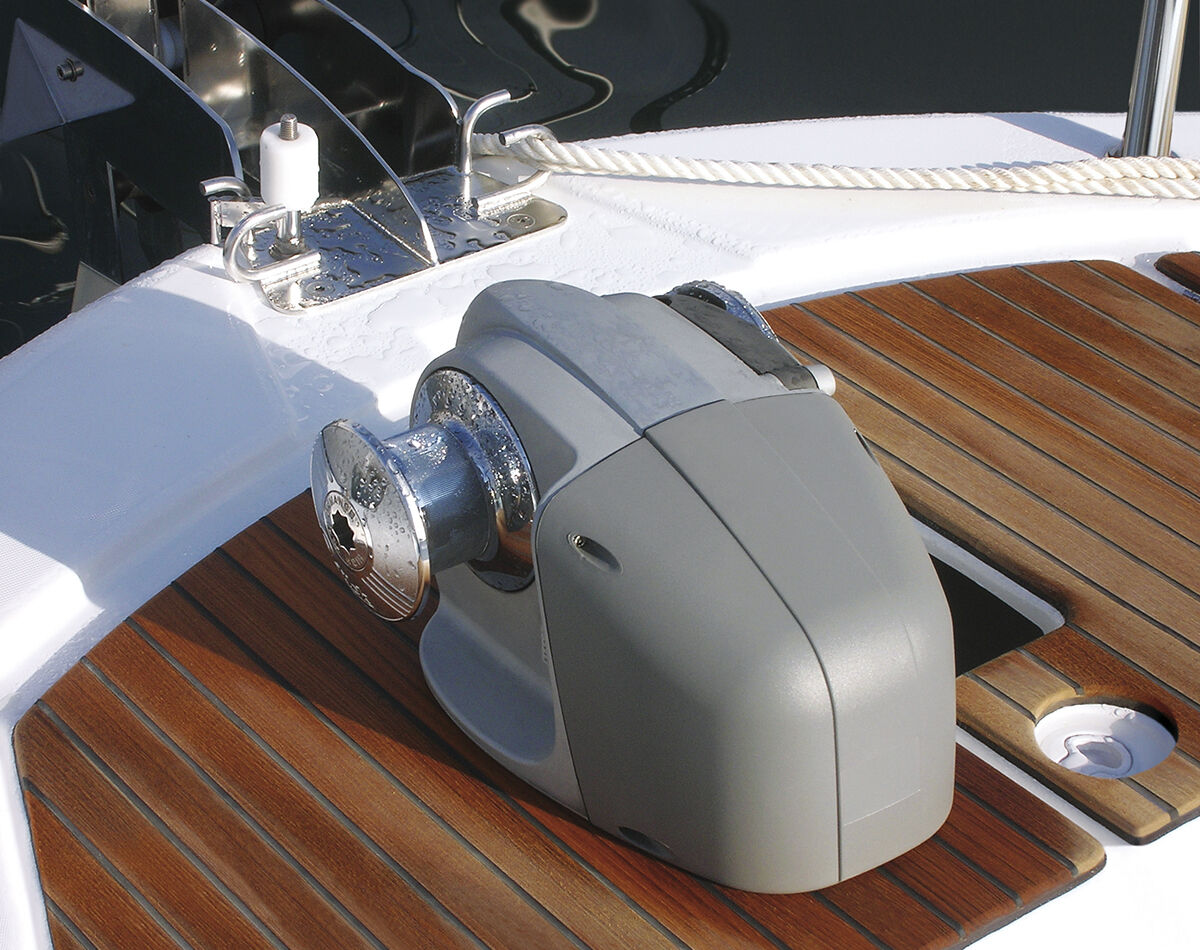

The Hector installs completely above deck.

Features:

Base in anodised aluminium in hard oxide
Jacket in composite material
8/10mm chain with 12/16 rope gypsy
Integrated solenoids
Emergency manual lift system
Manual Free Fall system
Integrated sensor and magnet for chain counter
3 year warranty from the date of sale

Standard Inclusions:

Clutch Release and Manual Lift Handle
Isolator/Circuit Breaker Panel

Optional Additions:

Foot Switches: Up-Down for the deck
Digital Chain Counters
Hand Held Remote Controls
Remote Up/Down Panel Switch

Note: Supplied with or without drum

Model	HC3 700	HC3 & HC3 D 1000	HC3 1500 (12v)	HC3 1500 (24v)
Watts	700w	1000w	1500w	1500w
Volts	12V	12 or 24V	12v	24v
Amps	90A	140A	150A	85A
Chain	8mm	8 or 10mm	10 mm	10mm
Rope Size	12mm	16mm	16mm	16mm
Max. Pull	1100kg	1300kg	1500kg	1500kg
Max. Working Load	300kg	400kg	450kg	550kg
Max. Chain Speed	26m/min	37.3m/min	37.5m/min	40m/min
Drive Shaft	Horizontal	Horizontal	Horizontal	Horizontal
Capstan Option	Yes	Yes	Yes	Yes
Chain/Rope Gypsy	Yes	Yes	Yes	Yes
Boat Length	7-10m	10-13m	12-15m	12-15m
