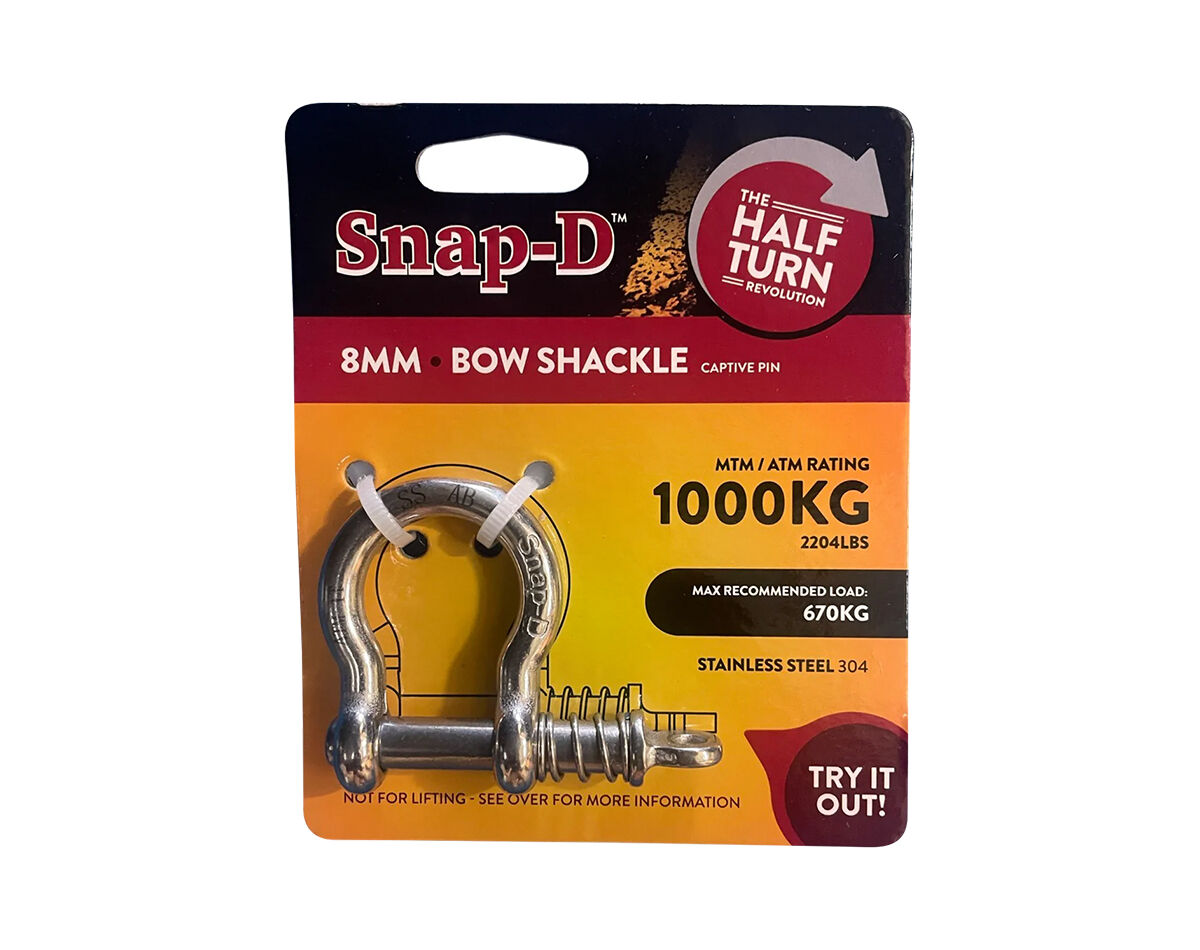

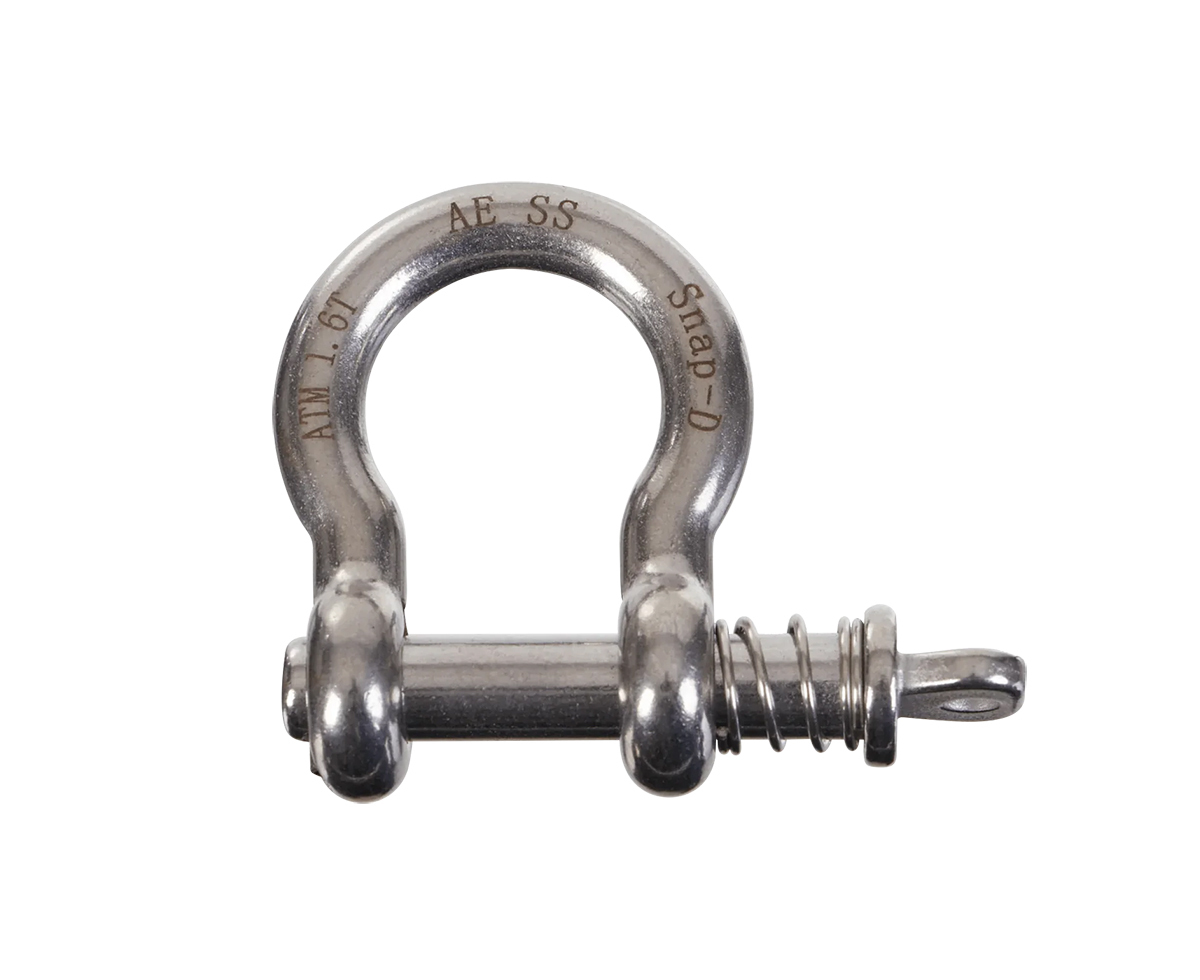

Heavy Duty Bow Shackles, made from premium 304-grade stainless steel, with a captive pin that stays securely in place and can never be fully removed or lost.

Each shackle has the clear load rating stamped on it and complies with Australian Towing Standards.

Add 2-3mm to the shackle size to allow for the roll pin to fit through the desired hole.

ay goodbye to the hassle of lost pins, rust, or seized shackles.

Features:

304-grade stainless steel
Stainless steel sping
Captive pin
Stamped with Load Rating
Corrosion-resistant and built to last
Complies with Australian Towing Standards (Meets AS4177:2004/4B)
Designed for towing and general use, not for lifting.
Avoid side loading or shock loading

Please note: the Maximum Recommended Load is a safe load recommendation. The Max Towing Mass is the maximum load that should ever be applied to that shackle.

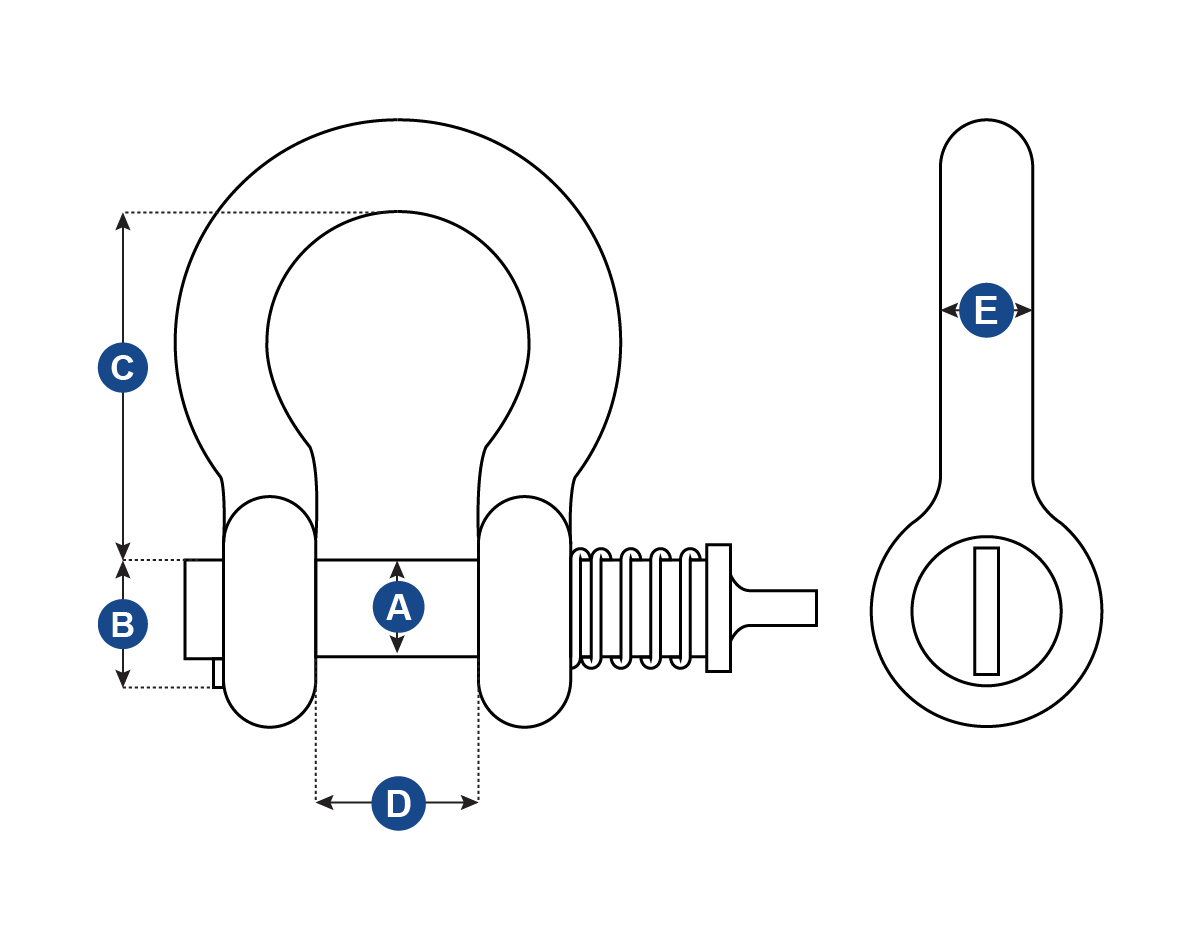

JPW SKU	Shackle Size	Fits Hole Size (including pin)	Max Recommended load	Max Towing Mass
JPW4821	8mm	10mm	670kg	1000kg
JPW4822	10mm	12mm	1070kg	1600kg
JPW4823	13mm	15mm	1670kg	2500kg
JPW4824	19mm	22mm	3000kg	4500kg
