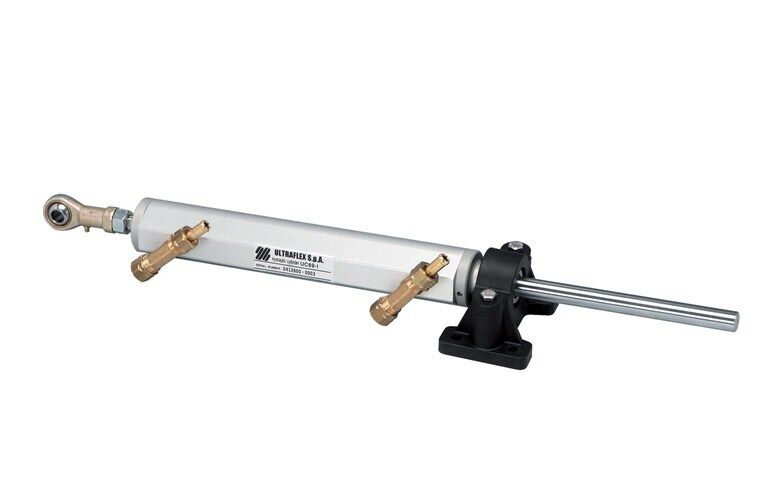

Cylinder Inboard for Hyco-1 Kit UC69-1 ( Balanced

Free Shipping over $99*!

Customer Service

08 9921 6888

0

$0.00

0

$0.00

+ PARTS FINDER

+ PARTS FINDER

0

$0.00

Ultraflex UC95-OBF Hydraulic Cylinder Front Mount 175HP

From $1,092.59

Ultraflex UC130-SVS High Performance SilverSteer Cylinder 350HP

From $1,615.01

Ultraflex UC120E-OBF-1 Integra Front Mounted Cylinder Starboard

$2,924.01

Ultraflex UC132-OBS Hydraulic Cylinder Stern Drive Side Mount Unbalanced

$867.47

UC128-SVS SilverSteer Outboard Front Mount Hydraulic Cylinders

From $1,252.55

UC128-OBF Outboard Front Mount Hydraulic Cylinders

From $1,401.05

Cylinder Stern Drive UC133-IOB ( Balanced )

$1,112.66

Reviews

Be The First To Review This Product!

Help other Suncity Motorcycles users shop smarter by writing reviews for products you have purchased.

Write A Review

Description

Suits UP20 series helms
Balanced: the number of turns lock-to-lock is equal port to starboard and vice versa
Recommended for inboards up to 8m where maximum boat speeds do not exceed 25 knots
These cylinders are recommended for use with UP20 series helms and pre-assembled hoses (KIT OB and KIT OB/R5)

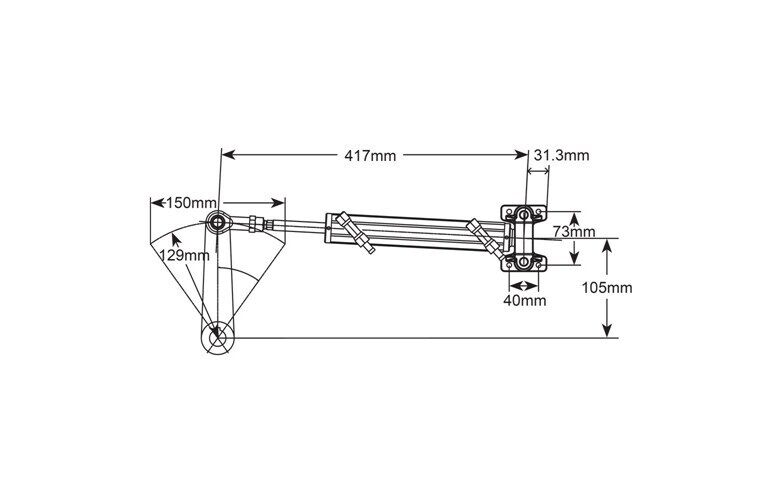

Type	UC69-I
Rod Diameter	14mm
Volume	69cc - 4.2 cubic inch
Torque	32kg
Output Force	168kg
Inside Diameter	25mm
Stroke	150mm
9.5mm Fittings	For high pressure flex hose
Wheel Turns	3.5 turns (UP20)
