Help other Suncity Motorcycles users shop smarter by writing reviews for products you have purchased.

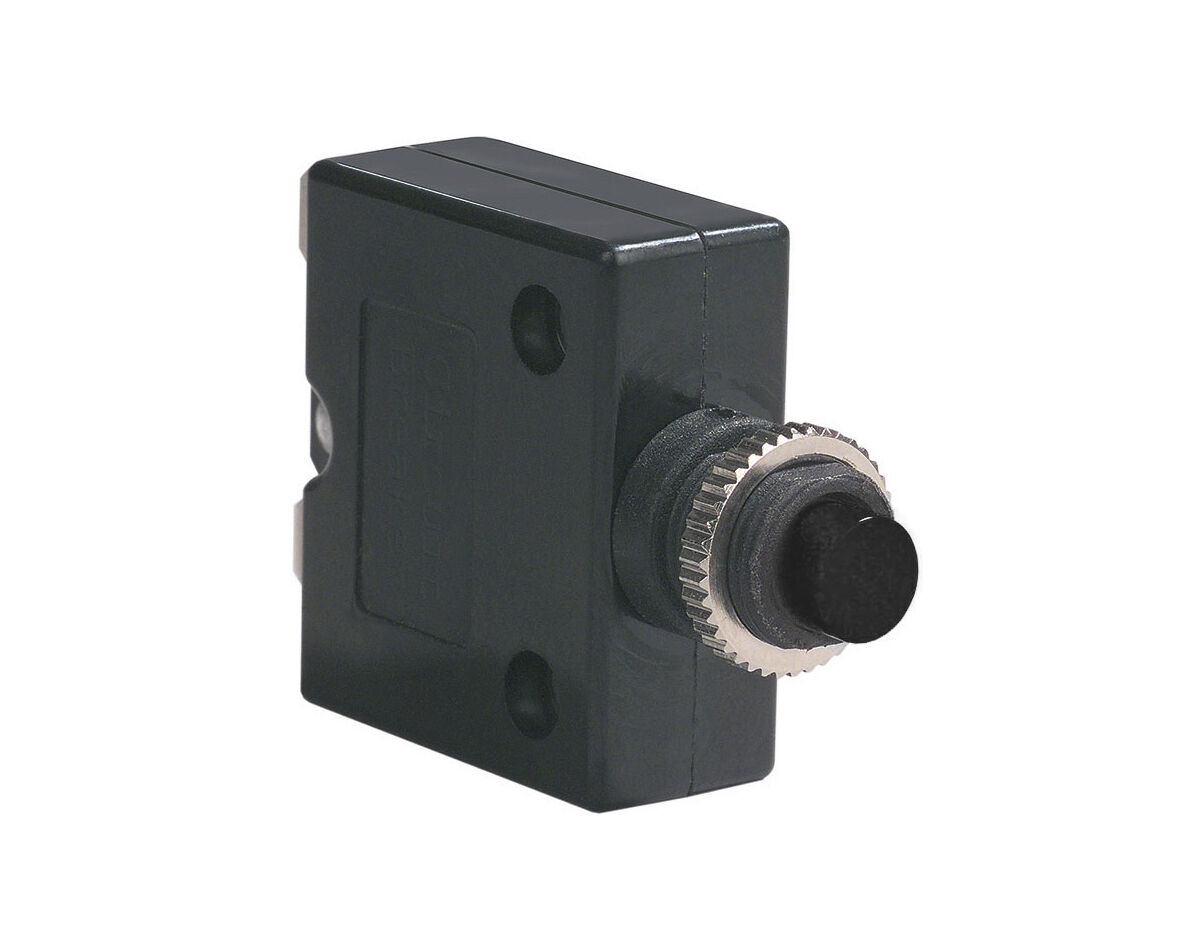

Write A ReviewThe popular CLB-Series miniature circuit breakers from Carling Technologies offer a reliable, cost effective solution for circuit protection requirements.
Available in a range of current ratings up to 40 Amps and is suitable for both AC and DC extra low voltage applications.
Features:
Note: These switches are not waterproof. To allow for watertight installation, Carling Clear Silicon Boot to Suit Carling CLB is required (see related products).
| Voltage: | 48VDC / 250VAC |
|---|---|
| Dielectric Strength: | 2500 VAC/1 minute |
| Interrupting Capacity: | 2500 amps @ 32 VDC |
| Insulation Resistance: | 100M ohms |
| Voltage Drop: | < 0.25 V |
| Number of Poles | One |
| Actuator Style | Push to reset button |
| Mounting | M12 mounting bush fitted with a knurled nut |
| Operating Temp | -10°C to 60°C |

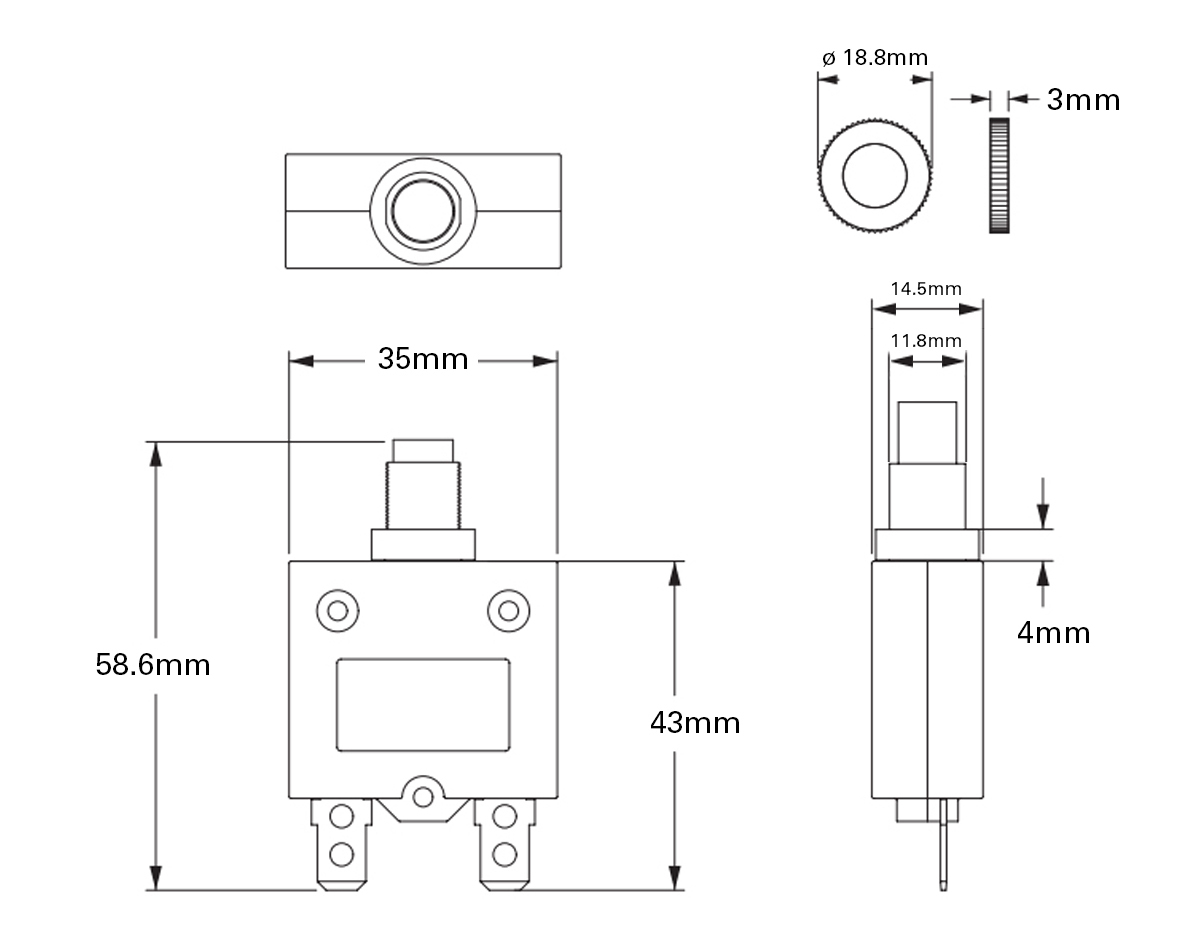

| Dimensions (overall) | 35mm (L) x 14.5mm (W) x 58.6mm (H) |
| SKU | JPW-P-JPW12770 |
| Brand | Carling Switches |
