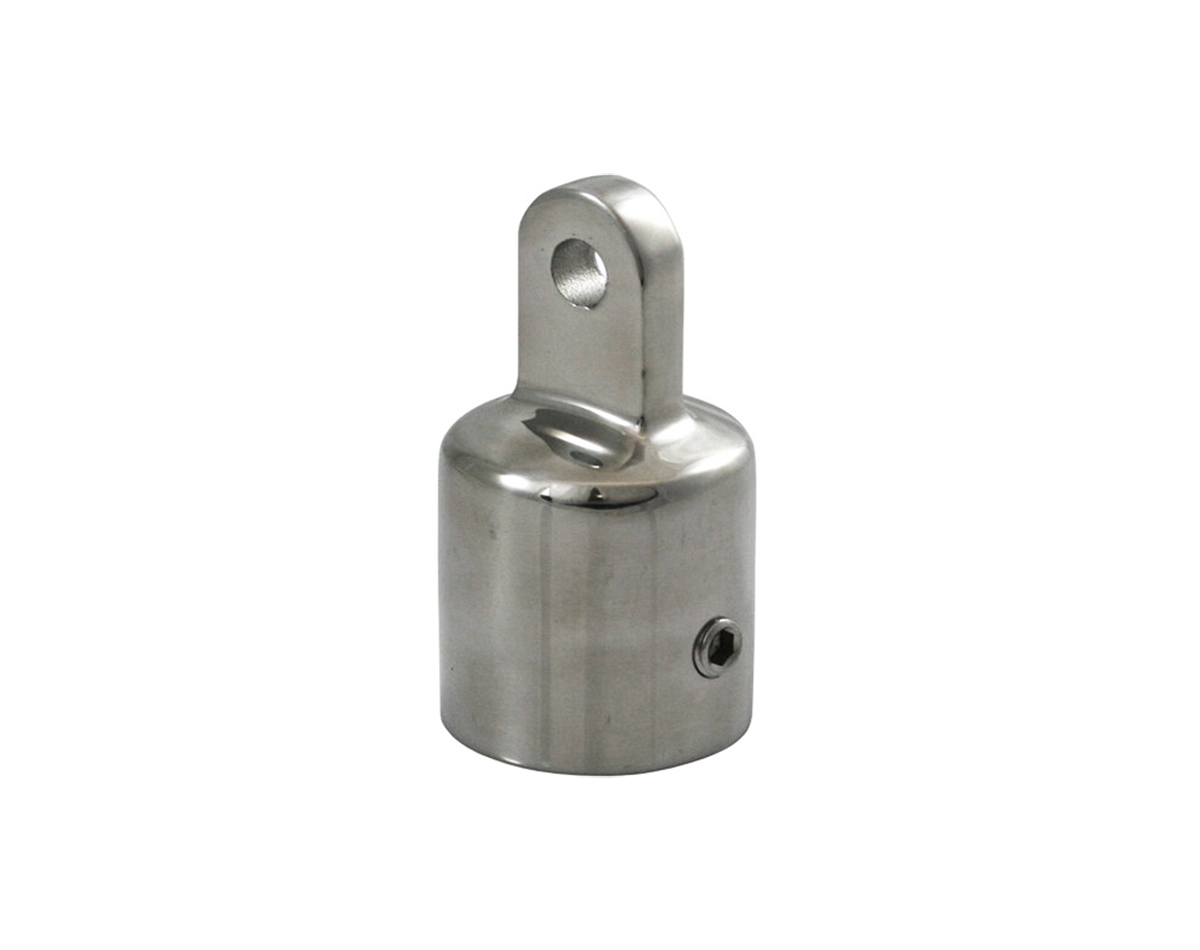

Write A ReviewExtra heavy duty canopy tube end cap fitting made from mirror polished cast 316 grade stainless steel.
Includes grub screw.
Fits on the outside of the tube - size shown is outside diameter of tube it suits.
Features:

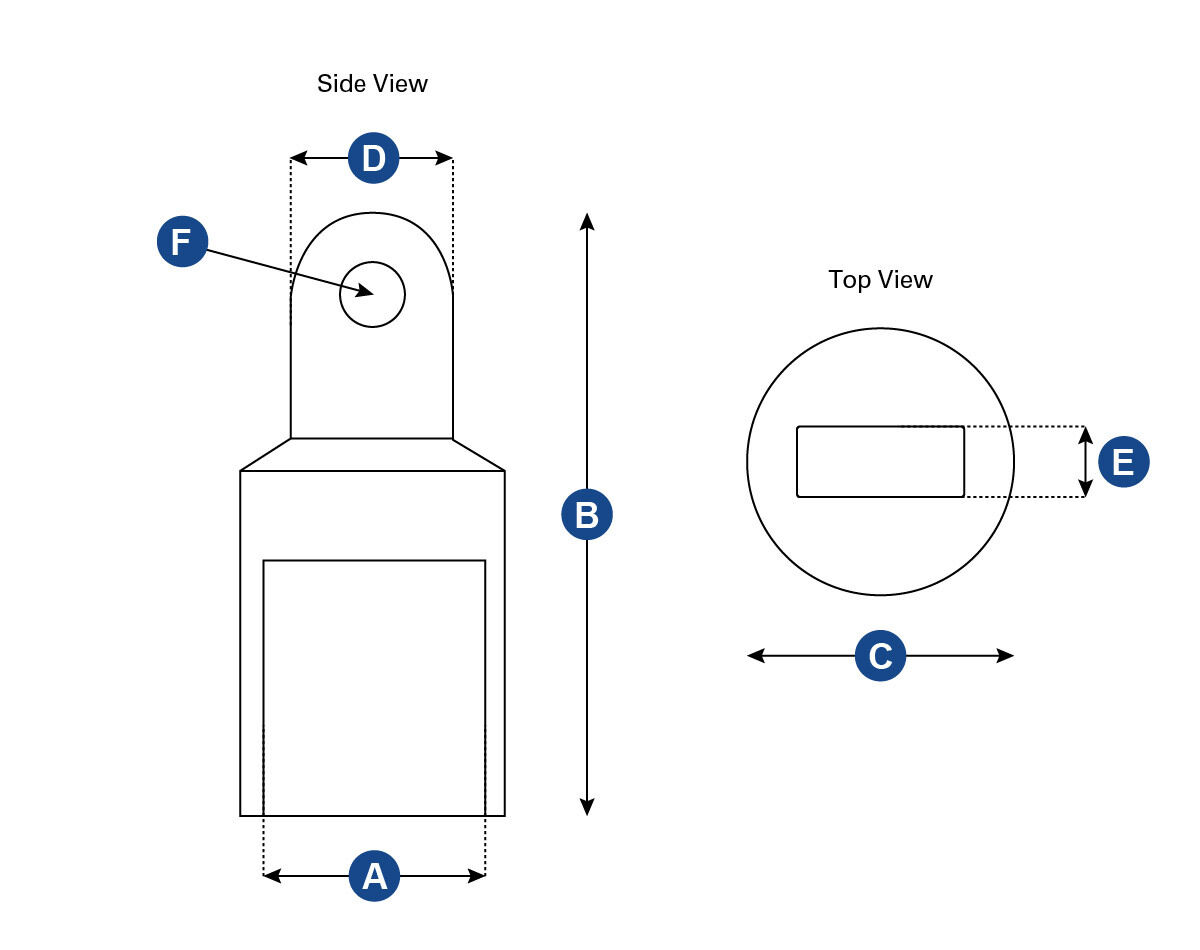

| JPW SKU | Suits Tube Size Outside Diameter | Dimensions (see diagram within images) | |||||
|---|---|---|---|---|---|---|---|
| Inside Diameter | Height | Overall Diameter | Tongue Width | Tongue Thickness | Eye Diameter | ||
| A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | ||
| JPW19119 | 20mm | 20 | 54.5 | 24.8 | 17.5 | 7 | 6.5 |
| JPW19104 | 22mm | 23 | 51 | 28 | 16.5 | 7 | 6.5 |
| JPW19105 | 25mm | 26 | 56 | 31 | 16.5 | 7 | 6.5 |
| SKU | JPW-P-JPW19119 |
| Brand | JPW Marine |
