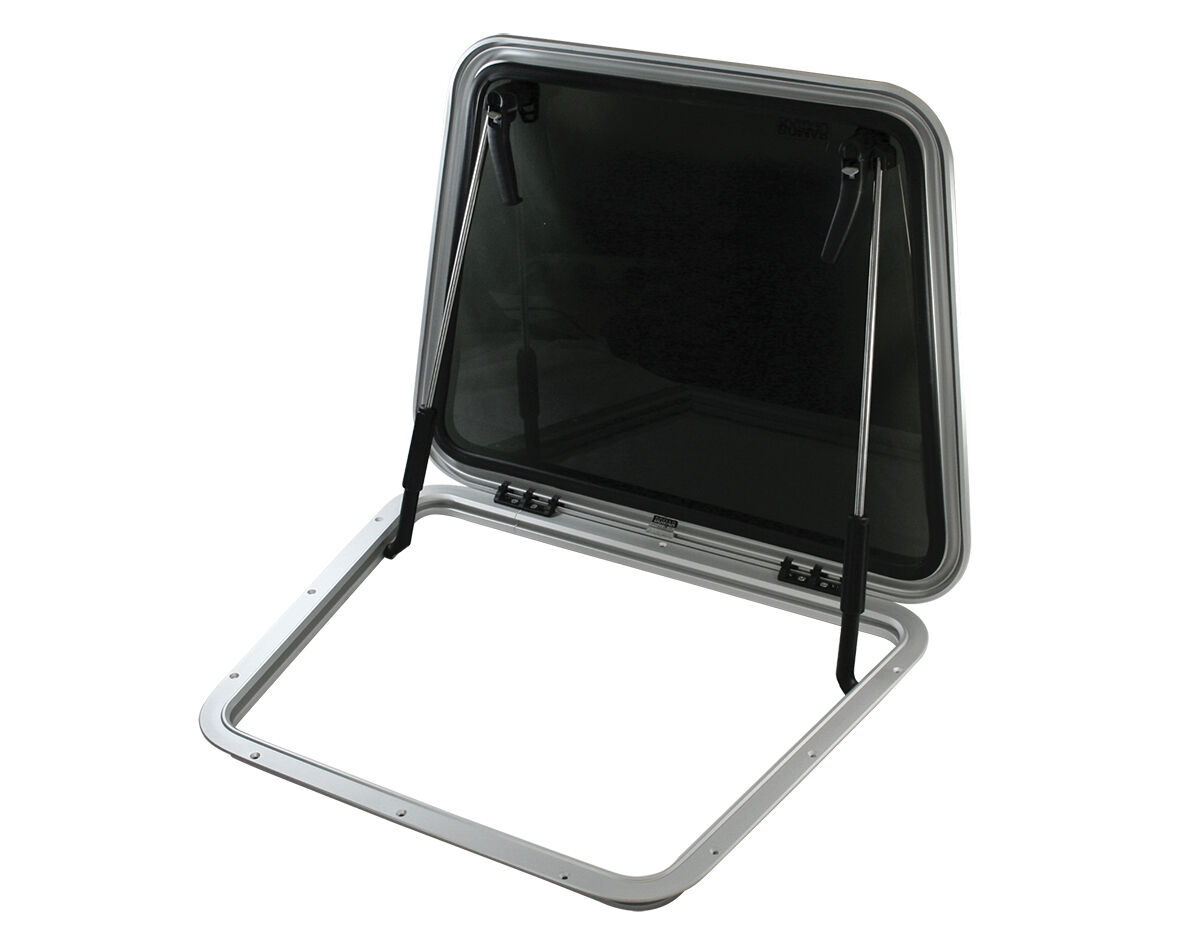

Write A ReviewBomar Low Profile NIBO Trapezoid Hatches design features heavy duty hinges and snag free opening to produce a neat and functional hatch as chosen by many major boat builders throughout the world. The trapezoid shape hatch is a very common hatch on small boats, use to get acess from the cabin to the bow.
Available in a choice of clear anodised, or white powder coated, heavy duty extruded aluminium frames with a tough smoke acrylic pane which assures privacy, yet allows in plenty of light. White acrylic panes are available to special order.
Features:
Sold Separately:

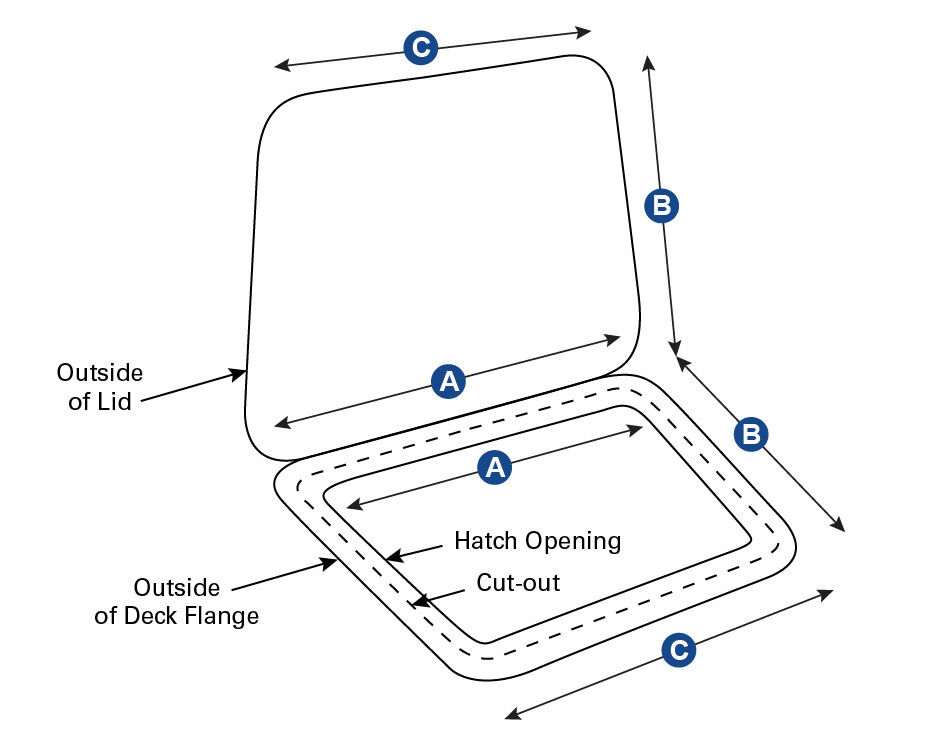

| JPW SKU (Silver Frame) | JPW SKU (White Frame) | Bomar MPN | Cut-Out A x B x C (mm) | Outside Deck Flange A x B (mm) | Hatch Opening A x B x C (mm) | Outside of Lid A x B x C (mm) | Trim Available |
|---|---|---|---|---|---|---|---|
| JPW170824 | JPW170825 | N1090 | 559 x 422 x 440 | 600 x 464 | 530 x 394 x 410 | 622 x 489 x 510 | Yes |
| JPW170826 | JPW170827 | N1094 | 645 x 489 x 508 | 686 x 530 | 616 x 460 x 478 | 713 x 557 x 578 | Yes |
| JPW170828 | JPW170829 | N1017 | 565 x 589 x 455 | 606 x 630 | 537 x 560 x 425 | 624 x 659 x 525 | No |
| SKU | JPW-P-JPW170824 |
| Brand | Bomar |
