Description

The M80 and M120 Sport tabs are ideal for boats with limited transom space. The unique batwing design provides 30% more lift than conventional trim tabs.

Hydraulic trim tabs are known for power, precision and durability. Get the most from your boat, no matter what the load, speed or sea conditions. Using the helm control, you can adjust the tabs individually or in unison to create the perfect cruising attitude. Increase speed and fuel economy, smooth a rough ride and get on plane faster.

Balance loads, plane faster, increase efficiency and performance with Bennett hydraulic trim tabs – known for power, precision, and durability.

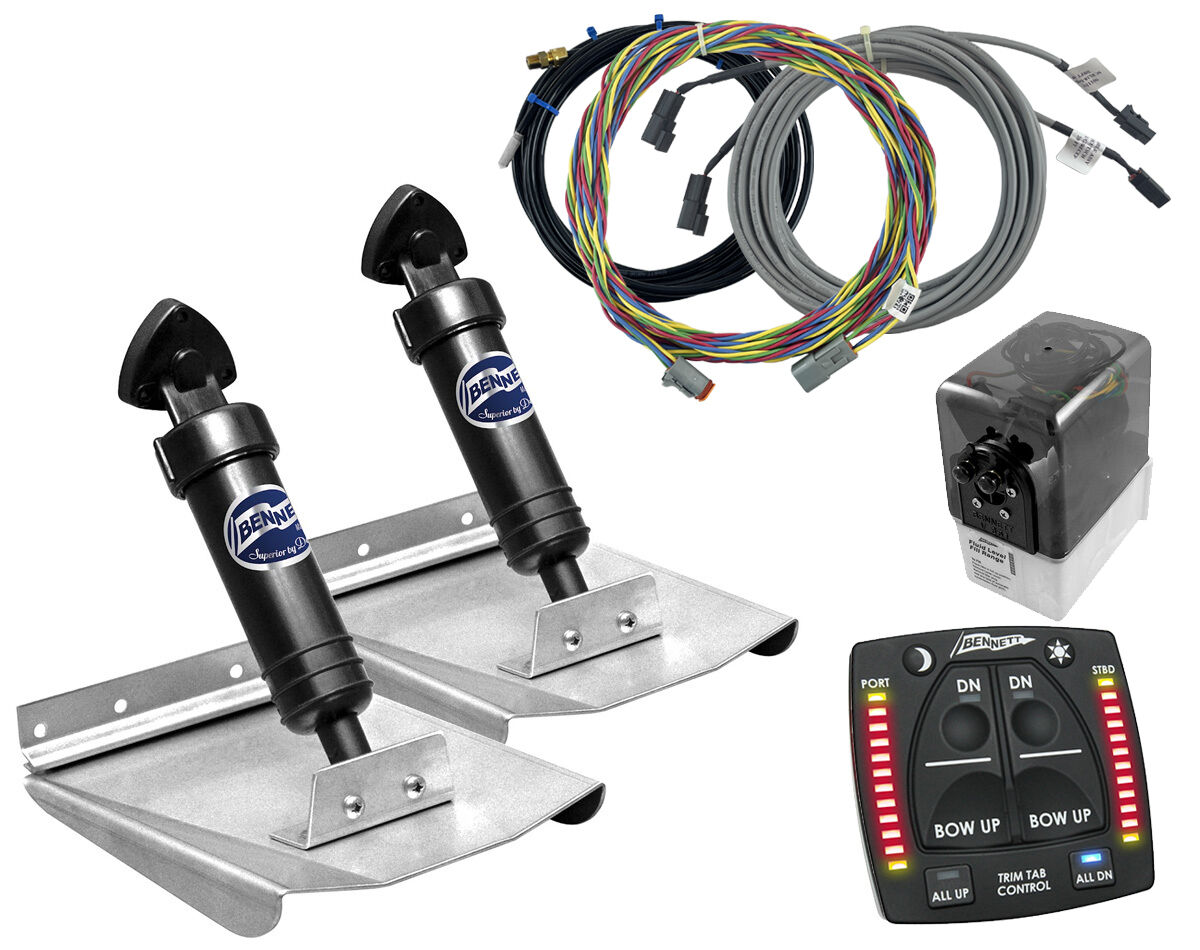

Kit contains:

2 x Trim plane assemblies (Sports Tab)
2 x Standard Hydraulic actuators (A1200S) Length: 290mm
1 x Hydraulic Power Unit (V351HPU1)
1 x Integrated Helm Control (OBI9000H)
All necessary Hydraulic wiring, tubing, hardware and installation video.

*See related products for complete Sport kits with other controls.

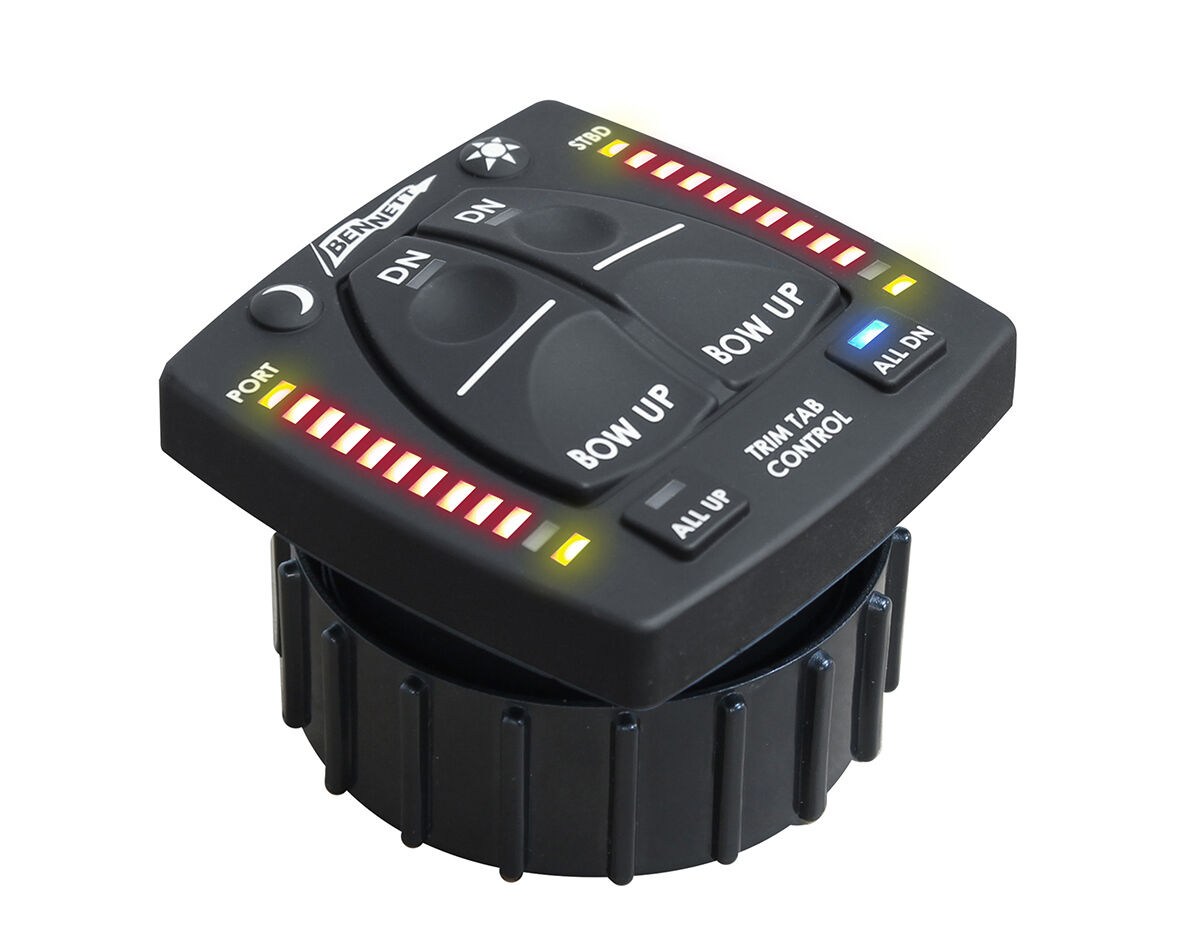

The Integrated Helm Control (OBI) is an attractive and user-friendly, stand-alone helm control engineered for ease of installation, without the need for an external control unit. The functionality and “brains” of the control unit are engineered directly into a single, space-saving, and simple-to-install keypad.

Convenient “All Up” and “All Down” buttons
Trim tab position LEDs always show you where your tabs are
Auto tab retraction (tabs retract up when the ignition is powered off)

Features:

Sport batwing tab design provides 30% more lift
Get on plane fast, and stay on plane at intermediate speeds.
Correct listing and uneven loads.
Improve visibility and safety.
Reduce pounding and eliminate porpoising.
Increase speed and fuel efficiency.
Low maintenance, long-term value, and easy to service.
Exclusive transom mount inter-locking tab design.
Short actuator length: 290mm (can be supplied with Standard 340mm or Extra Short 270mm upon request)

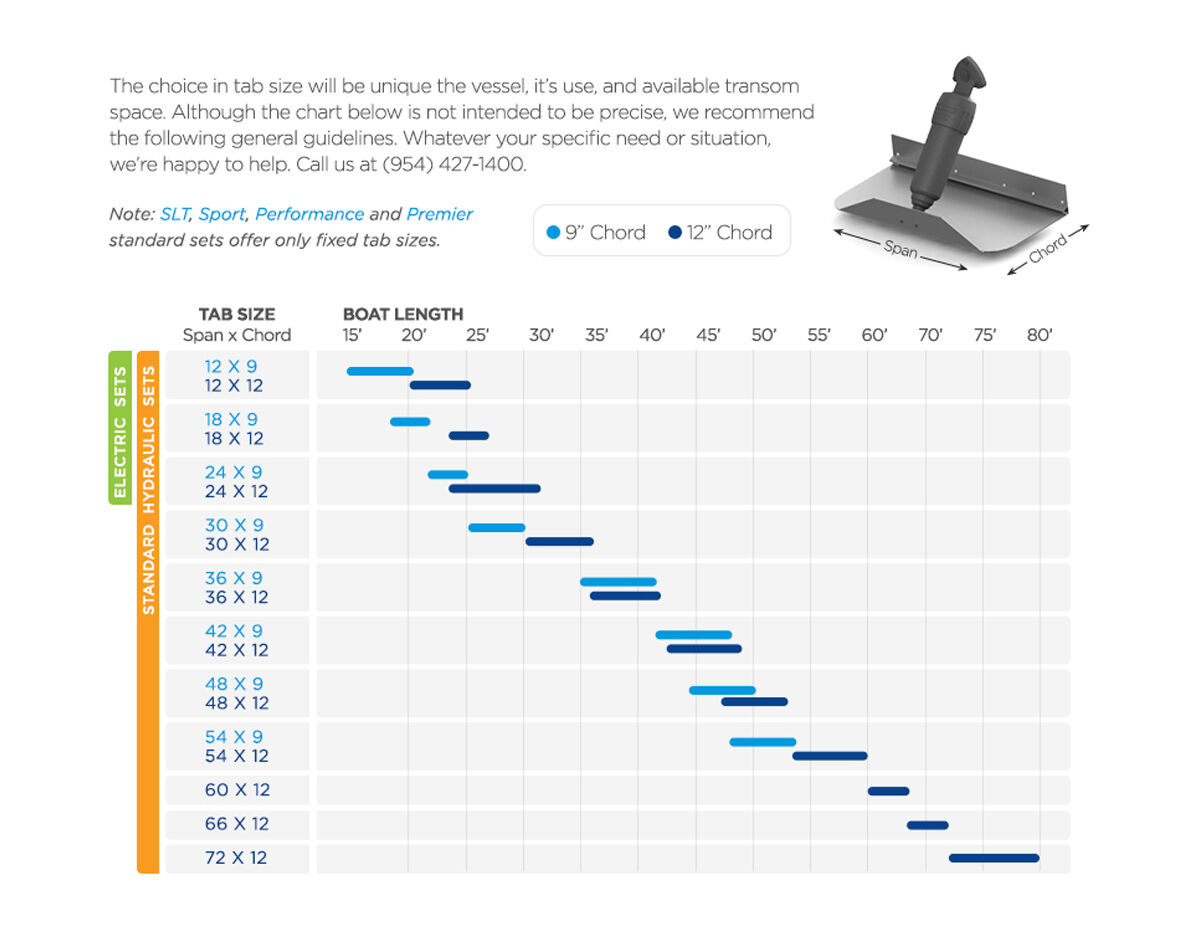

JPW SKU	Kit Type	Trim Tab Size (Span x Chord)	Actuator	Recommended Boat Size
JPW16208	M80OBI	8" x 10" (203 x 254mm)	Single	5 - 6m

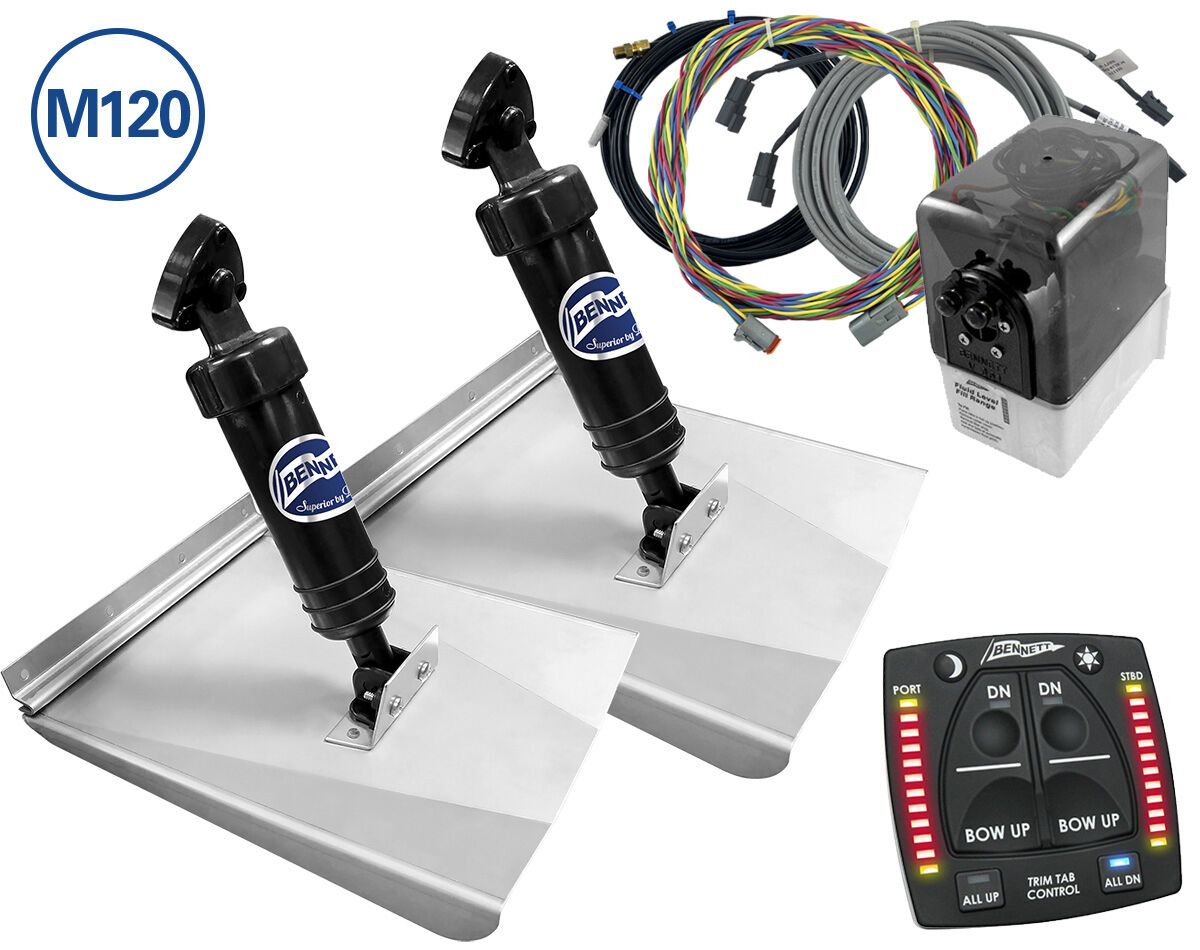

JPW16216	M120OBI	10" x 12" (254 x 305mm)	Single	6 - 7m

How Trim Tabs Work:

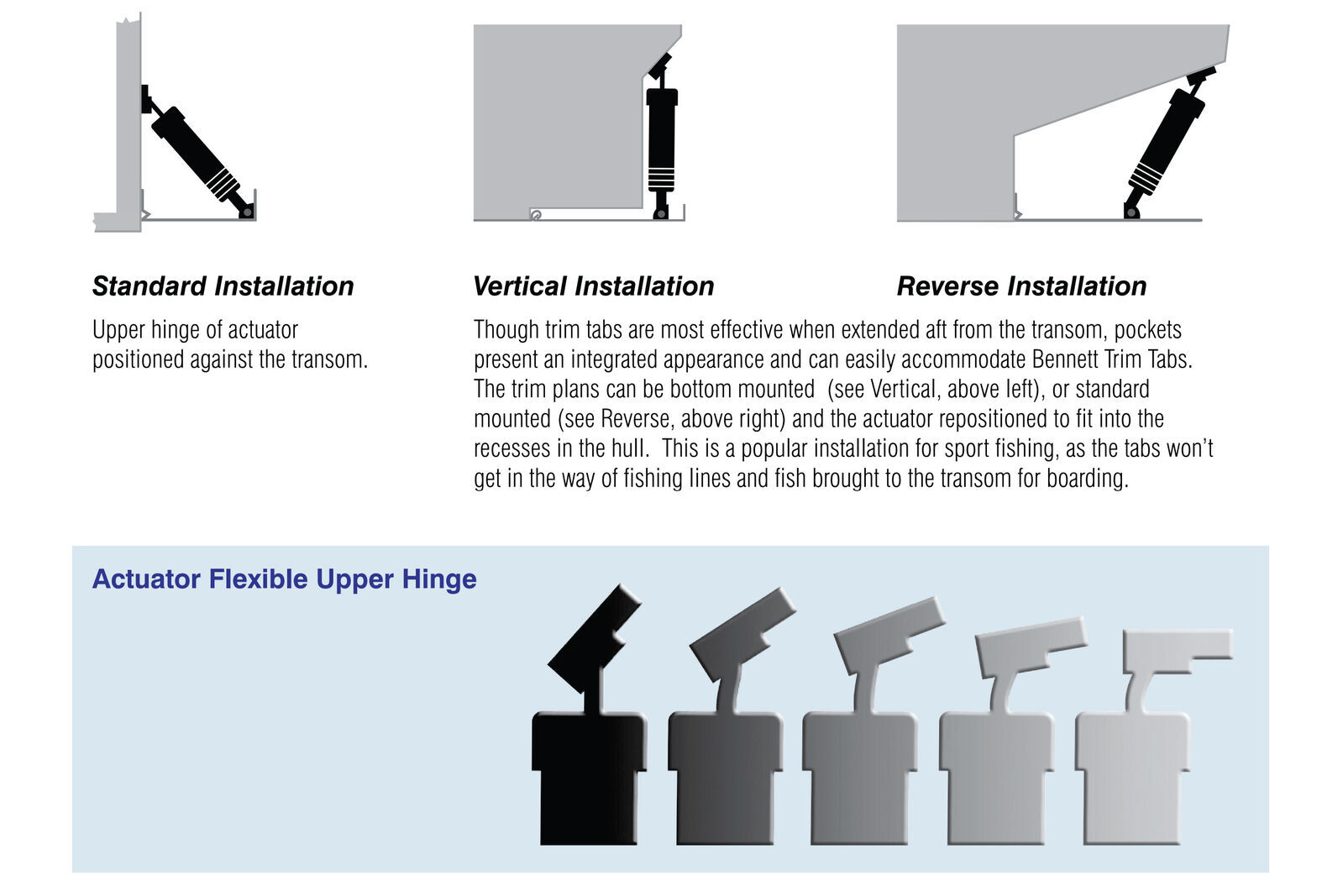

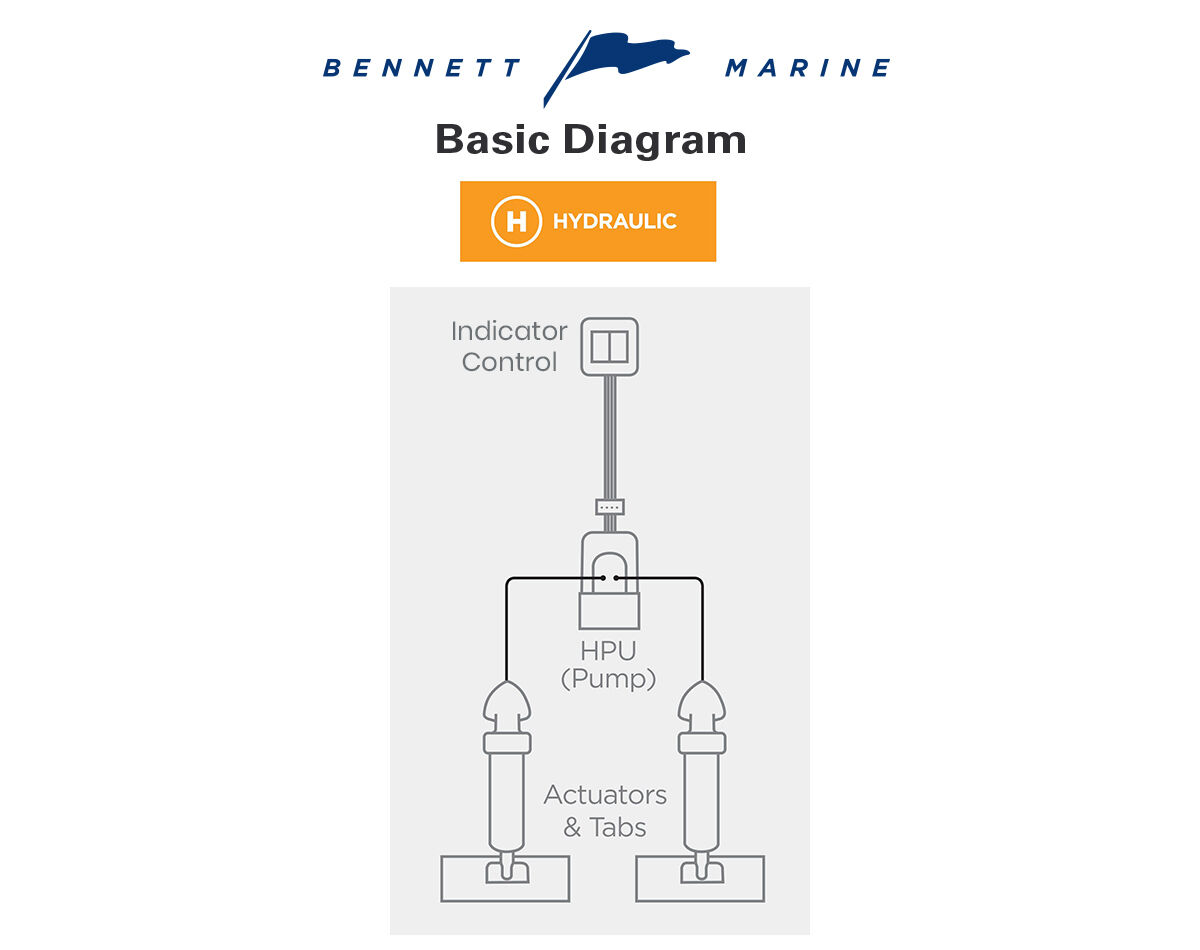

Bennett trim tabs most often attach to the bottom edge of the transom (although other mounting variations are available). When the helm control is pressed, the trim tabs move up or down. Water-force on the trim tab creates an upward pressure, raising the stern and lowering the bow. Properly sized trim tabs improve the performance of your boat in a wide range of weight, weather and water conditions.

In general, trim tabs operate in reverse of what you may think. The port (left) button controls the starboard (right) tab. Conversely, the starboard (right) button controls the port (left) tab. The helm control is wired so that all you have to do is press the control in the direction you want the bow to move. Don’t worry about which trim tab is moving. The proper use of Bennett Trim Tabs becomes second nature after a short time.

All installation and owner manuals are now provided in digital format. You can find these under the "Downloads" tab or via the Bennett Marine website: BennettTrimTabs.com/Install
