Description

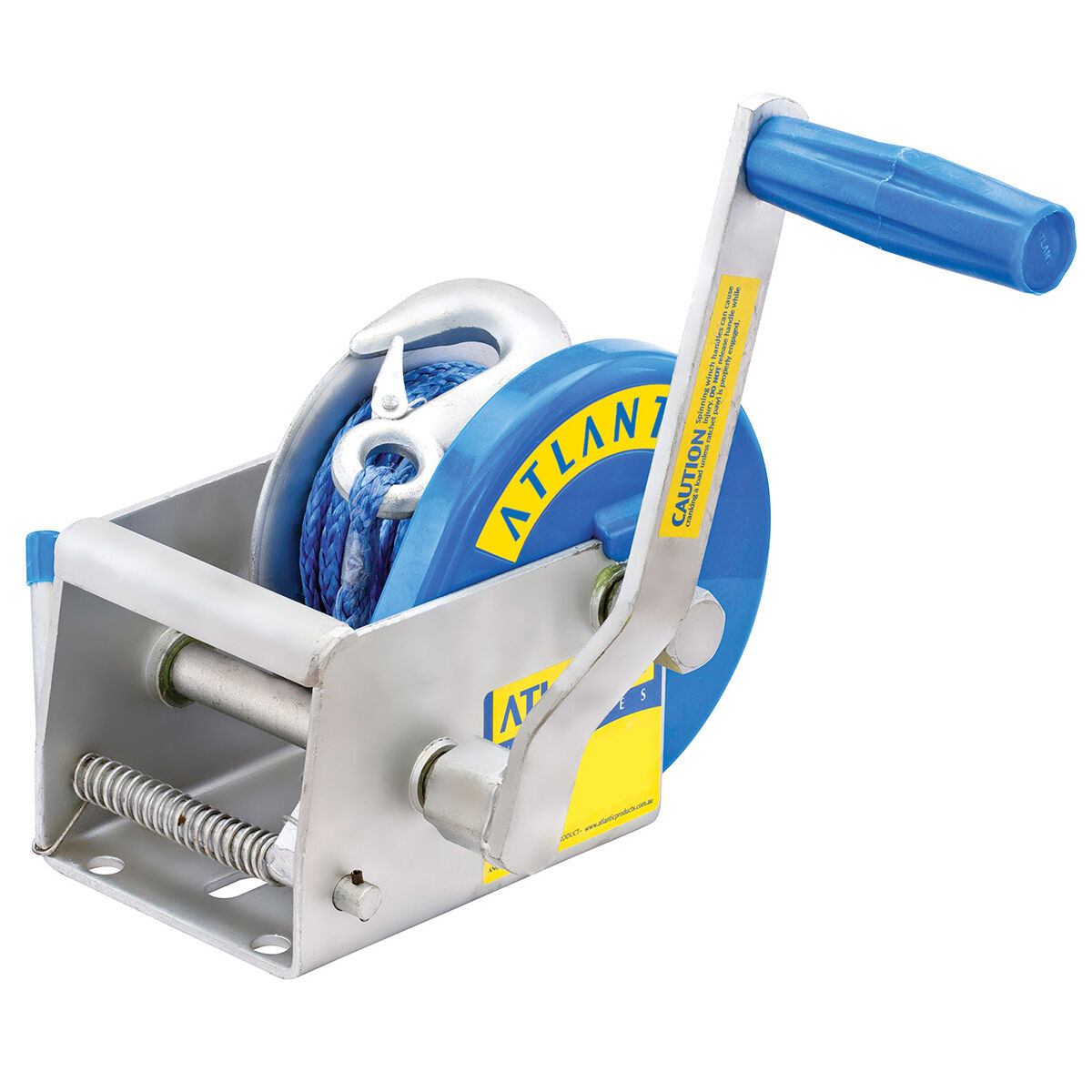

Manual marine trailer winches offering a cost-effective solution for those seeking dependable performance and easy operation for loading and unloading boats.

Their sturdy construction and low maintenance make them a practical choice for marine applications.

Perfect for boats up to 6m (20ft) in length.

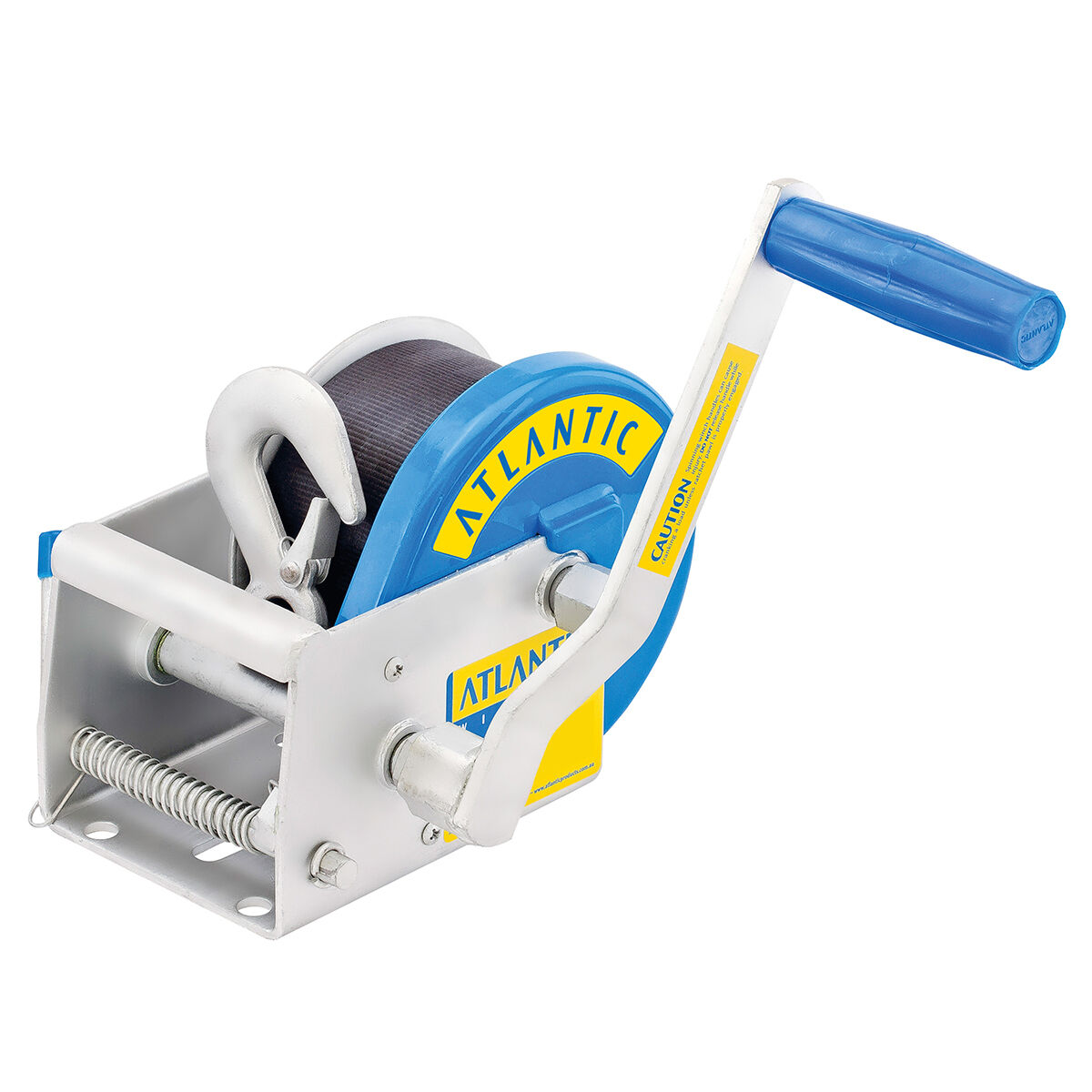

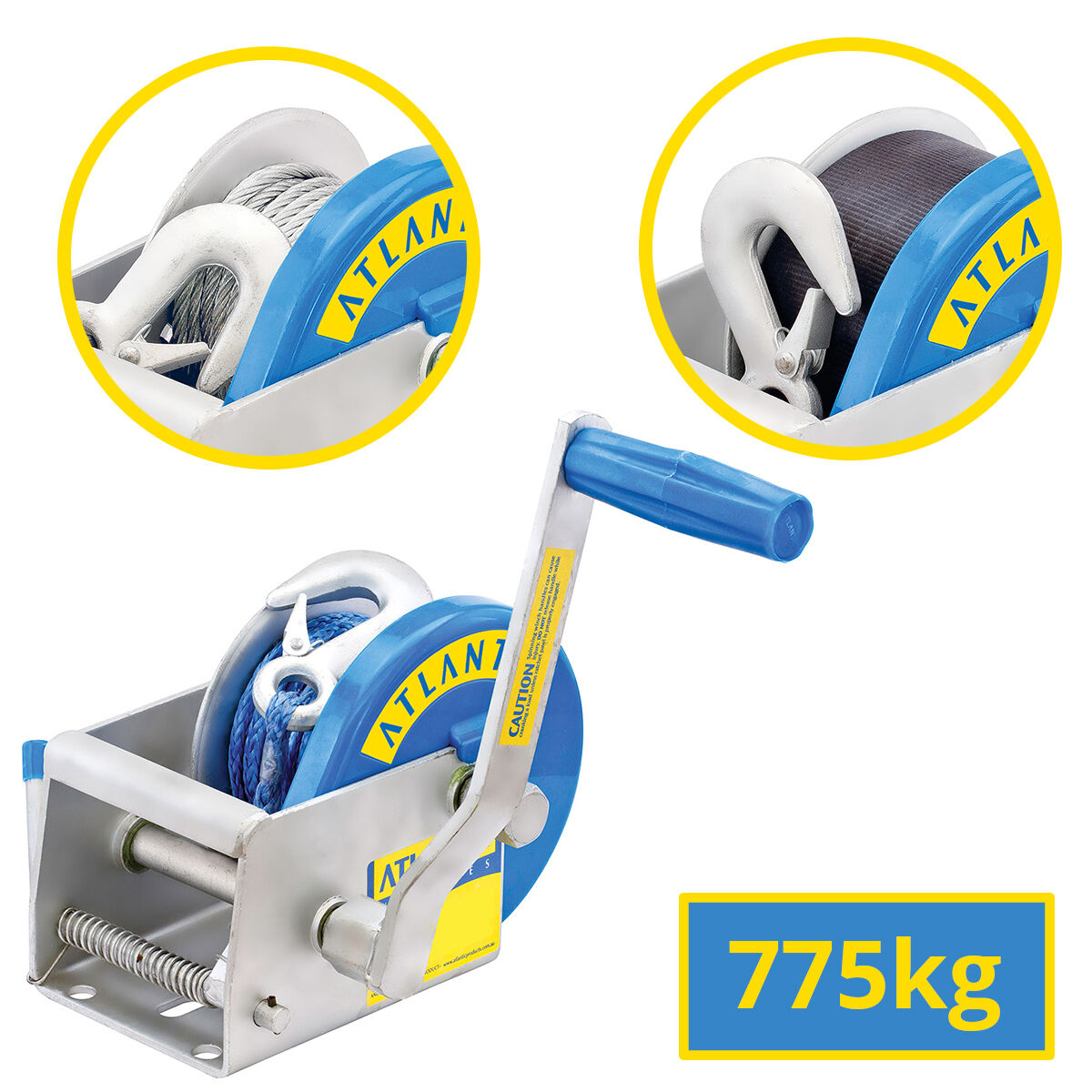

Available with Atlantic rope, webbing strap or cable.

Features:

775kg Capacity double gear winch
Heavy duty 4mm winch body
Axel grade steel
Machine-cut gears
Heavy duty lever pawl
Rust resistant Dacromet finish
Heat treated hardened steel bushes
Protective side cover
Removable handle
Tested by NATA accredited laboratory
Winch mounting bolts sold separately (see related products)

Also available in other capacities (550kg, 725kg, 1135kg or 1500kg) - see related products.

Part No:	JPW6799	JPW6804	JPW6809
MPN:	MW205R	MW206W	MW217C
Rope Type:	Atlantic Rope	Webbing Strap	Cable
Rope Length:	5mm x 7.5m	7.5m	5mm x 7.5m
Rope Max Length:	20m	8.5m	20m
Hook Type:	Snap hook	Snap hook	Snap hook
Unit Weight:	4.55kg	4.86kg	5.24kg
Capacity:	775kg (1700lb)
Gear Ratio:	5:1 / 1:1
Application:	Incline Pull
Ratchet Type:	Pawl Lever
Overall (W x H x D):	319 x 248 x 190.5
Base (W x D)	145 x 111
Drum Diameter:	50mm
Flange Diamter:	130mm
Drum Width:	50mm
