Description

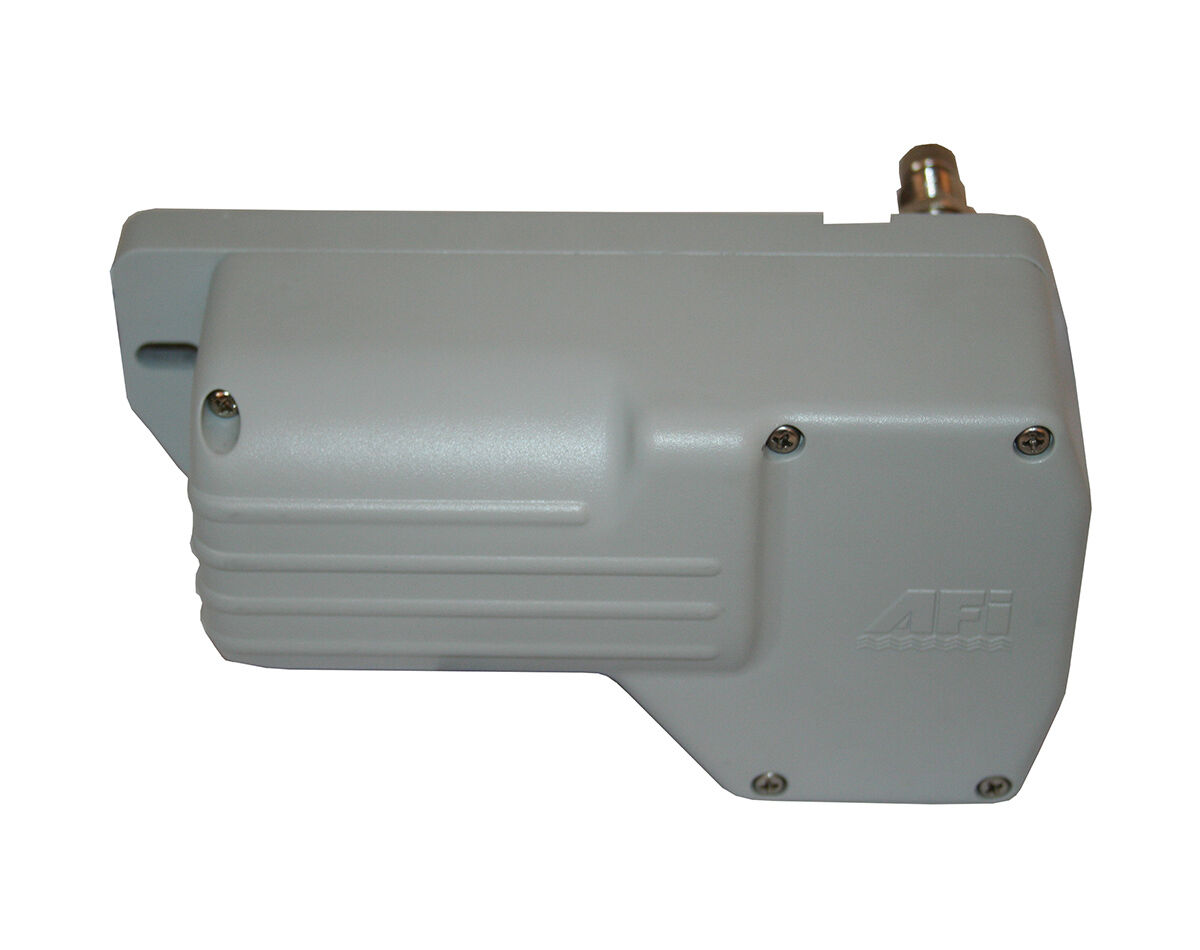

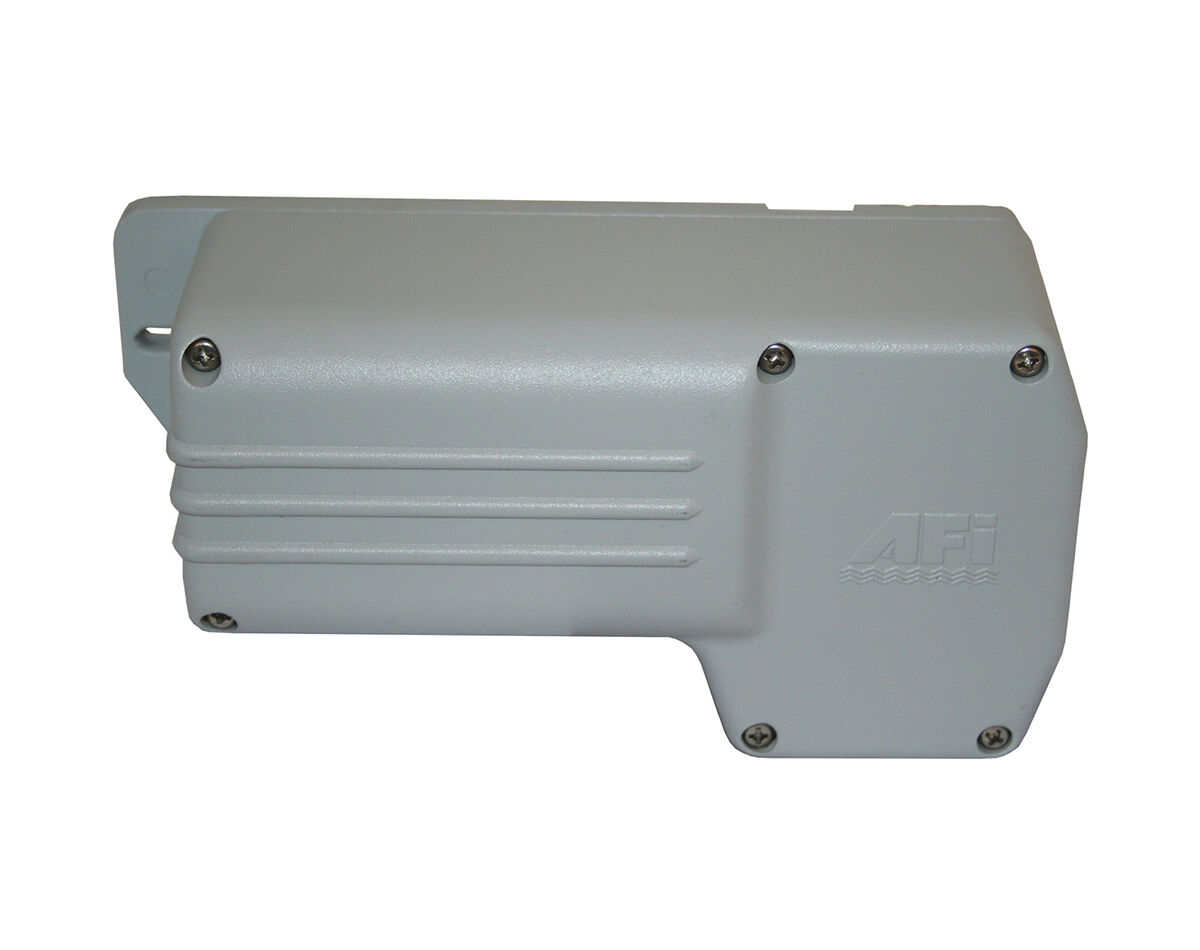

The AFI heavy duty wiper motor has a fully sealed grey powder coated aluminium waterproof housing.
Featuring factory pre-set sweep angles of 80 degree or 110 degree, with easy adjustment to 45 degree or 60 degree.
Two motor series available:
- 1.5 Series motor will power up to 500mm (20-inch) length arm and blade combinations.
- 2.5 Series motor will power up to 600mm (24-inch) length arm and blade combinations.
Features:
- Fully sealed grey powder coated aluminium waterproof housing

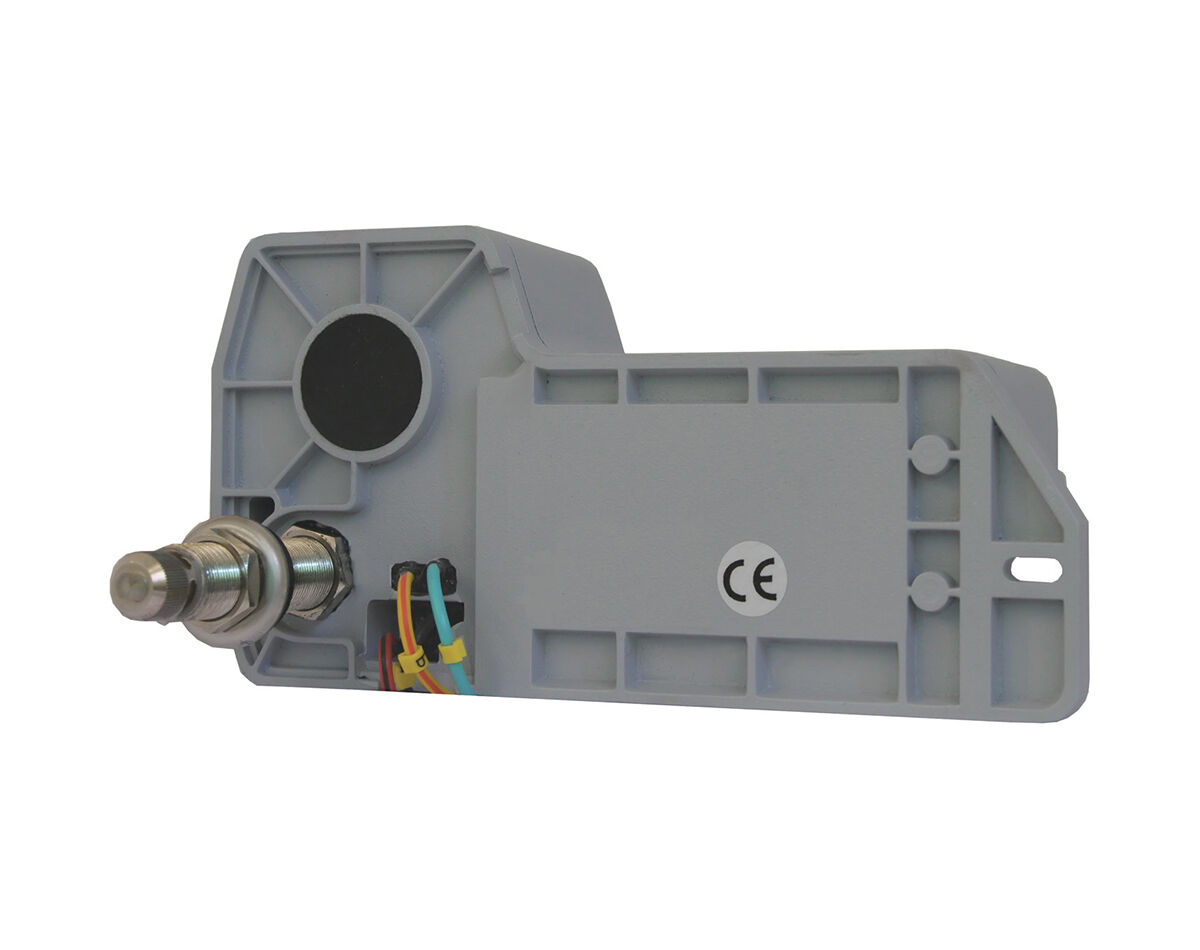

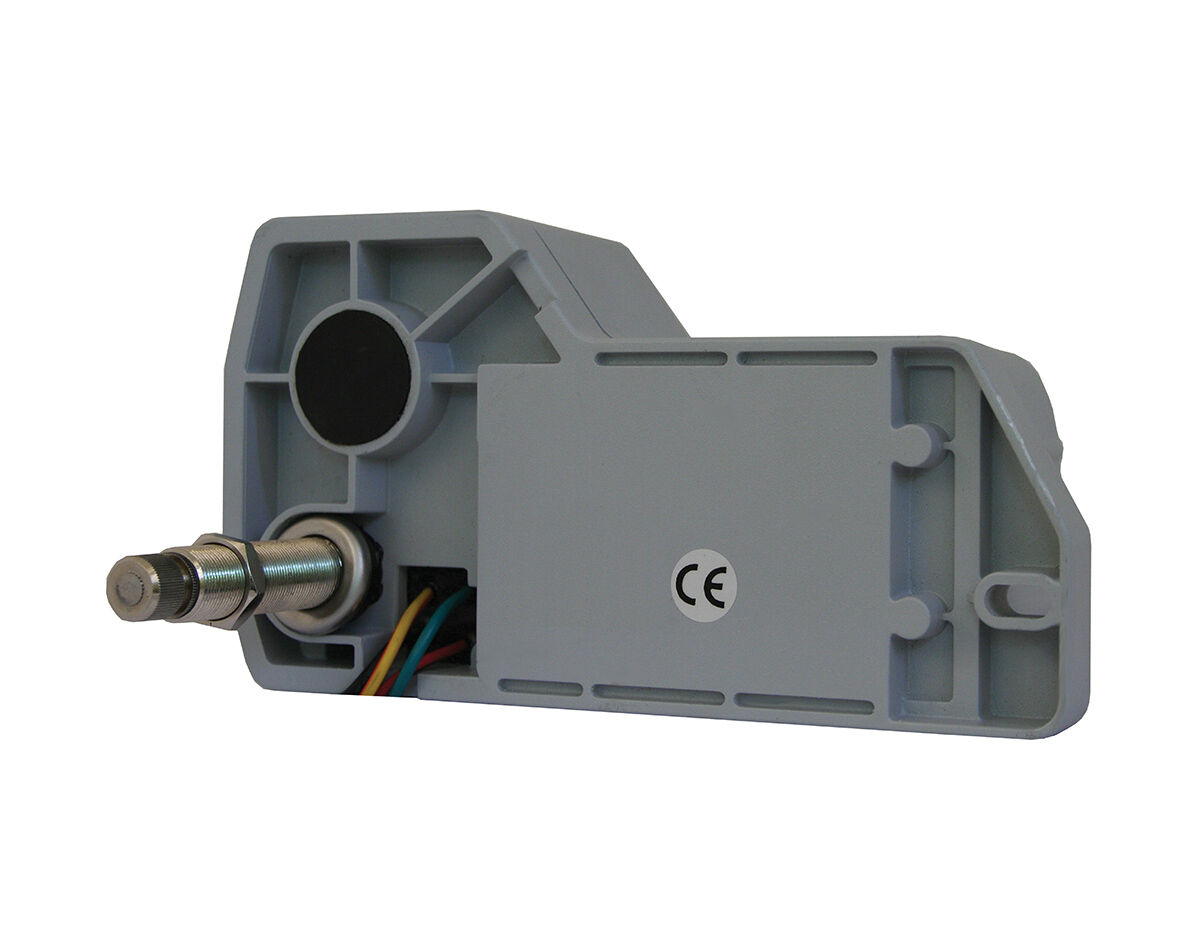

- Chrome plated solid brass knurled drive nut with brass and stainless steel drive shaft
- Two speed motor, can be wired for single speed
- Includes sealed 150mm length wires with fuse & fuse holder
- Coast to park feature with adjustable right or left self parking
- RF shielded circuitry
- Shaft length: 63mm (includes 13mm length of knurled arm fitting)
- Shaft diameter: 16mm
- Made in the USA
- 3 year warranty
- Replaces AFI 2000 motor
| Motor Series | 1.5 Series Motor | 2.5 Series Motor | |||
|---|---|---|---|---|---|
| Part Number | RWB5800 | RWB5801 | RWB5802 | RWB5803 | RWB5804 |
| Sweep Angle | 110 Degree | 80 Degree | 110 Degree | 80 Degree | 110 Degree |
| Voltage | 12V | 12V | 24V | ||
| Shaft Length | 63mm (plus knurled arm nut) | 63mm (plus knurled arm nut) | |||
| No Load Current | 0.8-1.2 amps | 1.6 amps | |||
| Stall Current | 10 amps | 10.5 amps | |||
| Stall Torque | 63kgf/cm 6.2Nm | 160 kgf/cm 15.7 Nm | |||

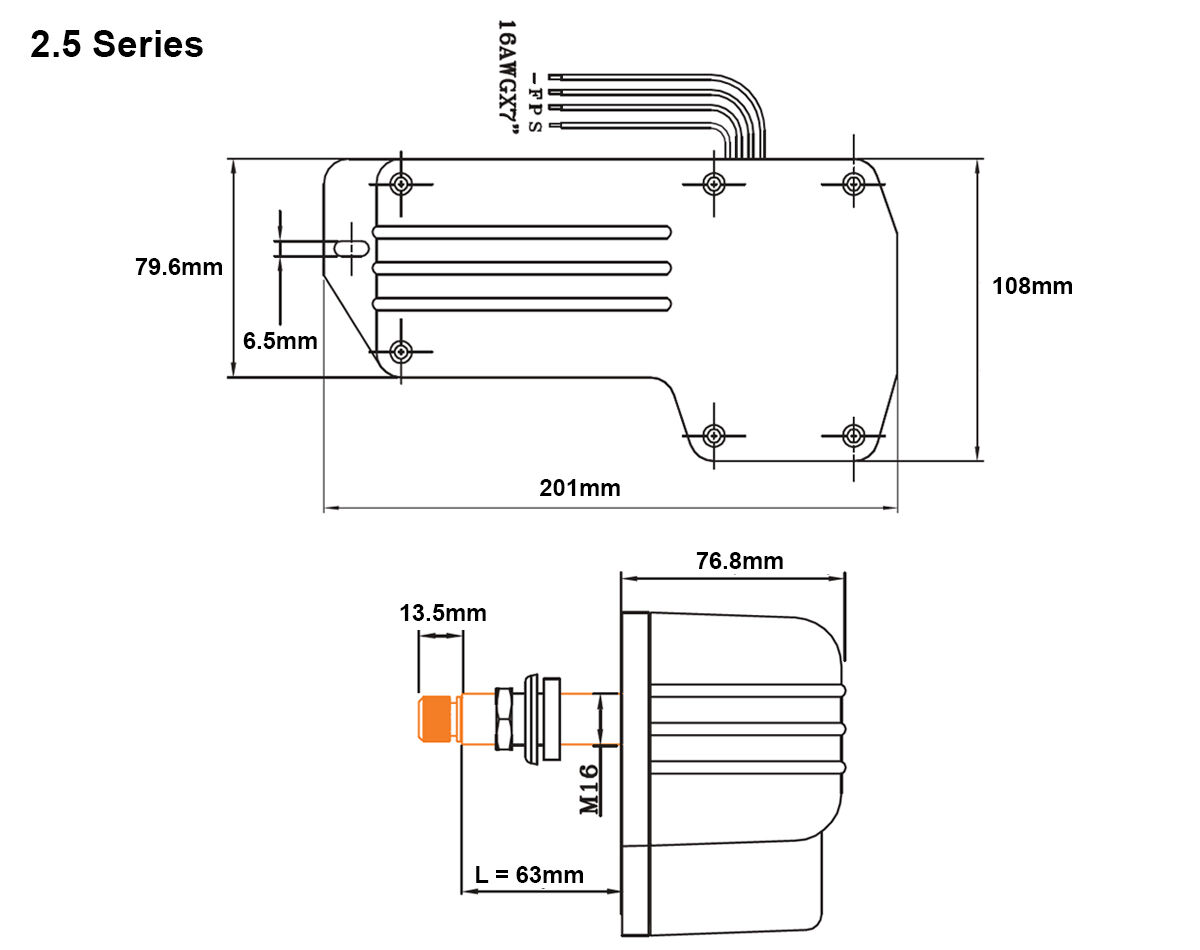

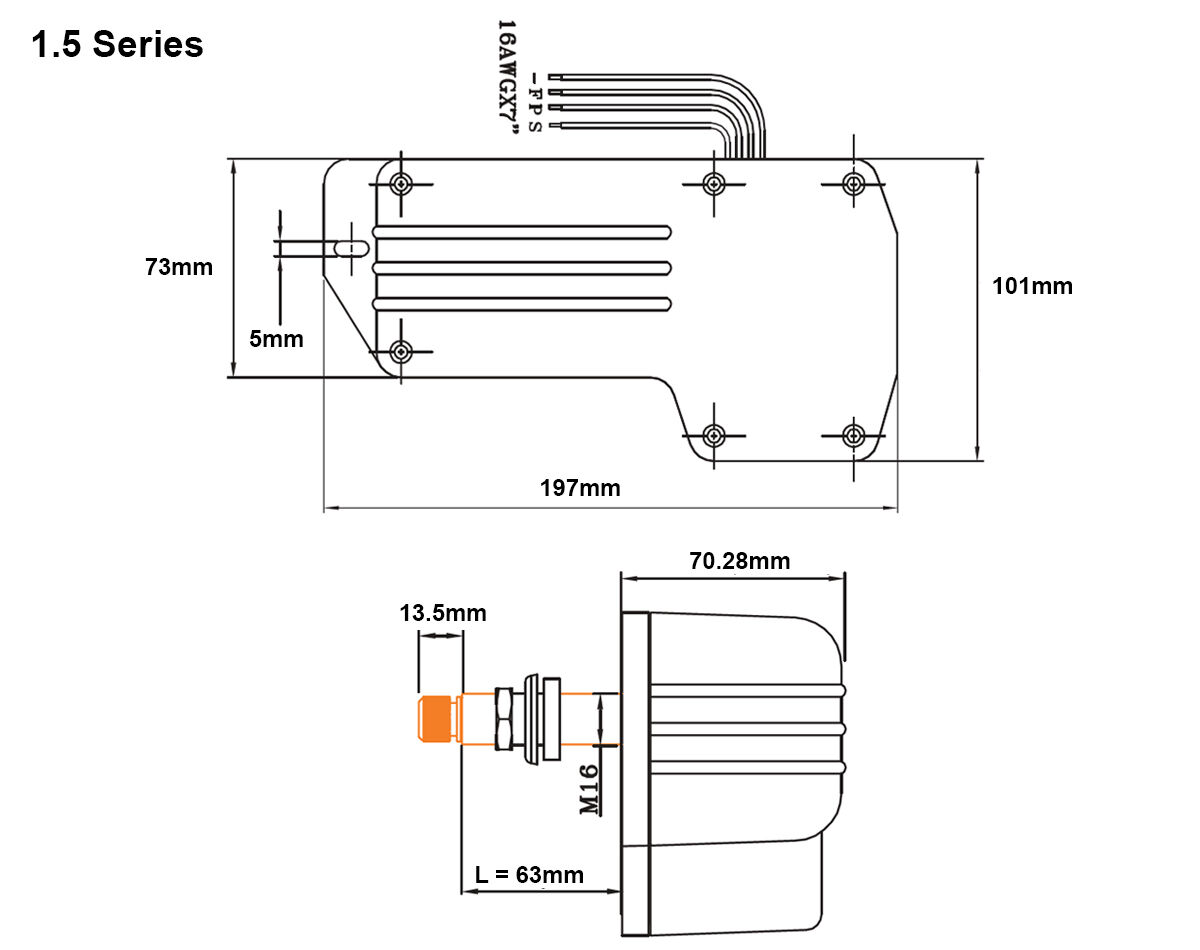

| Length | 197mm | 201mm | |||
| Width | 101mm | 108mm | |||
| Depth | 71mm + drive arm | 77mm + drive arm | |||
Note: Pantographic arms will only function properly with wiper motor sweep angles of 80 degree or less. Wiper motor angle can be easily adjusted.
Match with the following AFI wiper arms:
Match with the following AFI wiper blades:
Enquiry Form
AFI Heavy Duty Waterproof Wiper Motors
Enquiry Form
Specifications
| SKU | JPW-P-RWB5800 |
| Brand | AFI |
