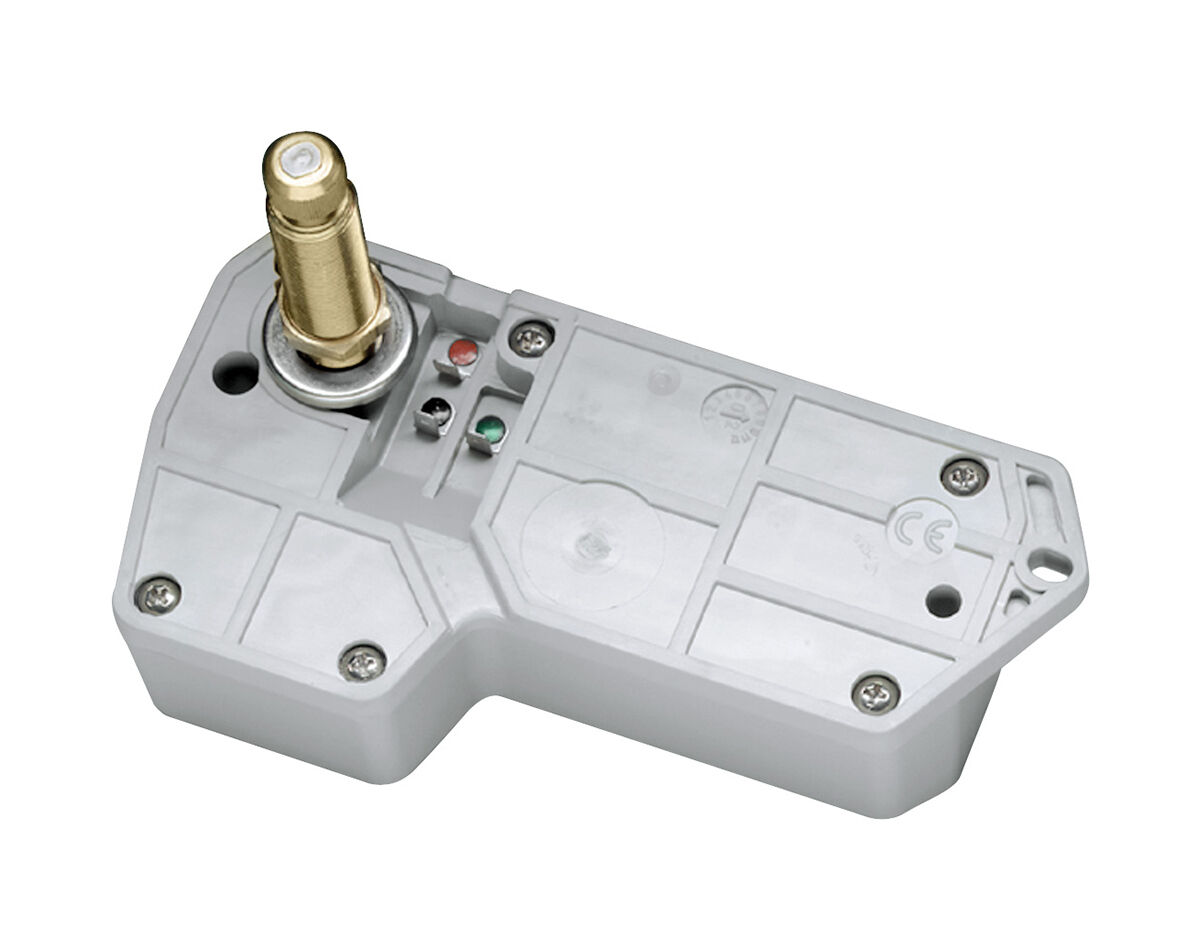

Write A ReviewThe AFI 1000 series windscreen wiper motors have a sweep angle up to 110 degrees and are available with either 40mm or 63mm drive shaft length.
The wiper housing is made from UV resistant, high-impact thermoplastics and is fully waterproof.
It powers 450mm long deluxe arm and blade combinations at sweep sets of 80 degree or less, or 400mm long deluxe arm and blade combinations at a sweep set of 110 degree.
The wiper runs on a 12v heavy-duty motor with an anti-rotation drive shaft. The drive shaft is knurled and the arm drive nut is made of solid brass.
Features:

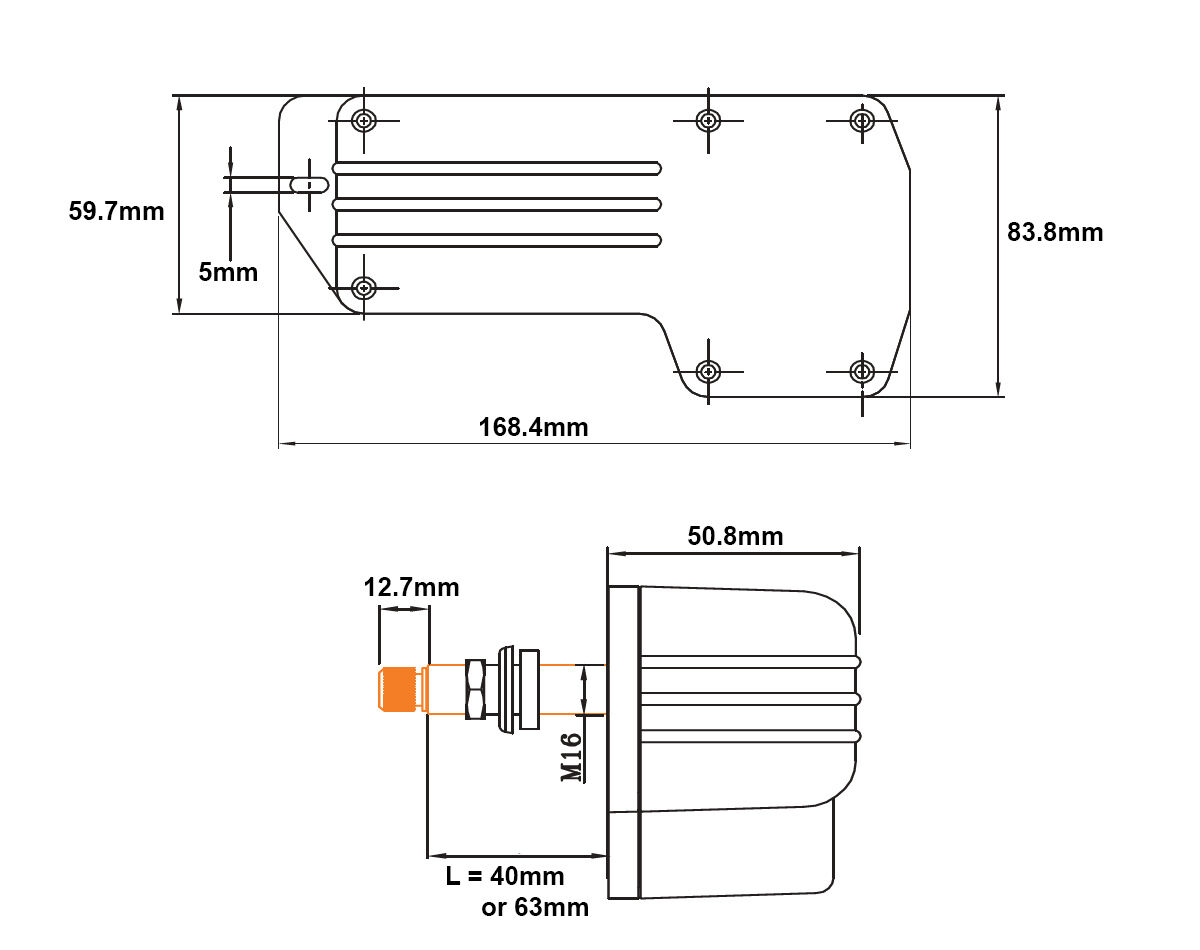

| Shaft Length | 40mm or 63mm (plus knurled arm nut) |
|---|---|
| Voltage | 12V |
| No Load Current | 0.8-1.2 amps |
| Stall Current | 10 amps |
| Stall Torque | 63kgf/cm 6.2Nm |
| Length | 169mm |
| Width | 84mm |
| Depth | 51mm + drive arm |
Note: Pantographic arms will only function properly with wiper motor sweep angles of 80 degree or less. Wiper motor angle can be easily adjusted.
Match with the following AFI wiper arms:
Match with the following AFI wiper blades:
| SKU | JPW-P-RWB5806 |
| Brand | AFI |
